Headliner Components

Headliner Components

Items
1:  E37R E37R Dome/Reading Lamps - Rear
2:  B160 Windshield Temperature and Inside Moisture Sensor B160 Windshield Temperature and Inside Moisture Sensor
3:  K77 Remote Control Door Lock Receiver K77 Remote Control Door Lock Receiver
4:  P14 Passenger Air Bag Disable Indicator P14 Passenger Airbag Disable Indicator
5:  E37F Dome/Reading Lamps - Front E37F Dome/Reading Lamps - Front
6:  S48B Multifunction Switch - Overhead Console S48B Multifunction Switch - Overhead Console
7:  S51 Telematics Button Assembly S51 Telematics Button Assembly
8:  S25 Garage Door Opener S25 Garage Door Opener (UG1)
9:  B24 Cellular Phone Microphone B24 Cellular Phone Microphone
10:  E31R Sunshade Mirror Lamp - Right E31R Sunshade Mirror Lamp - Right
11:  A10 Inside Rearview Mirror A10 Inside Rearview Mirror (DD8)
12:  E31L Sunshade Mirror Lamp - Left E31L Sunshade Mirror Lamp - Left

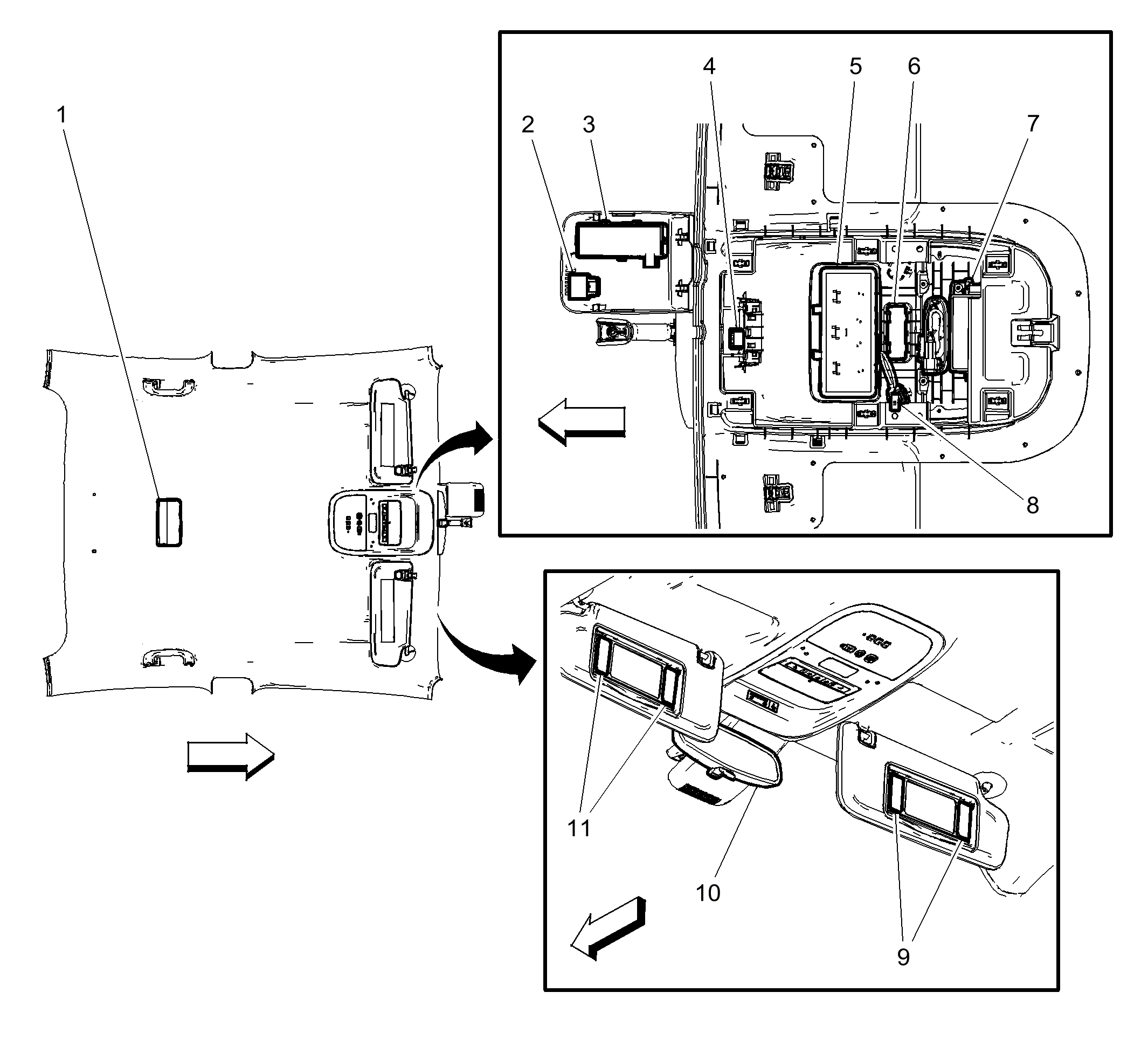

Fig 1: Headliner Components
GM2561463Courtesy of GENERAL MOTORS COMPANY
