Passive Start Wiring Schematics

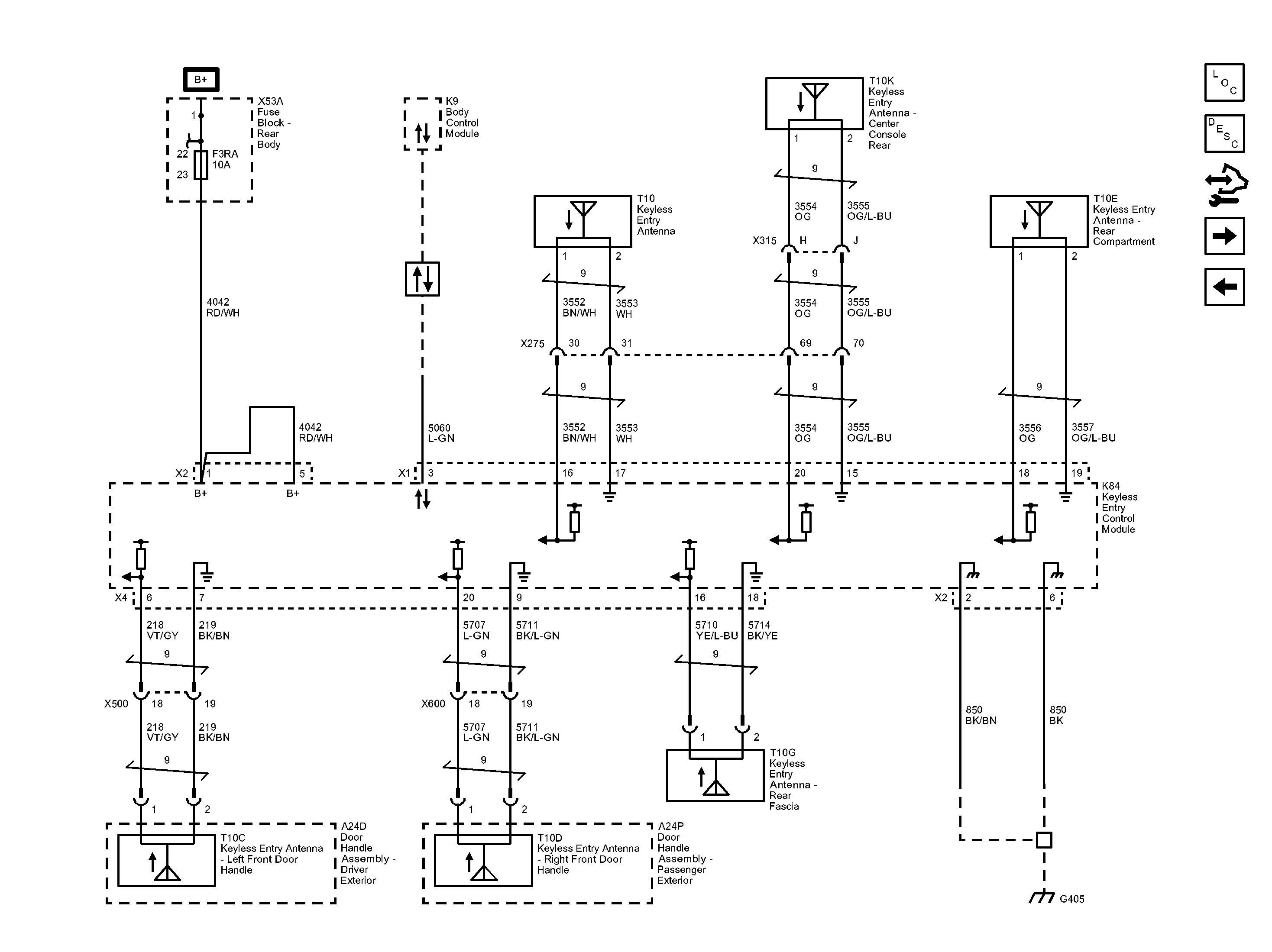

Fig 1: Passive Start Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
