Battery State of Charge Wiring Schematics

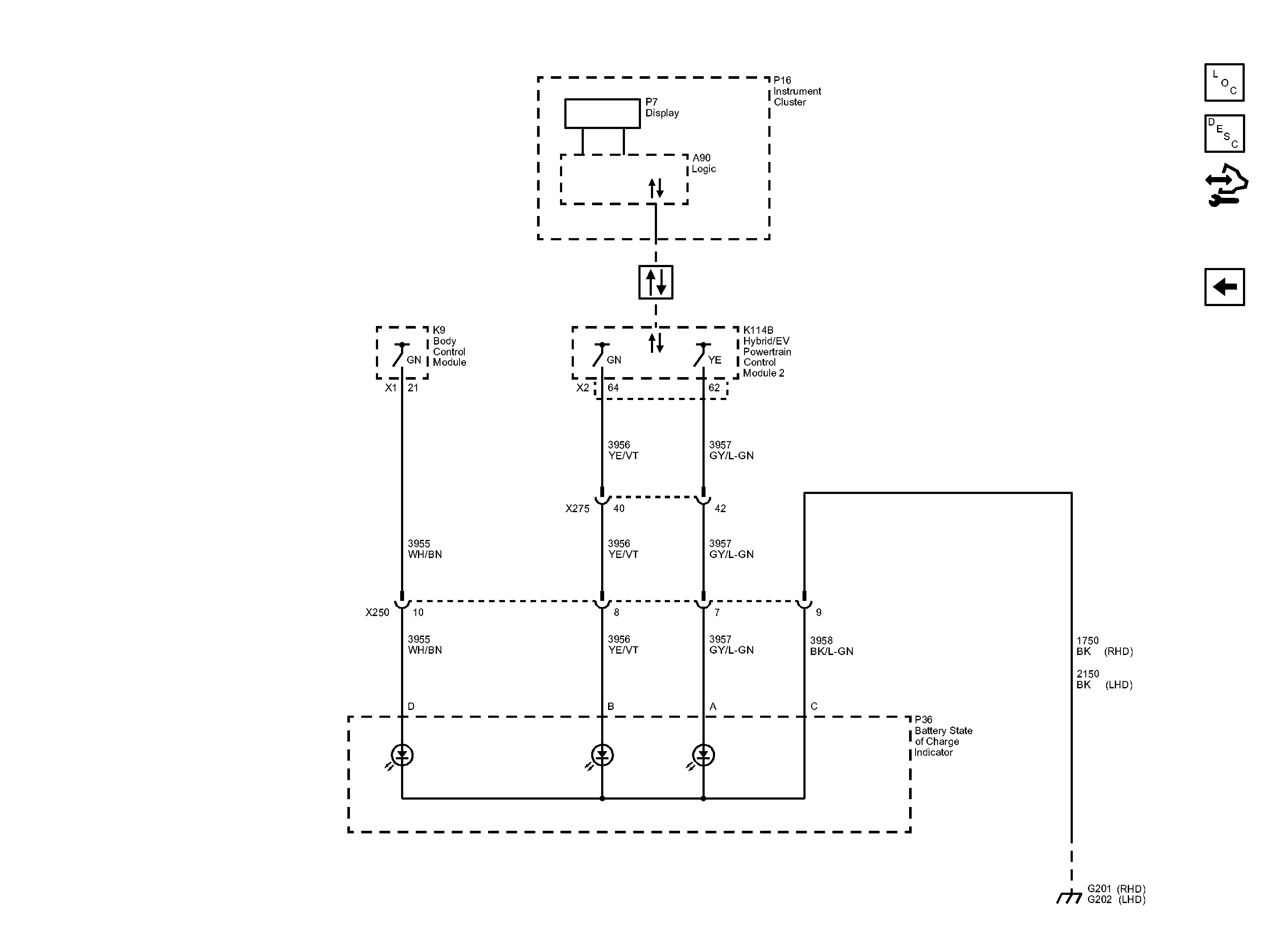

Fig 1: Battery State of Charge Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
