Drive Motor Generator Control Module Radiator Outlet Hose Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

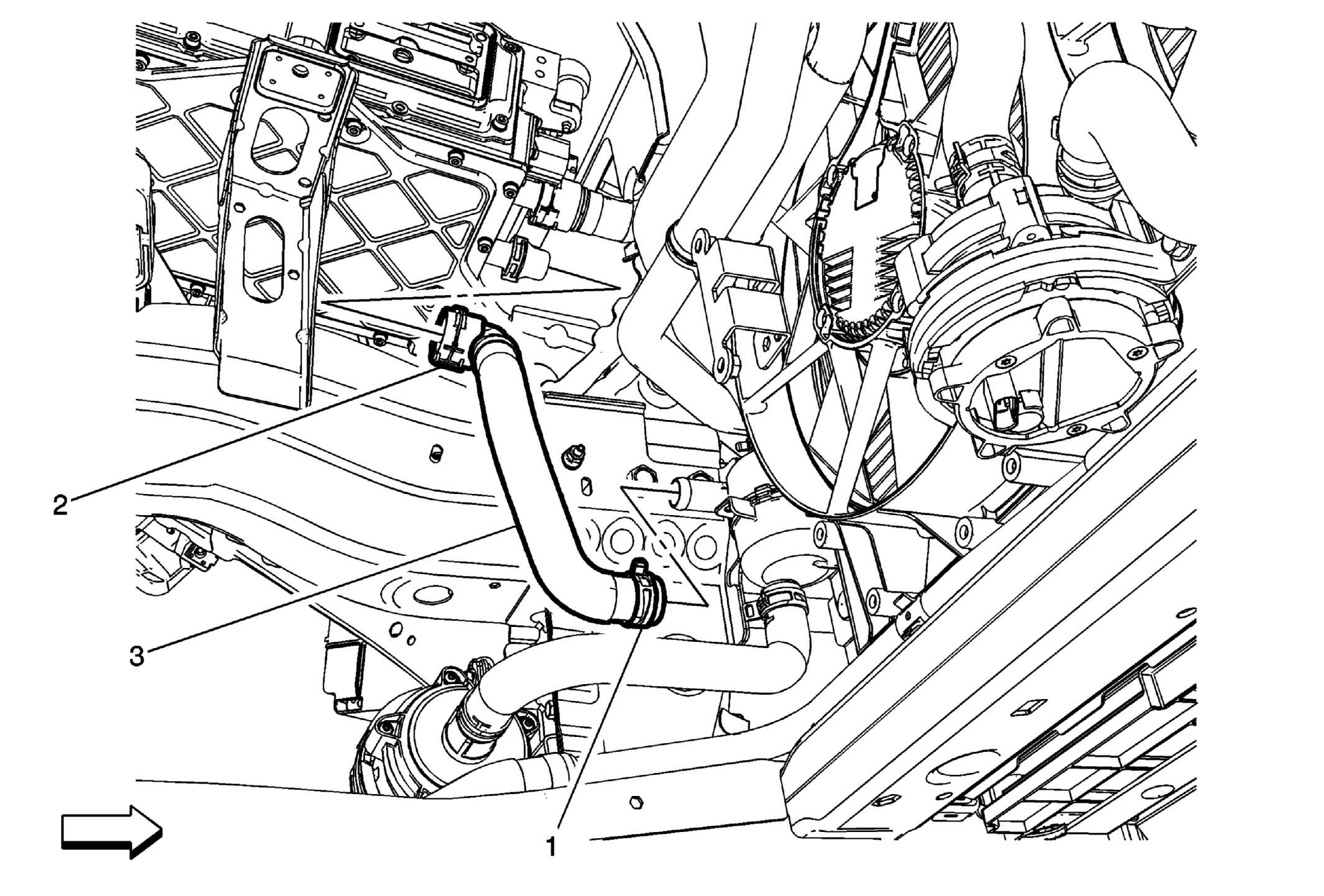

Fig 1: Drive Motor Generator Control Module Radiator Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling Remove the front wheelhouse front liner on the driver side. Refer to Front Wheelhouse Front Liner Replacement Remove the drive motor generator power inverter module cover. Refer to Drive Motor Generator Power Inverter Module Cover Replacement
1	Drive Motor Generator Conrtrol Module Radiator Outlet Hose Clamp Procedure Reposition the drive motor generator control module radiator outlet hose clamp using BO-38185 Hose Clamp Pliers Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Drive Motor Generator Conrtrol Module Radiator Outlet Hose Quick Connect Fitting
3	Drive Motor Generator Conrtrol Module Radiator Outlet Hose TIP: Replace corroded hose clamps and brackets.
