Manifold Absolute Pressure Sensor Replacement (LS7)

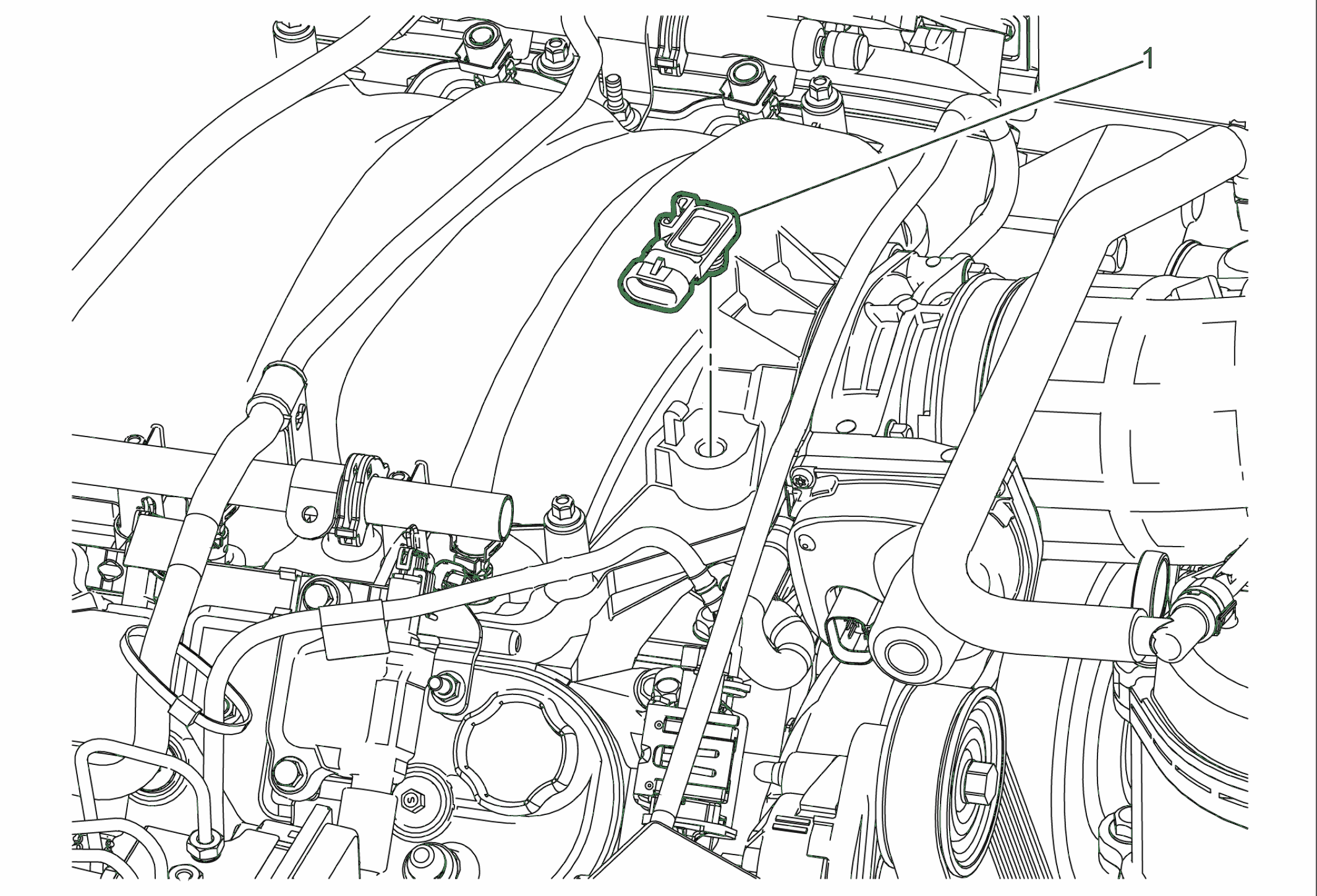

Fig 1: Manifold Absolute Pressure Sensor (LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right side intake manifold cover. Intake Manifold Cover Replacement (Right Side)
1	Manifold Absolute Pressure Sensor Procedure Disconnect the manifold absolute pressure sensor electrical connector.

Callout

Component Name

Preliminary Procedure

Manifold Absolute Pressure Sensor
Procedure
Disconnect the manifold absolute pressure sensor electrical connector.
