Power, Ground, and Subsystem References (1 of 3)

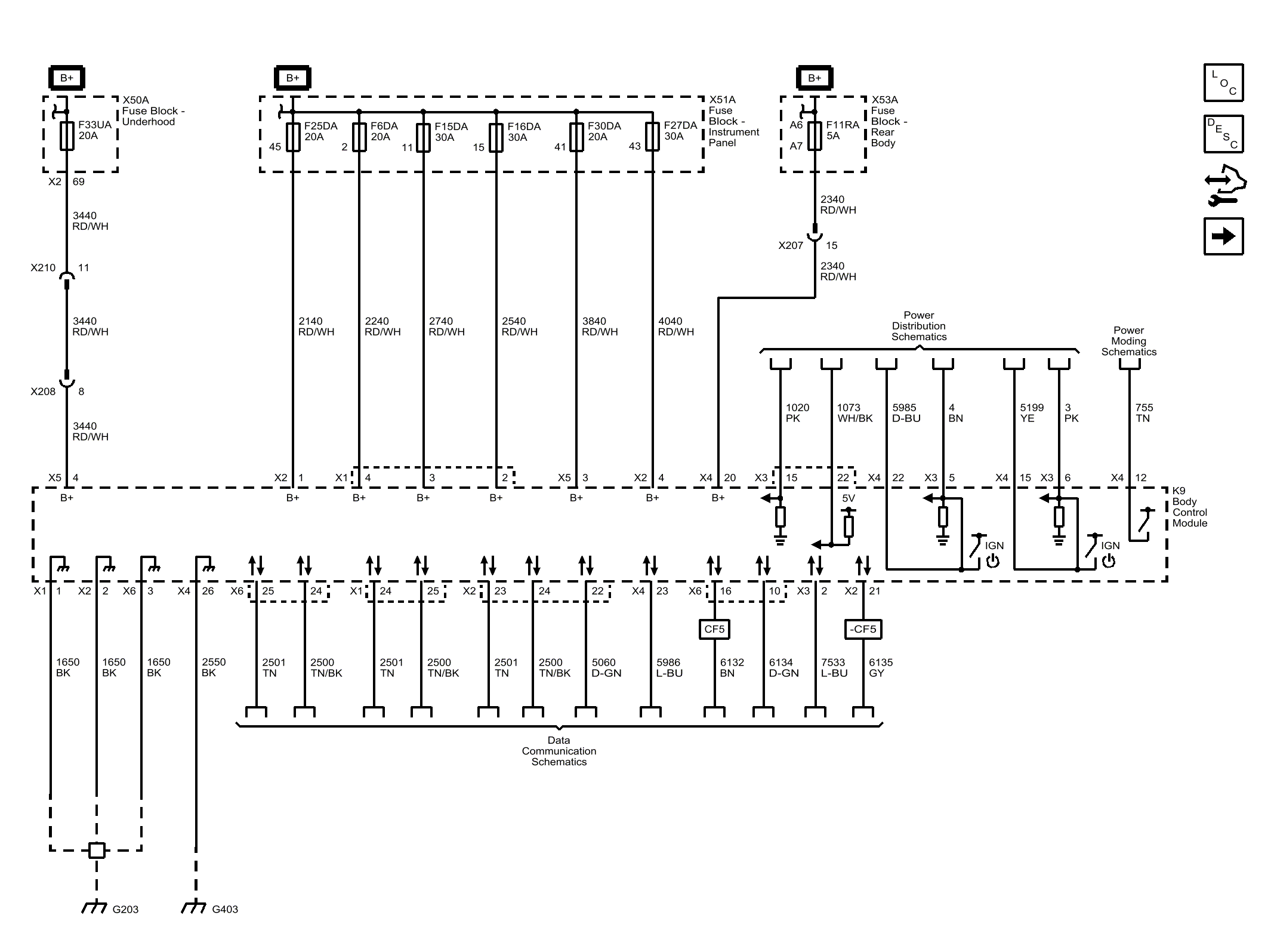

Fig 1: Power, Ground, and Subsystem References (1 of 3)
GM3338892Courtesy of GENERAL MOTORS COMPANY
