Rear Compartment Lid Release Switch Replacement

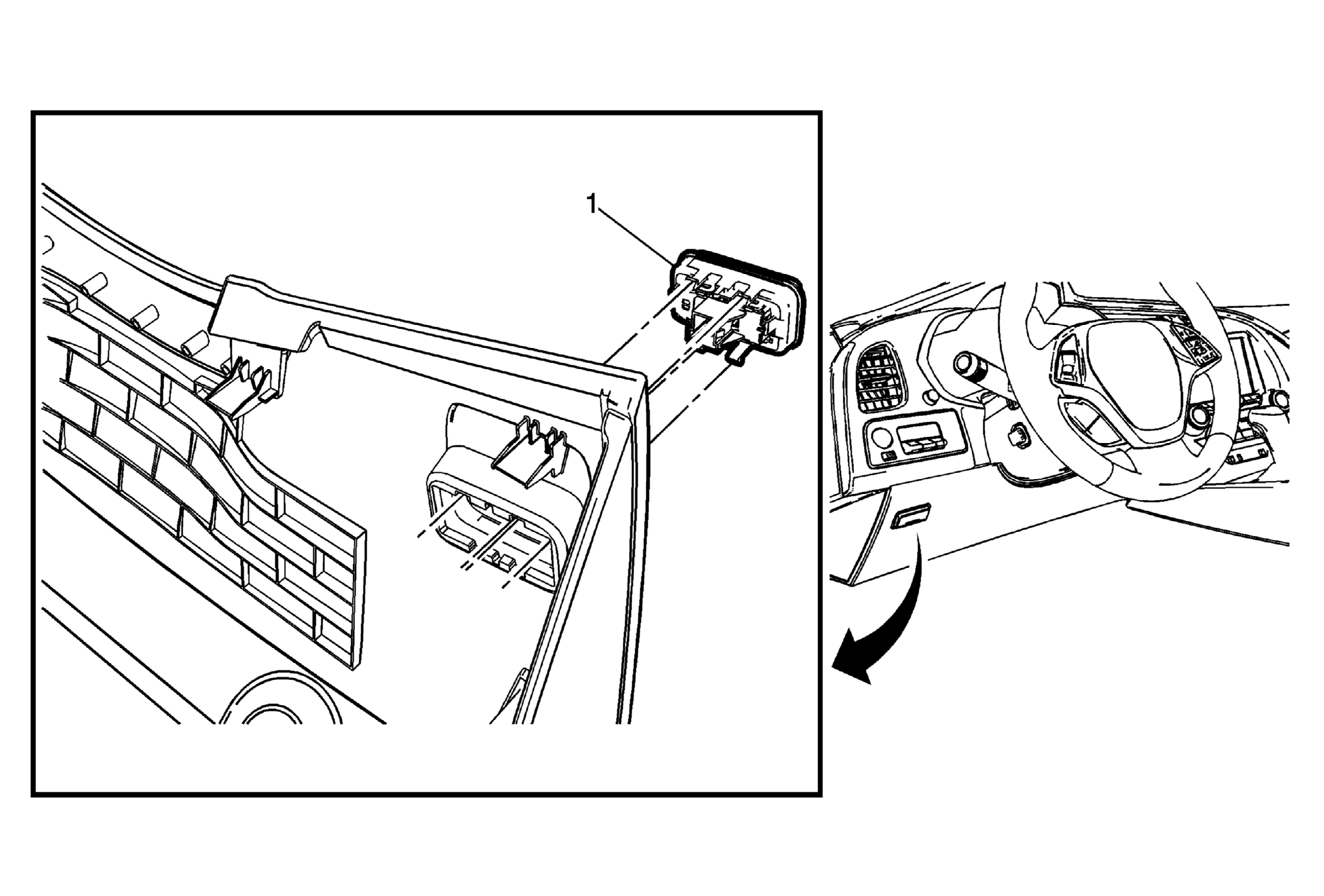

Fig 1: Rear Compartment Lid Release Switch
GM3358785Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Release Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Rear Compartment Lid Release Switch
Procedure
Using the appropriate tool, depress the tabs on the switch to remove.
