Front Side Door Window Switch Replacement

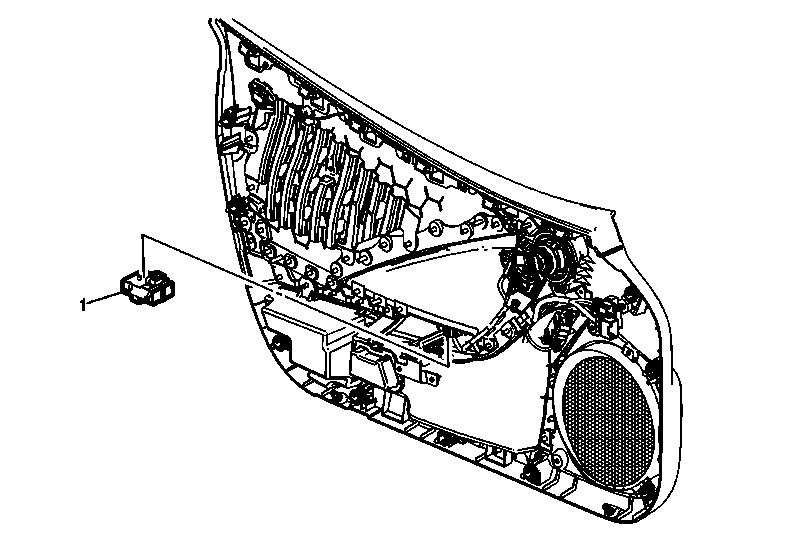

Fig 1: Front Side Door Window Switch
GM3409209Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the front side door trim- - passenger door. Refer to Front Side Door Trim Replacement (Driver Side) , Front Side Door Trim Replacement (Passenger Side) .
1 Front Side Door Window Switch Assembly

Procedure

  1. Using a plastic pry tool, gently pry on the sides to release the switch.
  2. Disconnect the electrical connectors.
  3. Refer to Control Module References for programming and set up procedures.
