Removal Procedure

    WARNING:

    If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.

    NOTE:

    Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim of the window.

  1. Remove the rear quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
    2. WARNING:

    If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.

  2. Cover to protect the following parts from broken glass:
    • Upper dash pad
    • Defroster outlets and A/C outlets
    • Seats and carpeting
    3. WARNING:

    Refer to Glass and Sheet Metal Handling Warning .

    NOTE:

    Keep the cutting edge of the tool against the window. Do this from inside the vehicle to protect the outer painted surface.

  3. Carefully cut around the inside of the quarter modular window to expose the urethane adhesive bead.

    Use care not to damage the retainers. If the retainer get damaged it will be necessary to use masking tape to tape it in place while curing.

  4. Keep the cutting edge of the tool against the inside of the window.

    This will allow the urethane adhesive to be separated from the window.

    • Leave a base of urethane on the pinch-weld flange.
    • The only suitable lubrication is clear water.
    • BO-39032  Stationary Glass Removal Tool, or equivalent in order to remove the window.

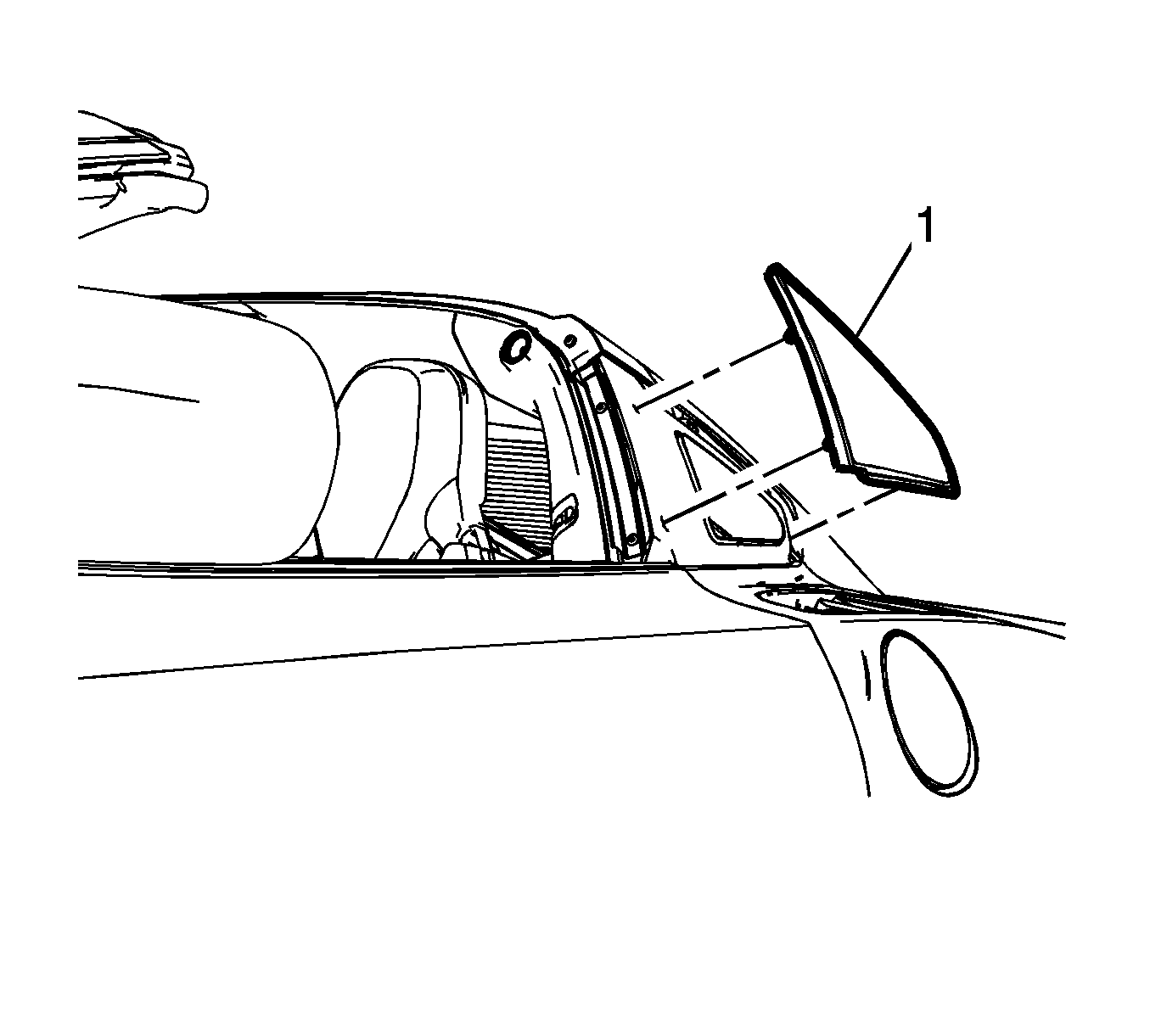

    5. Fig 1: Removing Window
    GM3287511Courtesy of GENERAL MOTORS COMPANY
  5. Remove the window (1) from the vehicle with an assistant and Do the following:
    1. Check that the retainers are still attached to the window (1) for installing, if reusing.
    2. Remove all mounds or loose pieces of urethane adhesive from the pinchweld area.
    3. If the original window (1) is being reused, remove all but approximately 2 mm (0.078 in) of the existing bead of urethane adhesive from the pinchweld flange surface, using a clean utility knife or razor blade scraper.
  6. Inspect for any of the following conditions in order to help prevent future breakage of the window:
    • High weld
    • Solder spots
    • Hardened sealer
    • Any other obstruction or irregularity in the pinchweld flange
    7. NOTE:

    If corrosion of the pinchweld flange is present or if sheet metal repairs or replacements are required, the pinchweld flange must be refinished in order to restore the bonding area strength. If paint repairs are required, mask the flange bonding area prior to applying the color coat in order to provide a clean primer only surface. Materials such as BASF DE15®, DuPont 2610®, Sherwin-Williams PSE 4600 and NP70® and Martin-Semour 5120 and 5130® PPG DP90LF SPIES/HECKER 3688/8590 - 3688/5150 - 4070/5090 STANDOX 11158/13320 - 14653/14980 products are approved for this application.

  7. After repairing the opening as indicated, perform the following steps:
    1. Remove all traces of broken glass from the outer cowl panel, seats, floor and defroster ducts.
    2. Clean around the edge of the inside surface of the window with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
