Communication Center Call Switch Replacement

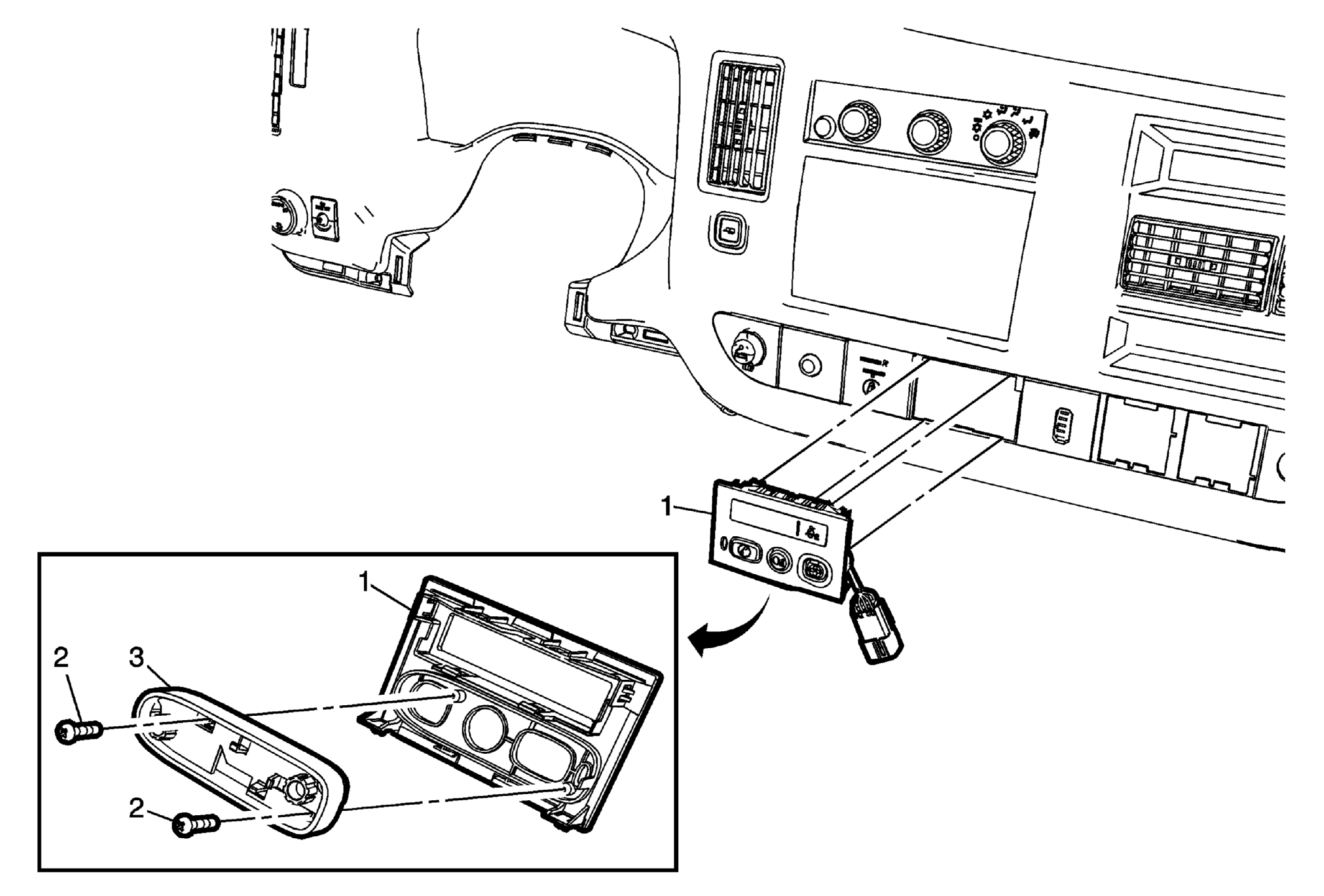

Fig 1: Communication Center Call Switch
GM2532816Courtesy of GENERAL MOTORS COMPANY
Communication Center Call Switch Replacement

Callout Component Name
1 Trim Plate Bezel
2 Communication Center Call Switch Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .
3 Communication Center Call Switch
Procedure
Disconnect electrical connector.
