USB Receptacle Replacement

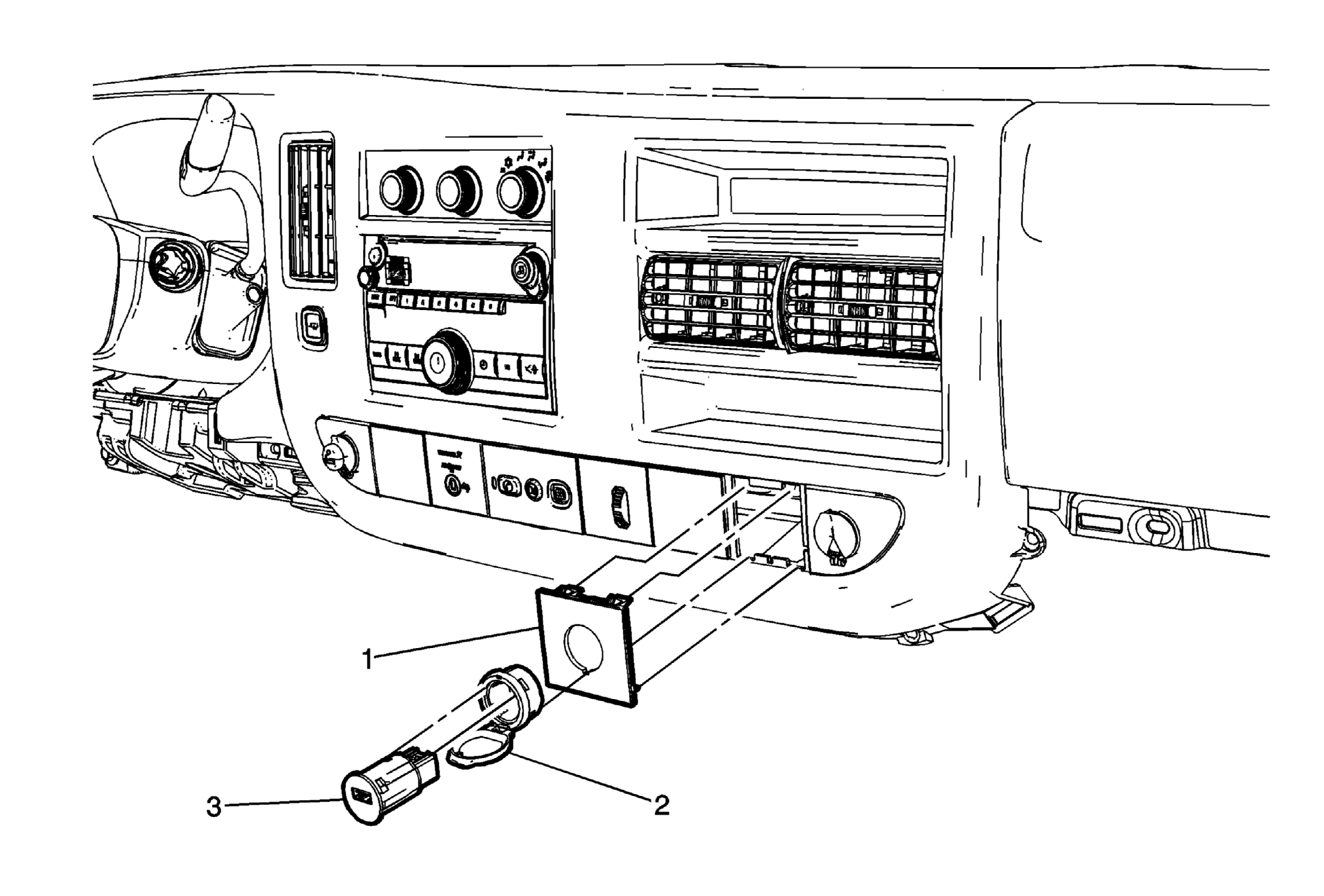

Fig 1: USB Receptacle
GM3216742Courtesy of GENERAL MOTORS COMPANY
USB Receptacle Replacement

Callout Component Name
1 Trim Plate Bezel
2 USB Receptacle Cover
3 USB Receptacle
Procedure
Disconnect electrical connector.
