High Speed GMLAN (Gas)

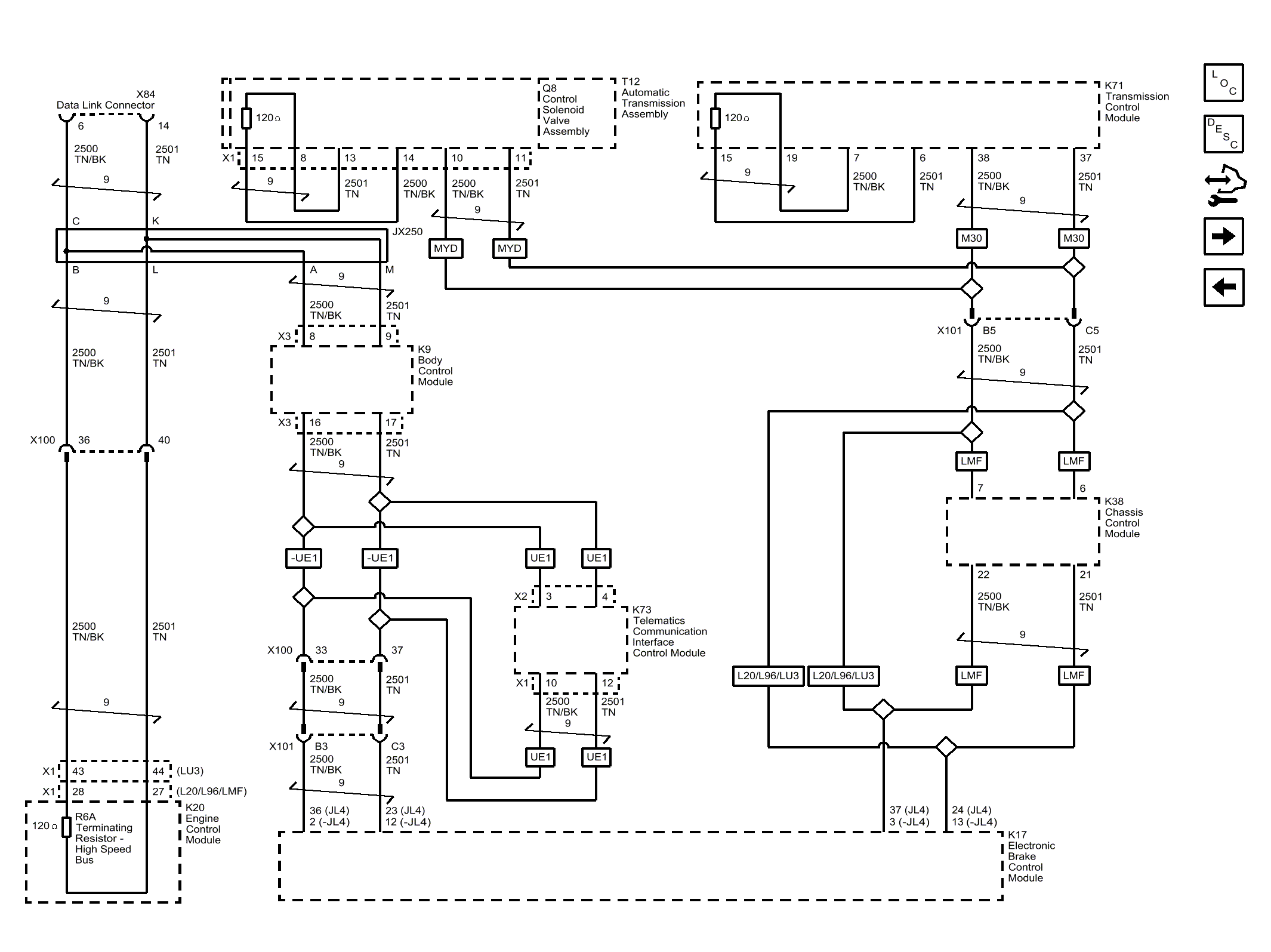

Fig 1: High Speed GMLAN (Gas) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
