Front Side Door Window Module Replacement
Courtesy of GENERAL MOTORS COMPANY Front Side Door Window Module Replacement

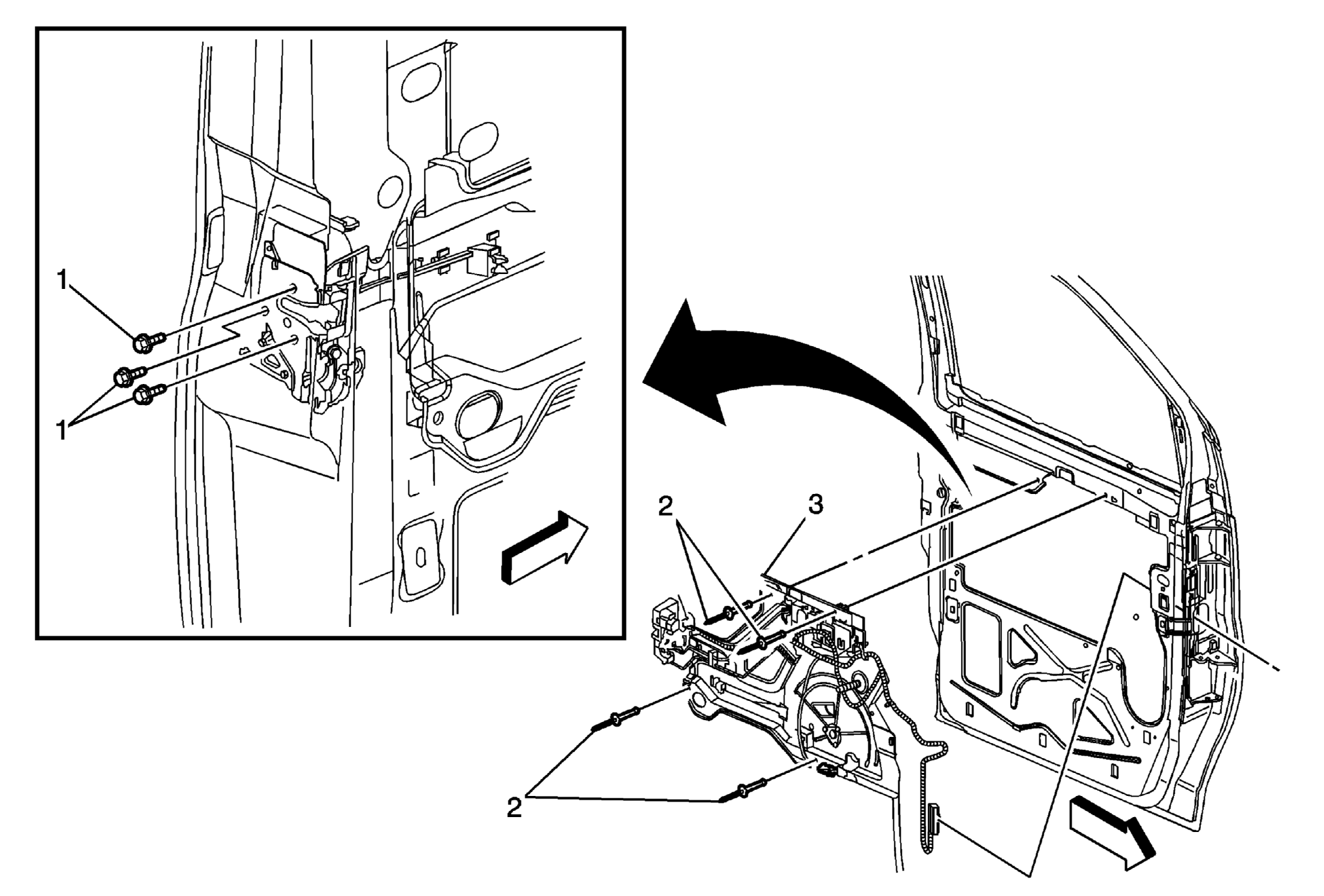

| Callout |
Component Name |
|
Preliminary Procedures
- Position the front side door window as needed for service.
- Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement
.
- Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement
.
- Remove the nuts from the front side door window sash. Refer to Front Side Door Window Replacement .
|
| 1 |
Front Side Door Lock Screw (Qty: 3)
Procedure
- The front side door lock and lock rods stay with the regulator module.
- Disconnect the electrical connector, located in the front side door conduit.
Tighten
10 N.m (89 lb in) |
| 2 |
Front Side Door Window Regulator Module Rivet (Qty: 5) Procedure
- Remove the center of the rivets in the front side door window regulator module using a center punch.
- Drill out the front side door window regulator module rivets, use equivalent rivets when install.
|
| 3 |
Front Side Door Window Regulator Module Procedure
- Slide the front side door window regulator lower roller out of the lower sash by sliding it forward with the module.
- Lift upward and pull rearward to release the front side door window regulator module from the door.
|
