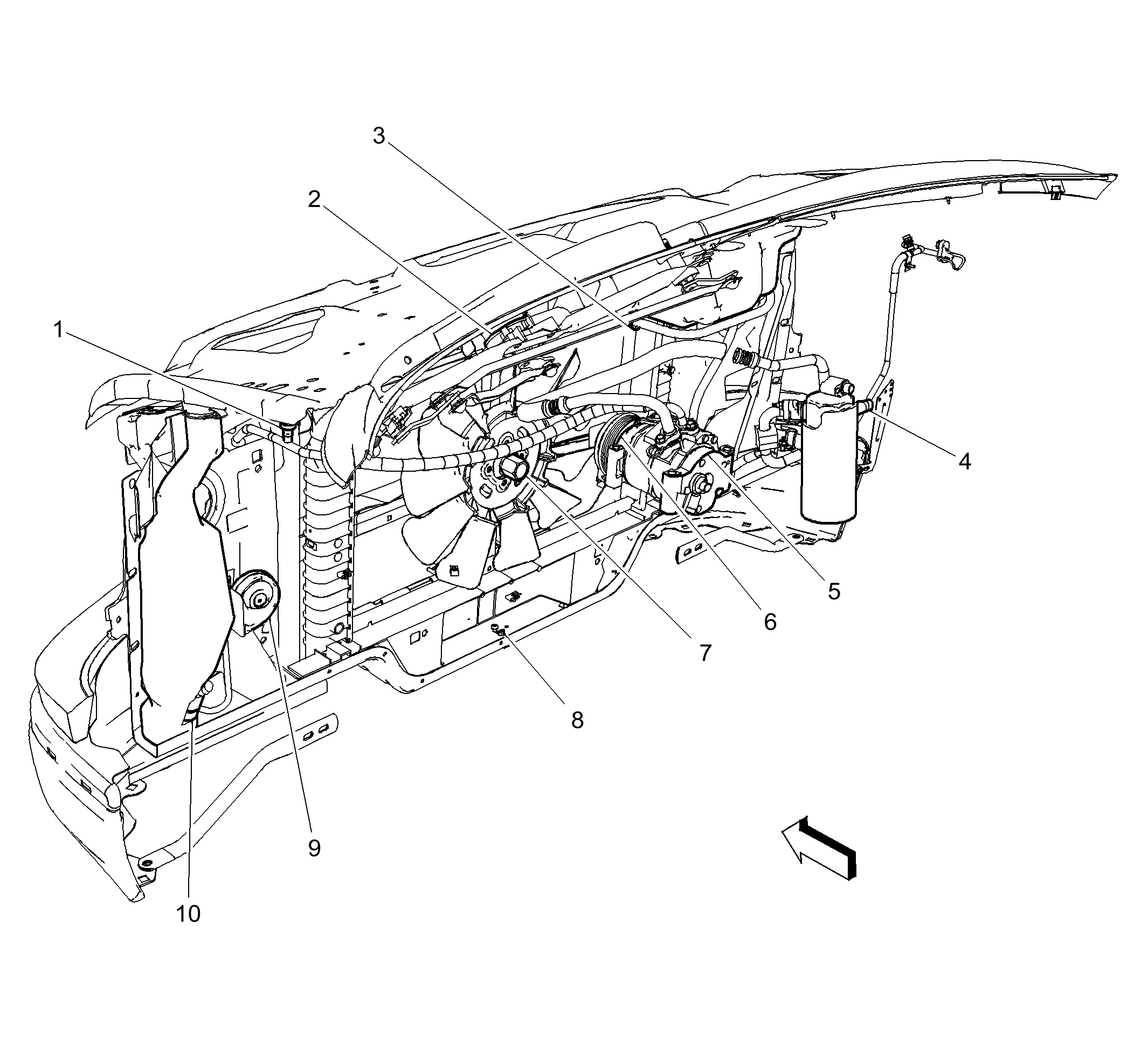

Front of Engine Compartment
Front of Engine Compartment
| Items |
|---|
| 1: B1 A/C Refrigerant Pressure Sensor (C60) |
| 2: M75 Windshield Wiper Motor |
| 3: B33 Engine Coolant Level Switch (LGH) |
| 4: B1B A/C Low Side Pressure Switch (C60) |
| 5: Q2 A/C Compressor Clutch |
| 6: Q2 A/C Compressor Clutch |
| 7: G10 Cooling Fan Motor (LGH) |
| 8: B59 Front Impact Sensor |
| 9: P13 Horn Assembly |
| 10: G24 Windshield Washer Pump |
