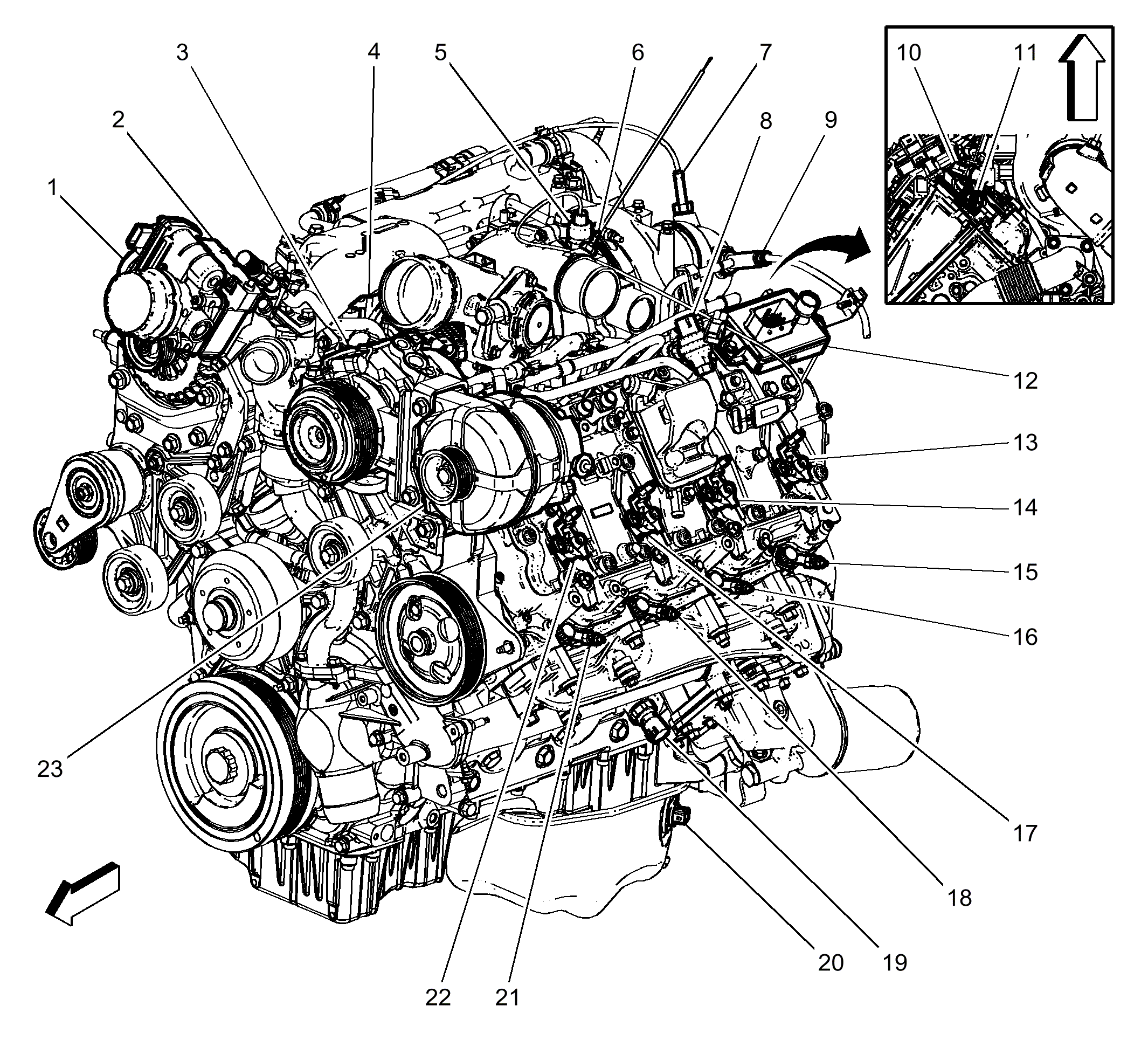

Left Front of Engine Components (LGH)
Left Front of Engine Components (LGH)
| Items |
|---|
| 1: Q20 Intake Air Flow Valve |
| 2: E24 Intake Air Heater (LGH) |
| 3: Q2 A/C Compressor Clutch |
| 4: Q14 Exhaust Gas Recirculation Valve (LGH) |
| 5: B112 Turbocharger Vane Position Sensor (LGH) |
| 6: B193A Charge Air Cooler Inlet Temperature Sensor (LGH) |
| 7: B130A Exhaust Gas Recirculation Temperature Sensor 1 (LGH) |
| 8: B215 Fuel Filter Pressure Switch (LGH) |
| 9: B195A Nitrogen Oxides Sensor 1 (LGH) |
| 10: B48B Fuel Temperature Sensor 2 (LGH) |
| 11: B47B Fuel Rail Pressure Sensor |
| 12: K34 Glow Plug Control Module (LGH) |
| 13: Q17H Fuel Injector 8 |
| 14: Q17F Fuel Injector 6 |
| 15: E12H Glow Plug 8 (LGH) |
| 16: E12F Glow Plug 6 (LGH) |
| 17: Q17D Fuel Injector 4 |
| 18: E12D Glow Plug 4 (LGH) |
| 19: B37B Engine Oil Pressure Sensor |
| 20: B35 Engine Oil Level Switch (LGH) |
| 21: E12B Glow Plug 2 (LGH) |
| 22: Q17B Fuel Injector 2 |
| 23: G13 Generator |
