Camshaft Position Sensor Replacement - Intake

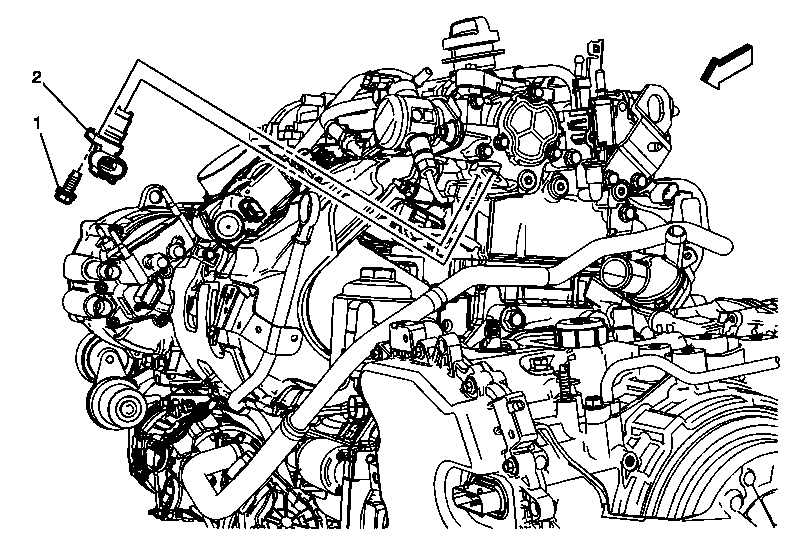

Fig 1: Camshaft Position Sensor - Intake
GM2717465Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor Replacement - Intake

Callout Component Name
Preliminary Procedure
Remove and reposition the engine control module. Refer to Engine Control Module Replacement . It is not necessary to disconnect the harness connectors.
1 Camshaft Position Sensor Fastener
CAUTION:

Refer to Fastener Caution


Tighten
10 (89 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect the electrical connector.
