Electronic Compass Module Replacement

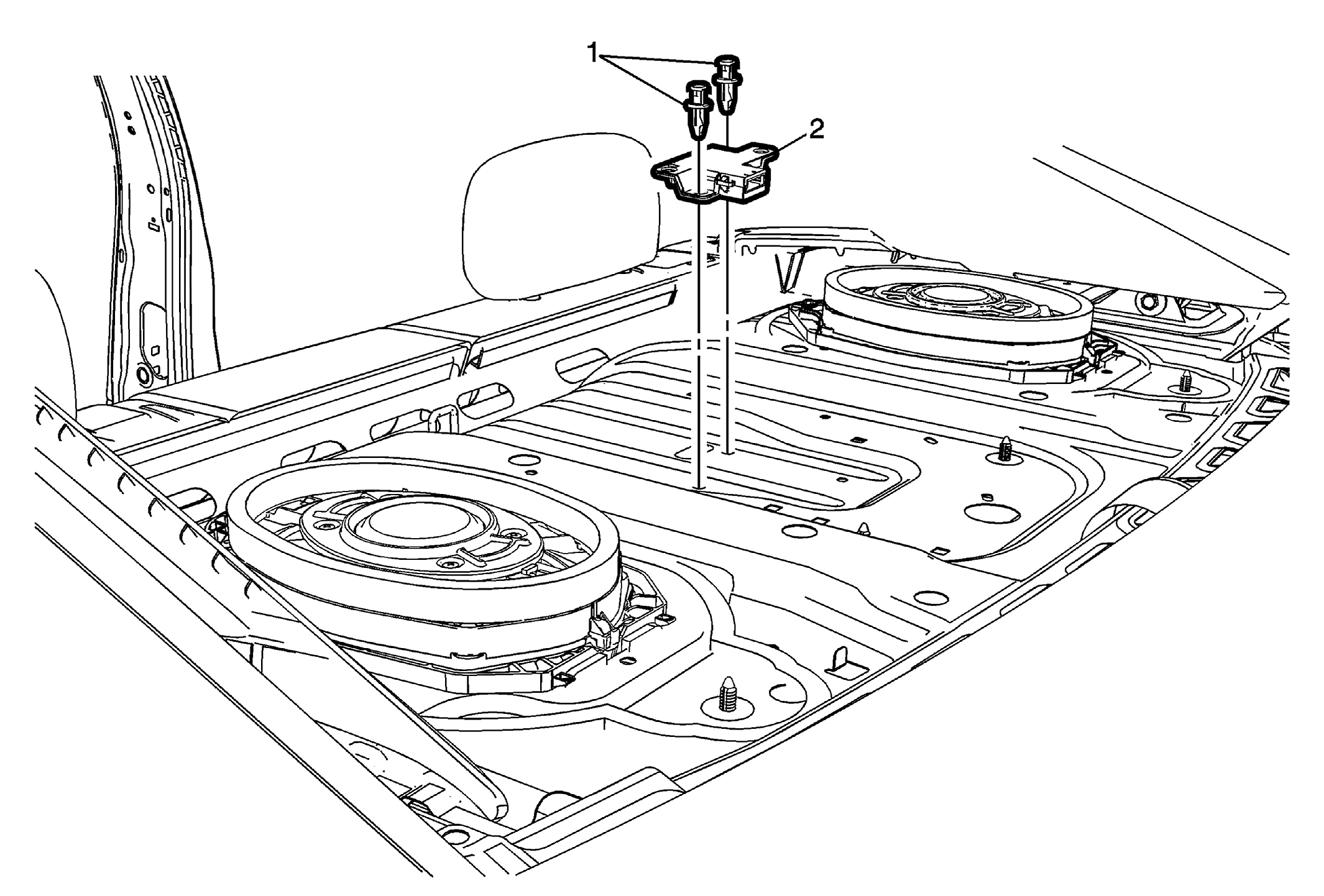

Fig 1: Electronic Compass Module
GM2911528Courtesy of GENERAL MOTORS COMPANY
Electronic Compass Module Replacement

Callout Component Name
Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without HP6) , Rear Window Panel Trim Replacement (With HP6) .
1 Electronic Compass Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Electronic Compass Module

Procedure

  1. Disconnect the electrical connector.
  2. For programming and set up, refer to Control Module References .
