Engine Front Splash Shield Replacement

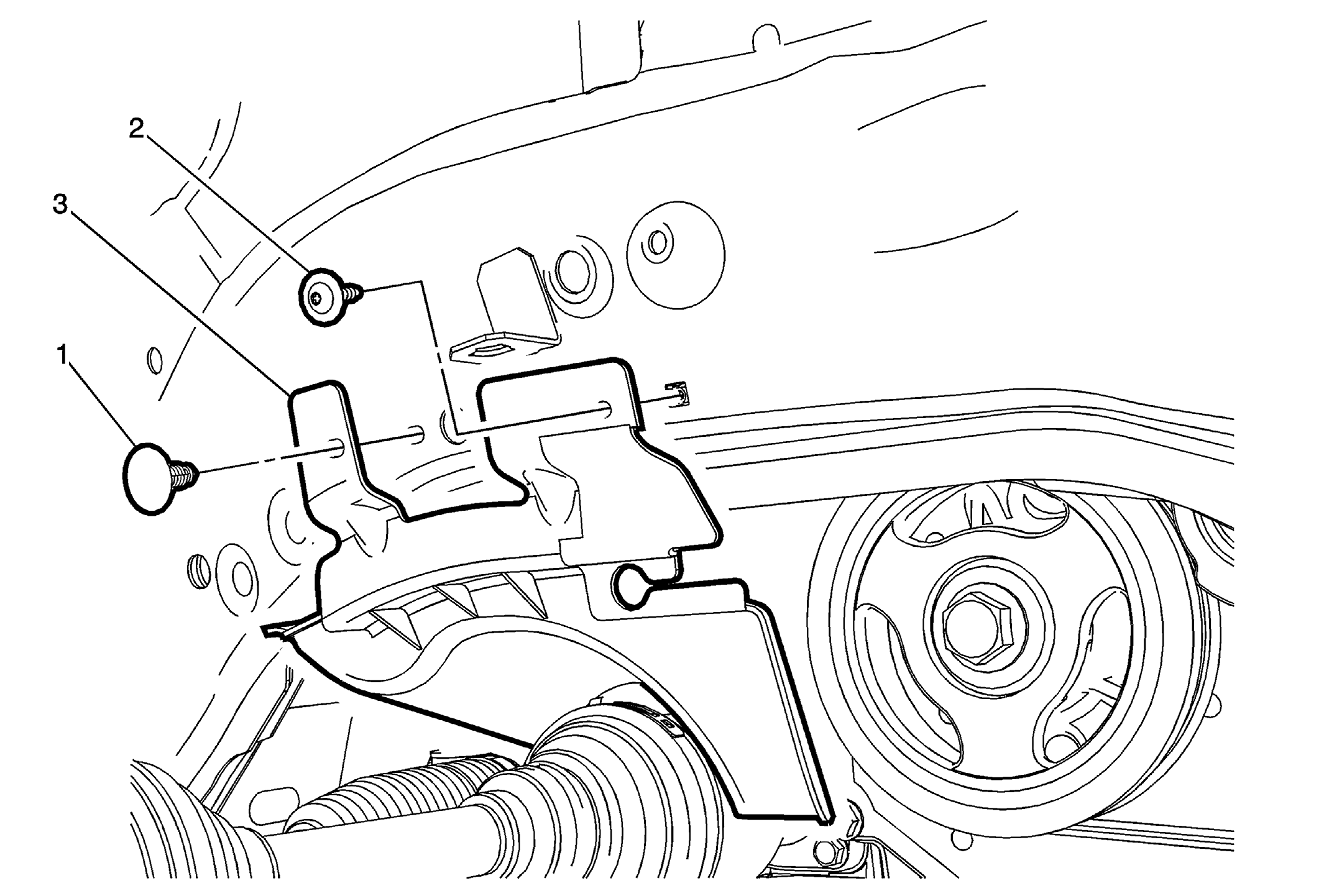

Fig 1: Engine Front Splash Shield
GM2906929Courtesy of GENERAL MOTORS COMPANY
Engine Front Splash Shield Replacement

Callout Component Name
Preliminary Procedures
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1 Engine Front Splash Shield Retainer
2 Engine Front Splash Shield Fastener
CAUTION:

Refer to Fastener Caution .
3 Engine Front Splash Shield
