Front Intake Air Duct Deflector Replacement

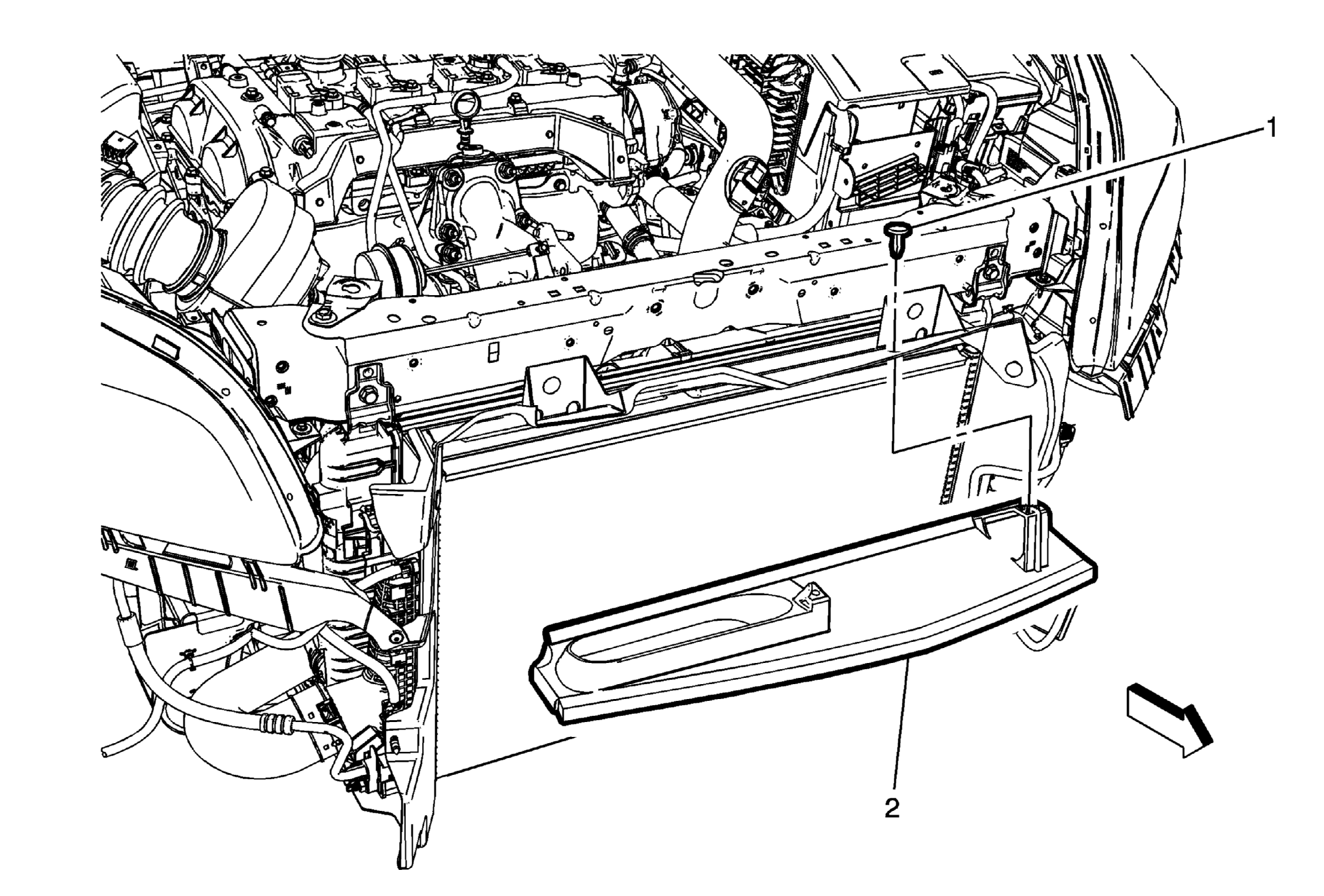

Fig 1: Front Intake Air Duct Deflector
GM2868548Courtesy of GENERAL MOTORS COMPANY
Front Intake Air Duct Deflector Replacement

Callout Component Name
Preliminary Procedure
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
1 Front Intake Air Duct Deflector Retainer
2 Front Intake Air Duct Deflector
