Front Seat Belt Guide Adjuster Replacement

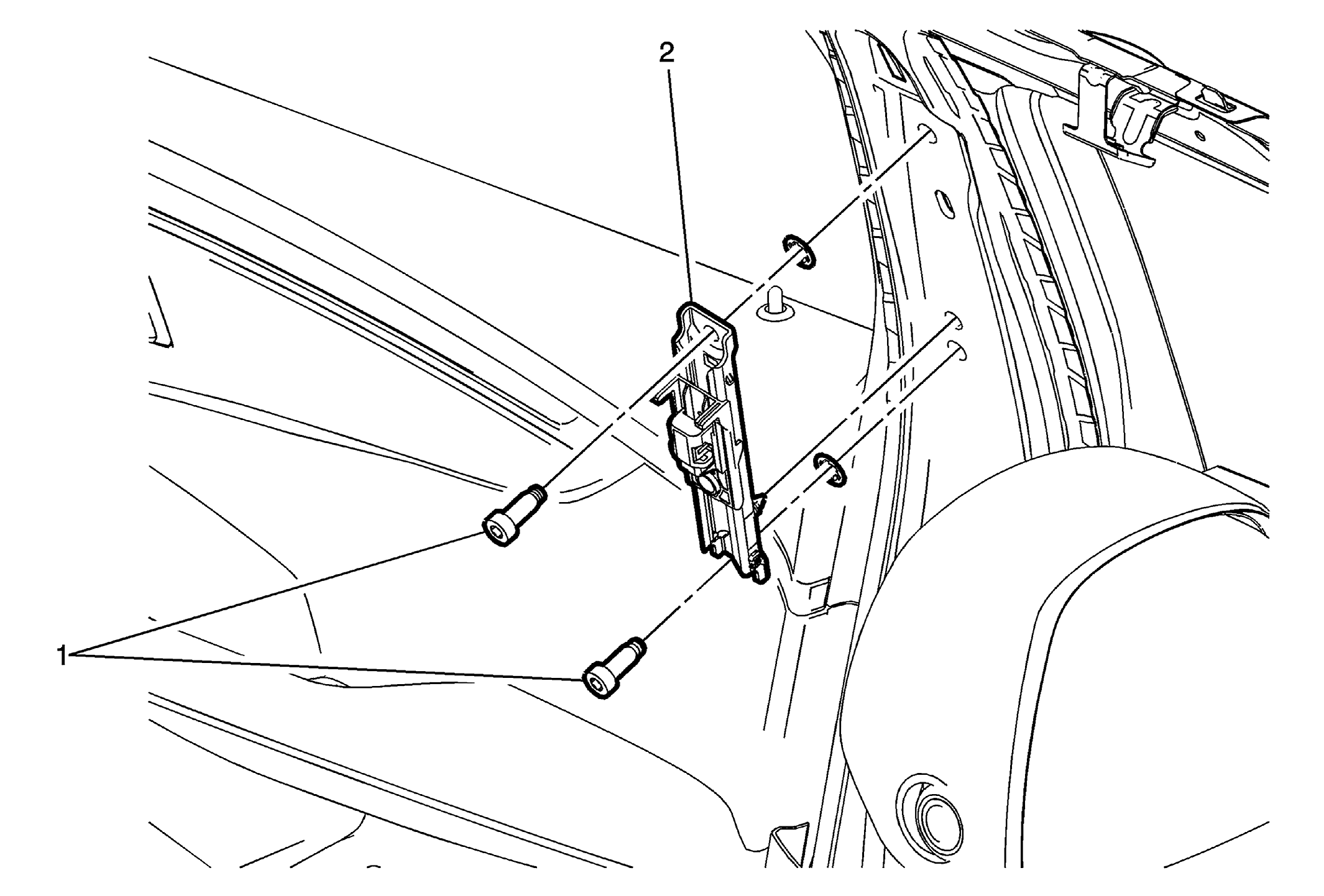

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement . Remove the seat belt retractor pretensioner fastener. Refer to Front Seat Belt Retractor Replacement .
1	Front Seat Belt Guide Adjuster Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 45 (33 lb ft)
2	Front Seat Belt Guide Adjuster

Callout

Component Name

Preliminary Procedures

Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
Remove the seat belt retractor pretensioner fastener. Refer to Front Seat Belt Retractor Replacement .

Front Seat Belt Guide Adjuster Fastener (Qty: 2)

CAUTION:

Tighten
45 (33 lb ft)

Front Seat Belt Guide Adjuster
