Rear Seat Belt Intermediate Guide Replacement

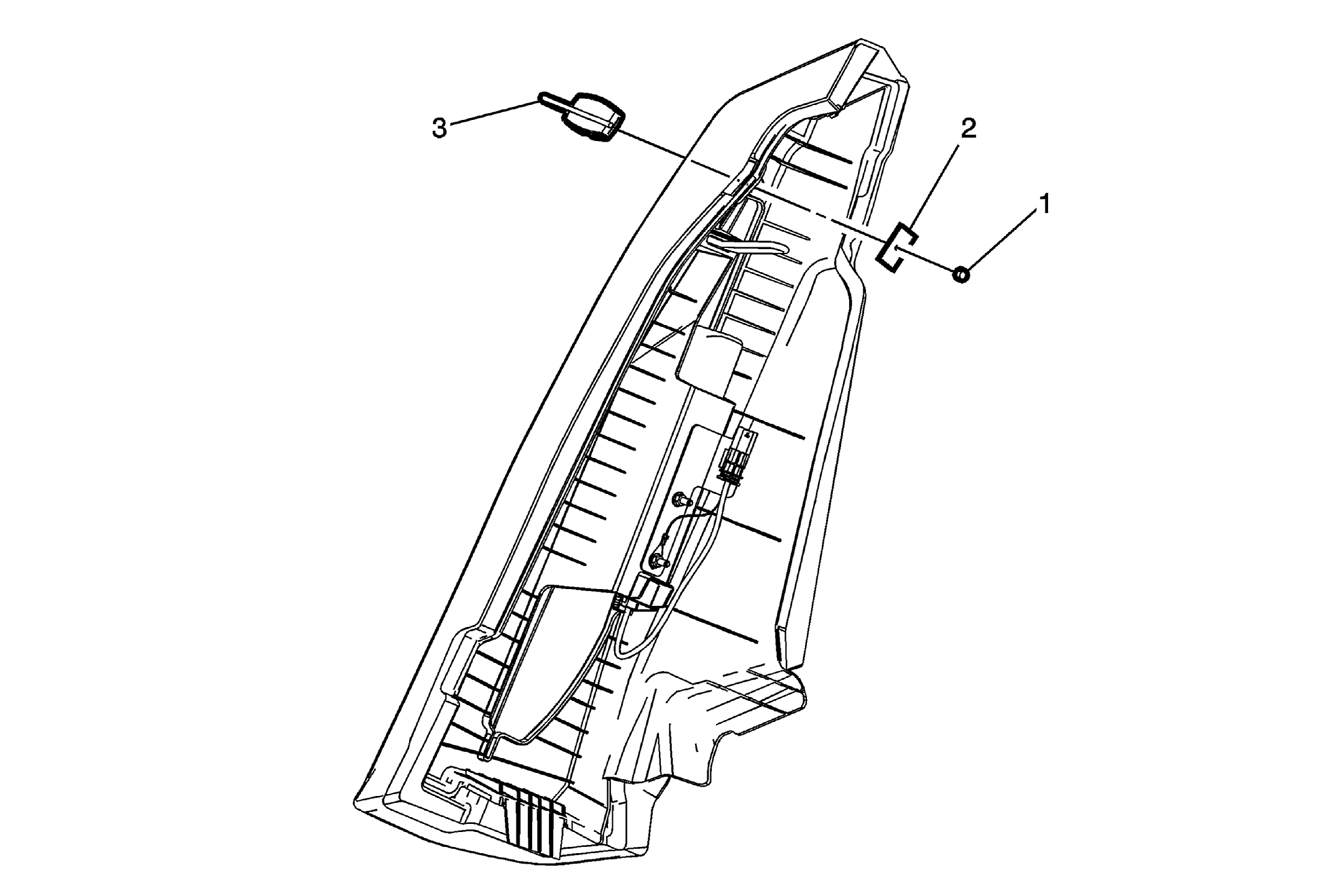

Fig 1: Rear Seat Belt Intermediate Guide

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement . Remove the staples retaining the cover to the bolster. Reposition the cover around the guide enough for access to the guide retainer.
1	Rear Seat Belt Intermediate Guide Retainer CAUTION: Refer to Fastener Caution .
2	Rear Seat Belt Intermediate Guide Plastic Strip
3	Rear Seat Belt Intermediate Guide
