Instrument Panel Multifunction Switch Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

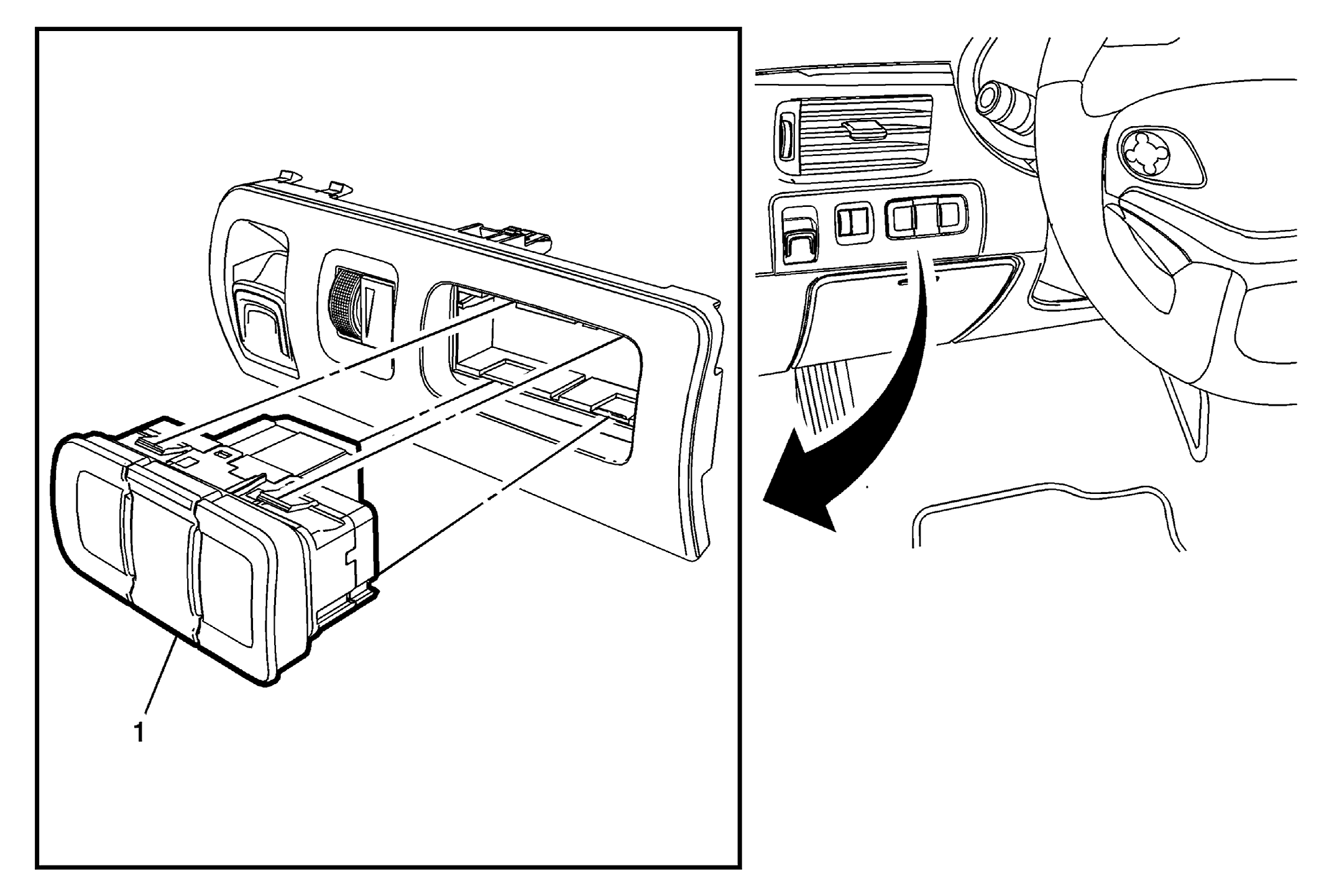

Fig 1: Instrument Panel Multifunction Switch
GM2911534Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Multifunction Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
1 Instrument Panel Multifunction Switch
Procedure
Release tabs on switch to remove from the bolster.
