Cooling Fan Components

Cooling Fan Components

Items
1:  G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left
2:  B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
3:  B34B Engine Coolant Temperature Sensor 2 (LKW)
4:  G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right

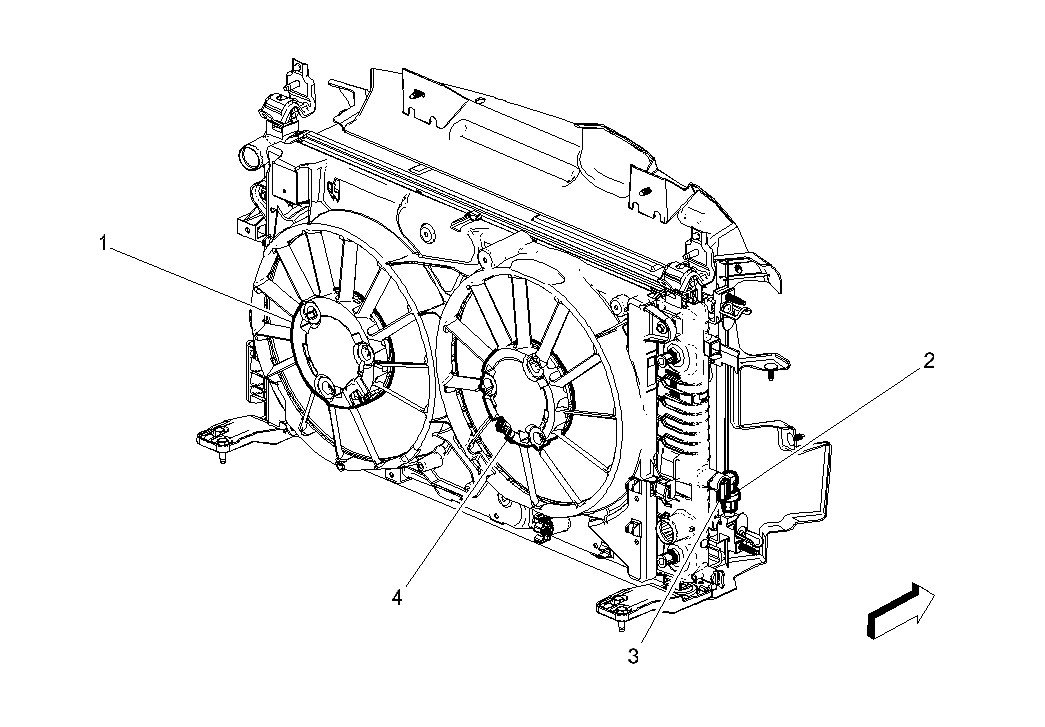

Fig 1: Cooling Fan Components
GM2739724Courtesy of GENERAL MOTORS COMPANY
