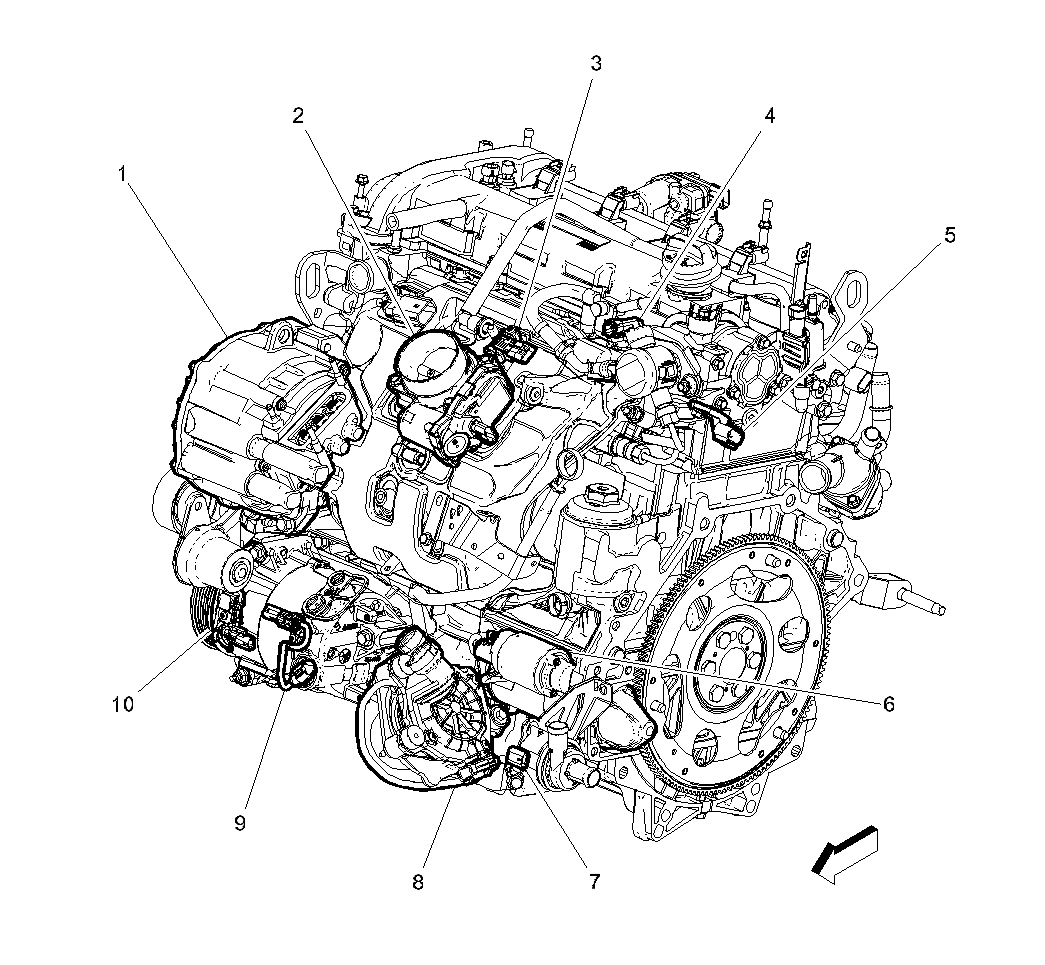

Right Front of Engine Components (LUK)
Right Front of Engine Components (LUK)
| Items |
|---|
| 1: A15 Starter/Generator (HP6) A15 Starter/Generator X1 (HP6)A15 Starter/Generator X2 (HP6) |
| 2: Q38 Throttle Body Q38 Throttle Body |
| 3: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LKW or LUK)B74 Manifold Absolute Pressure Sensor (LTG) |
| 4: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LKW or LTG)G18 High Pressure Fuel Pump (LUK) |
| 5: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LKW or LTG)B23F Camshaft Position Sensor - Intake (LUK) |
| 6: M64 Starter Motor M64 Starter Motor X1 (LTG)M64 Starter Motor X1 (LKW)M64 Starter Motor X1 (LUK)M64 Starter Motor X2 (LKW)M64 Starter Motor X2 (LTG)M64 Starter Motor X2 (LUK) |
| 7: G43 Starter/Generator Coolant Pump (HP6) G43 Starter/Generator Coolant Pump (HP6) |
| 8: G21 Secondary Air Injection Pump (LKW or LUK) G21 Secondary Air Injection Pump (NU6) |
| 9: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 10: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
Right Front of Engine Components (LUK)
