Front Side Door Window Front Channel Replacement

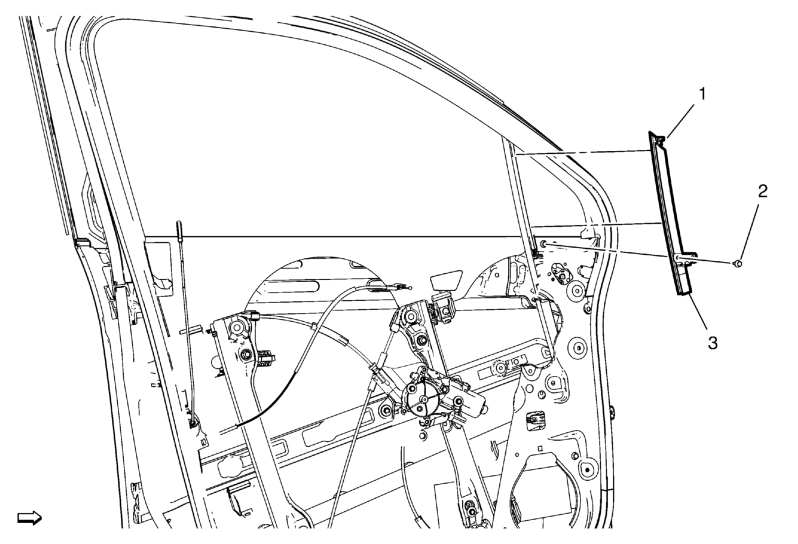

Fig 1: Front Side Door Window Front Channel
GM2372623Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Front Channel Replacement

Callout Component Name

Preliminary Procedure

  1. Position the window down in the door.
  2. Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement .
  3. Loosen the front side door window weatherstrip from the front side door window front channel
1 Front Side Door Window Front Channel Clip
2 Front Side Door Window Front Channel Screw
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
3 Front Side Door Window Front Channel
