Power, Ground, Serial Data and Antennas

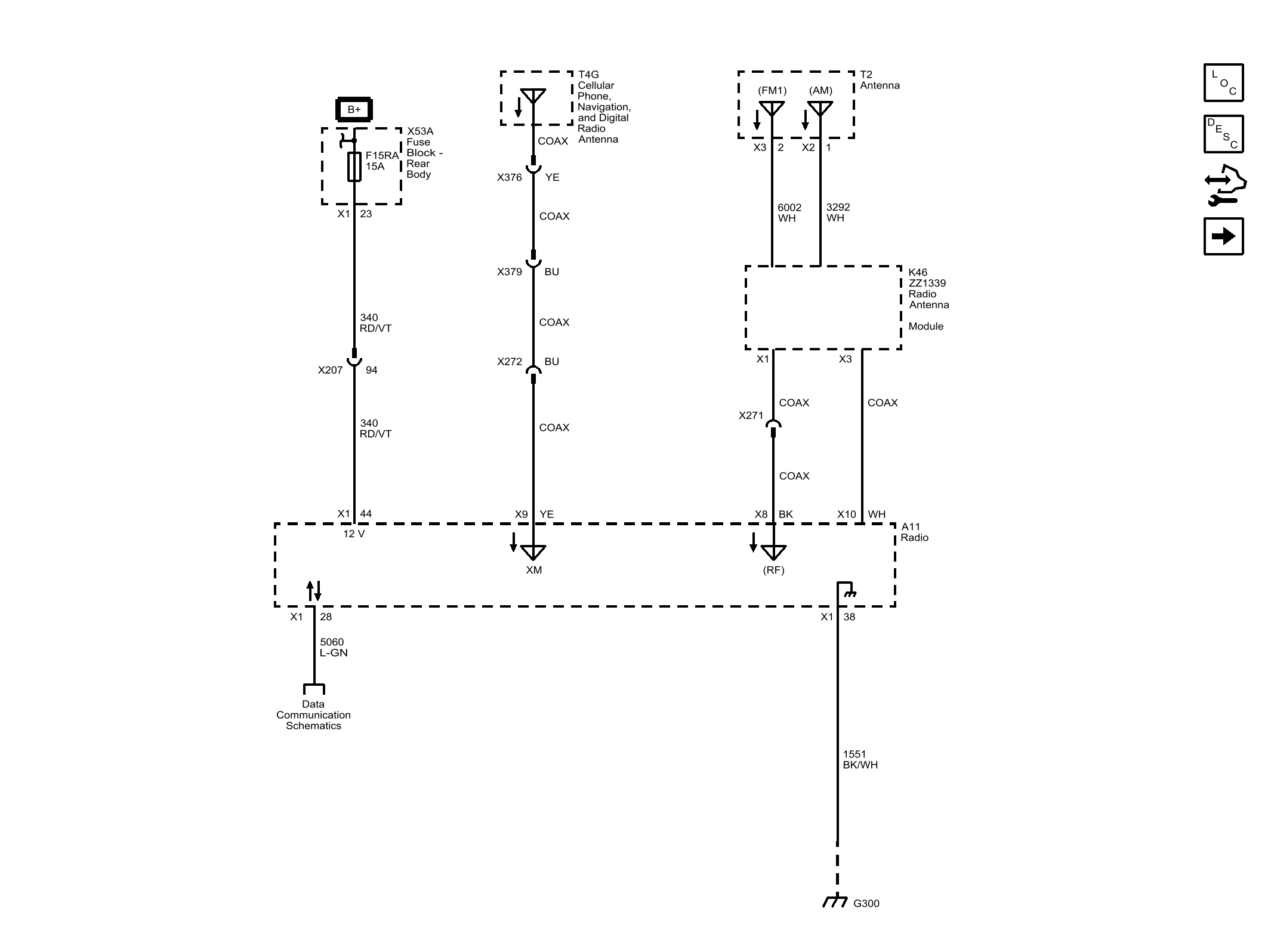

Fig 1: Power, Ground, Serial Data and Antennas Wiring Schematic
GM3600314Courtesy of GENERAL MOTORS COMPANY
