Cruise Control Switch Replacement

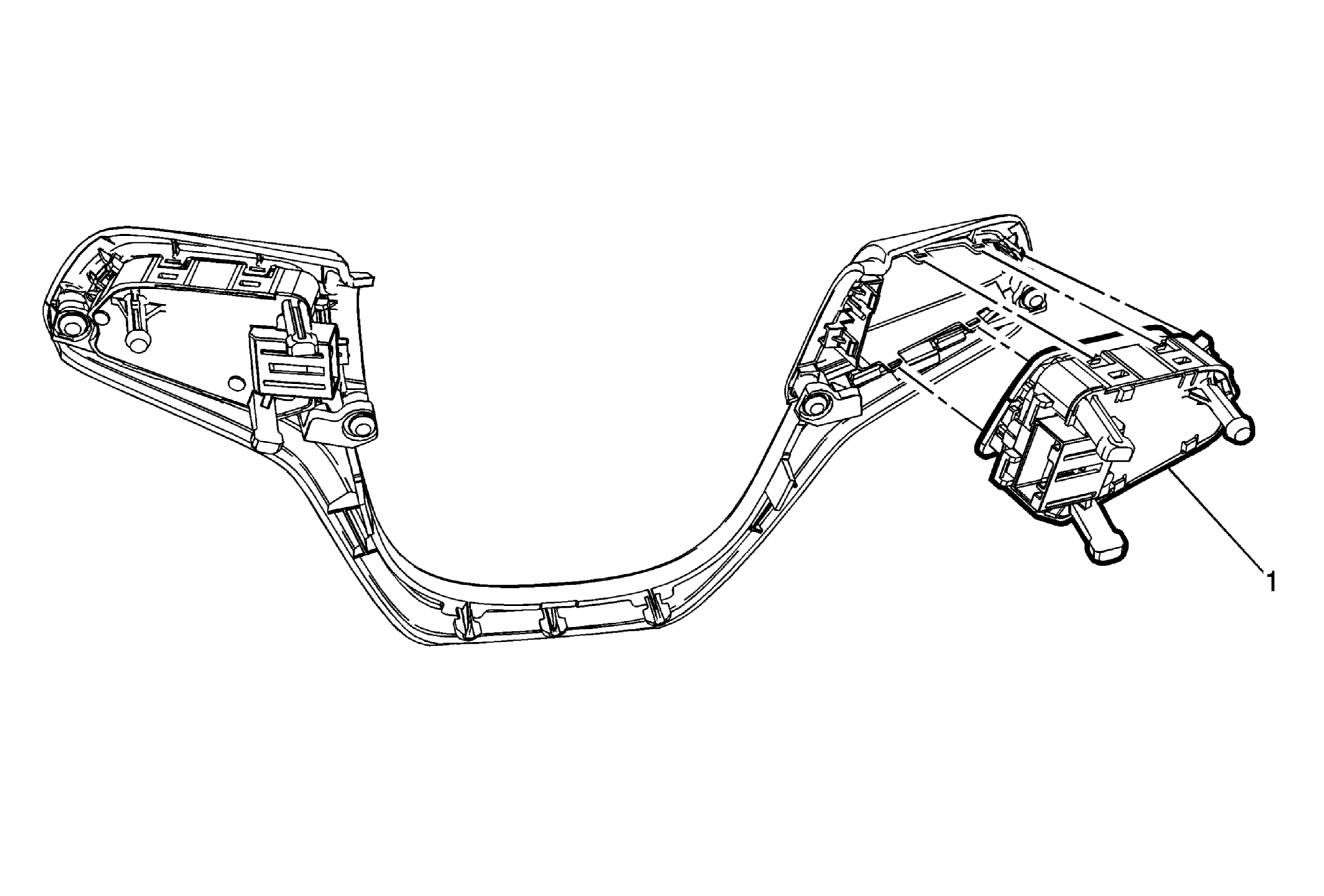

Fig 1: Cruise Control Switch
GM3287232Courtesy of GENERAL MOTORS COMPANY
Cruise Control Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the steering wheel spoke lower cover. Refer to Steering Wheel Spoke Lower Cover Replacement .
1 Cruise Control Switch
Procedure
Use the appropriate tool to depress the tabs and release the switch from the cover.
