Chevrolet
>>
2014
>>
SS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System And Remote Functions
>>
Schematic Wiring Diagrams
>>
Remote Function Wiring Schematics
>>
Door Handle Switches
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Door Handle Switches

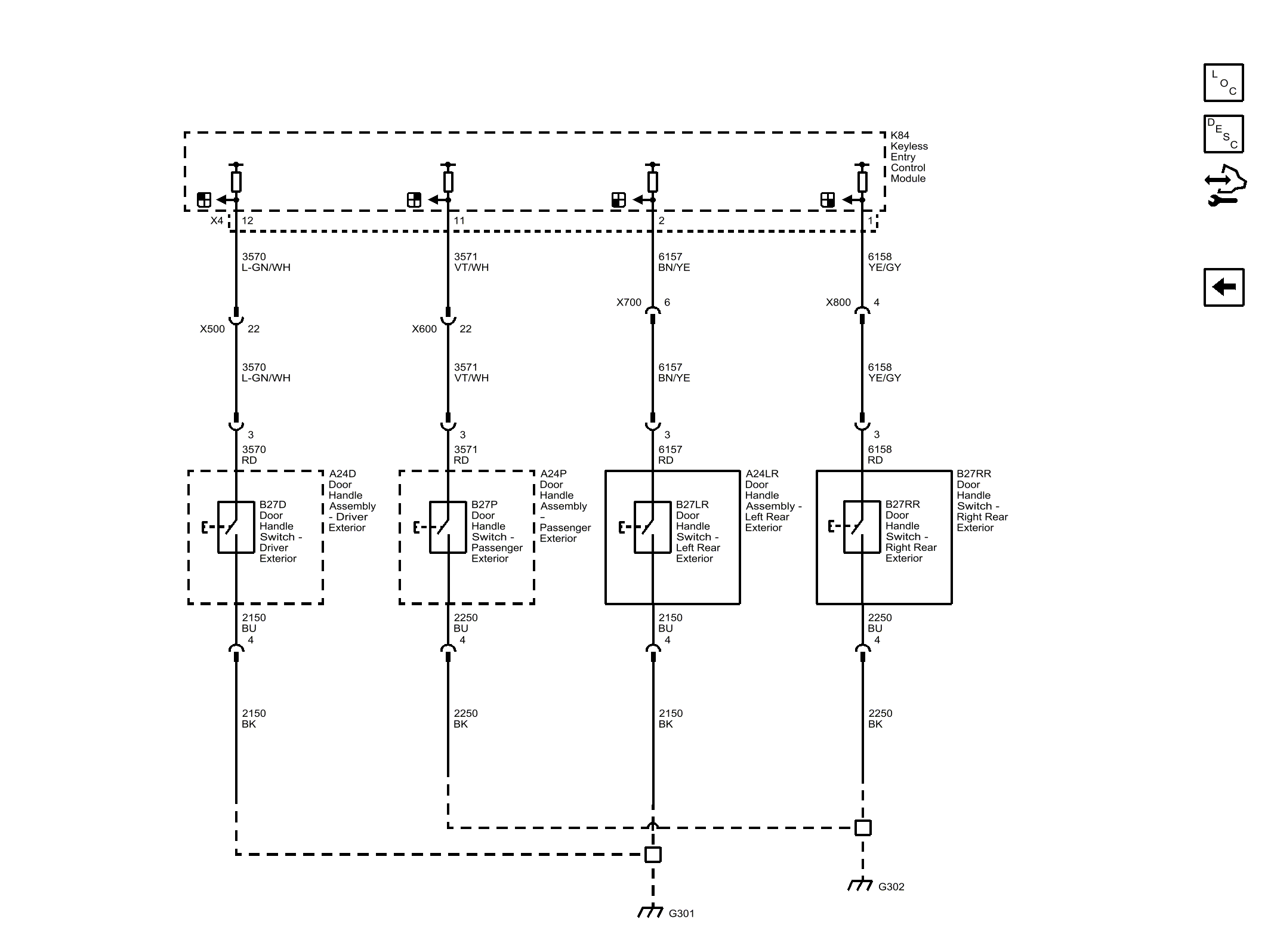

Fig 1: Door Handle Switches Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
