Inside Rearview Mirror Replacement

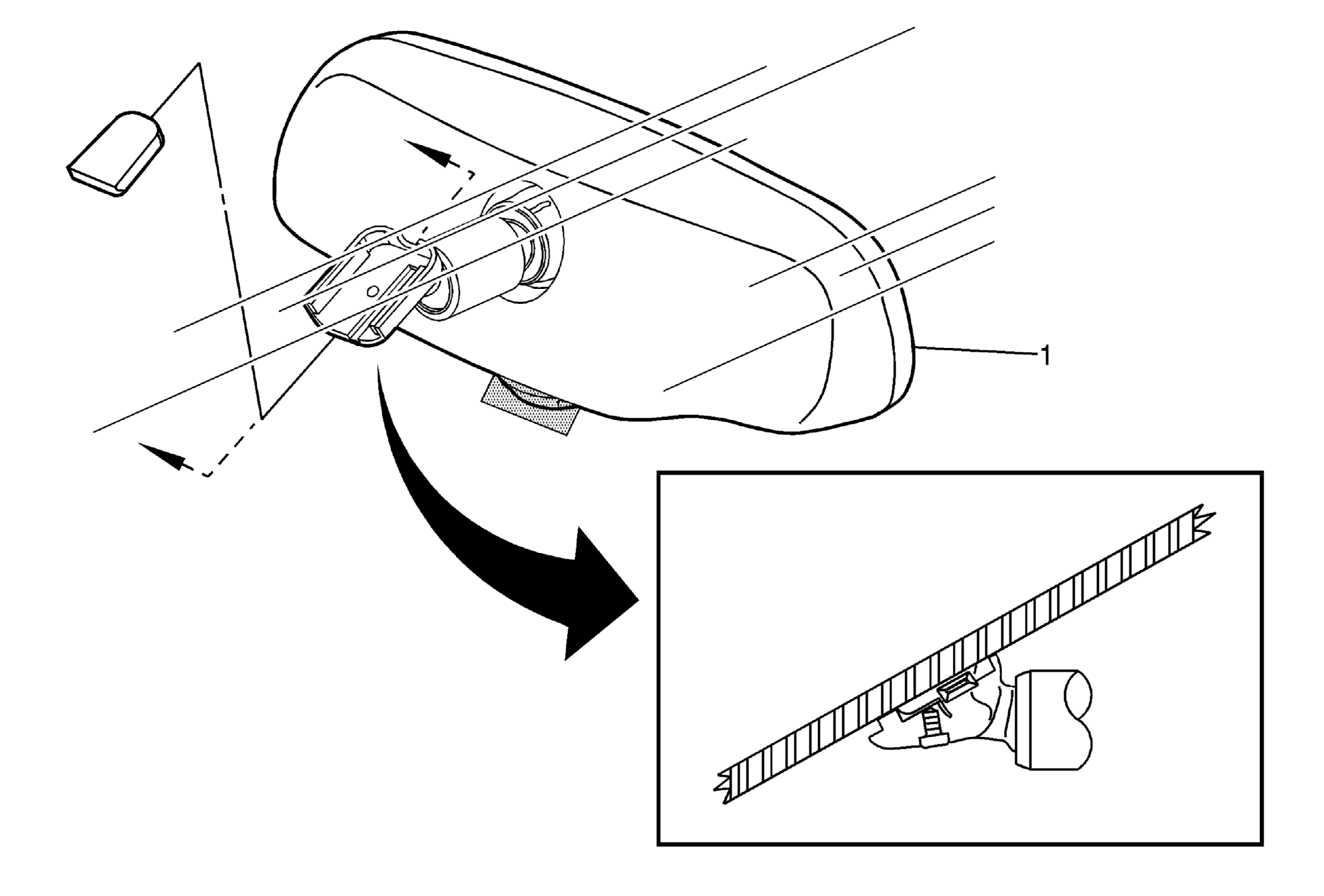

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield malfunction sensor mount bracket covers. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement , and Windshield Multifunction Sensor Mount Bracket Lower Cover Replacement .
1	Inside Rearview Mirror CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Tighten 1.8 N.m (16 lb in)

Callout

Component Name

Inside Rearview Mirror

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)
