Chevrolet
>>
2014
>>
SS
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Antilock Brake System
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics
>>
Module Power, Ground, Serial Data, and Traction Control
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Module Power, Ground, Serial Data, and Traction Control

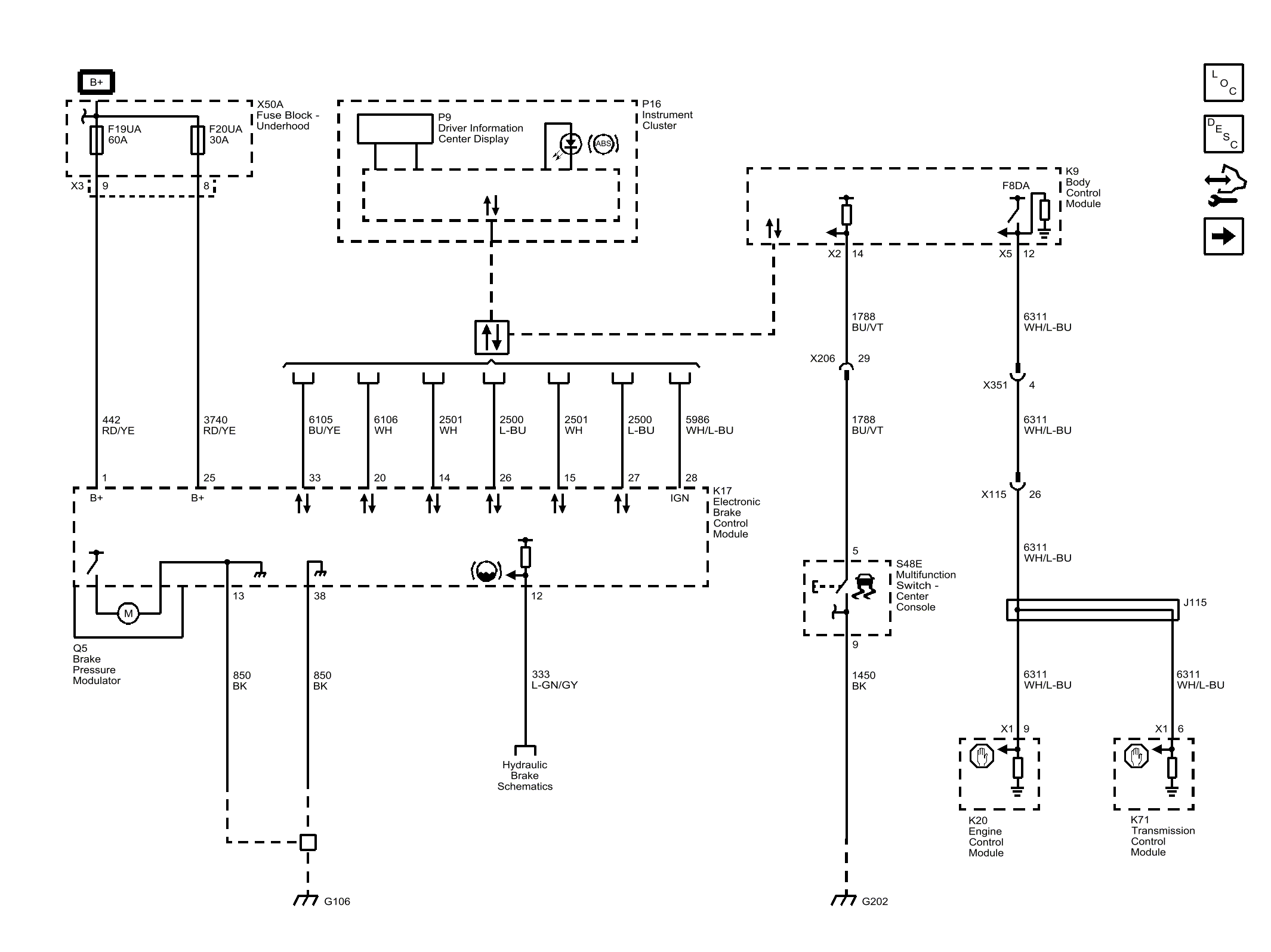

Fig 1: Module Power, Ground, Serial Data, and Traction Control
Courtesy of GENERAL MOTORS COMPANY
