Replacement Procedure
- Remove the filler cap.
- Raise and support the front of the vehicle. Refer to Lifting and Jacking the Vehicle .
- Drain the cooling system. Refer to Cooling System Draining and Filling .

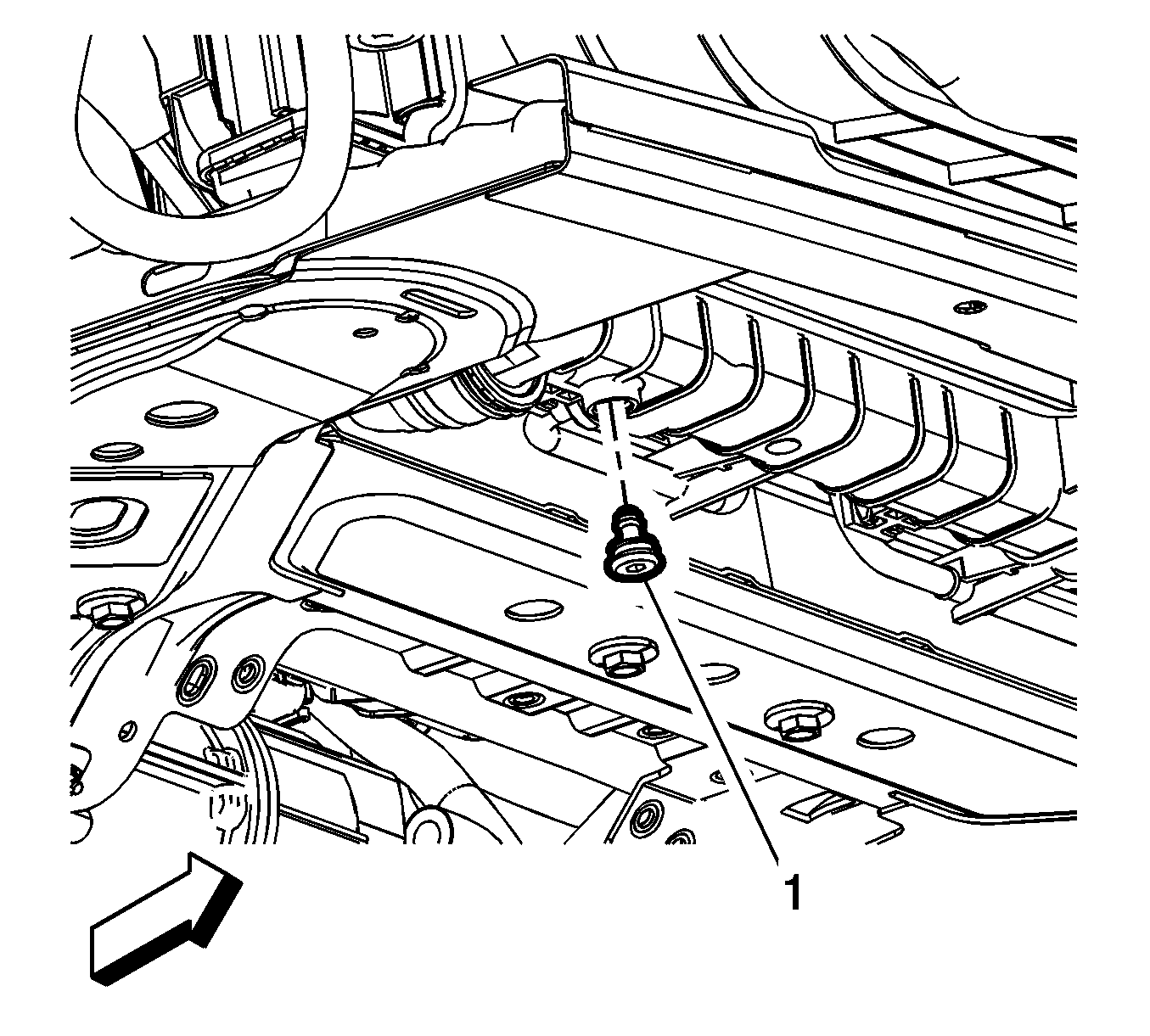

- Remove the drain plug (1) from the radiator.
WARNING:
Refer to Safety Glasses Warning .
WARNING:
Refer to Radiator Cap Removal Warning .
WARNING:
To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
