Controlled/Monitored Subsystem References

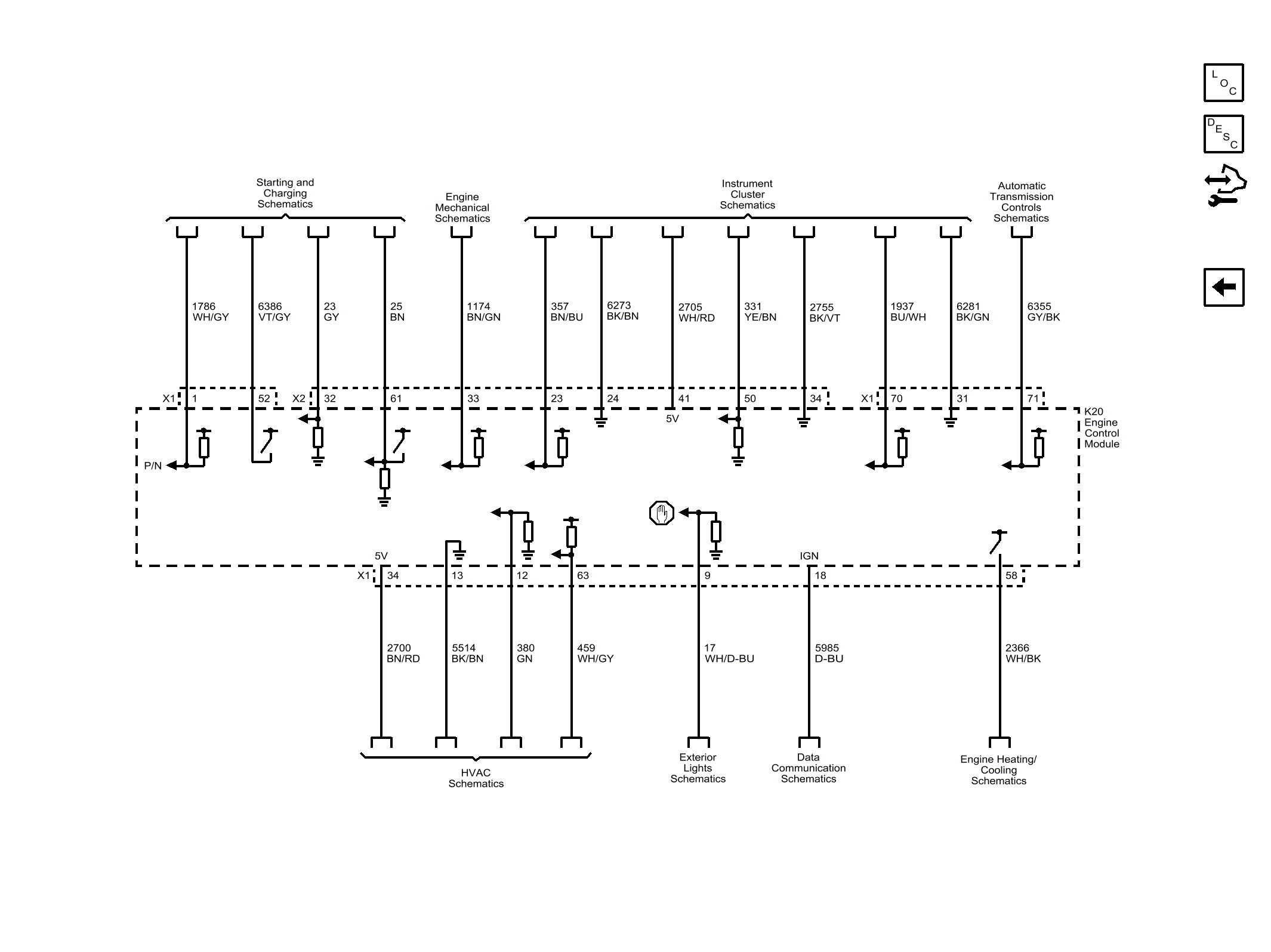

Fig 1: Controlled/Monitored Subsystem References Wiring Schematic
GM3554174Courtesy of GENERAL MOTORS COMPANY
