Installation Procedure

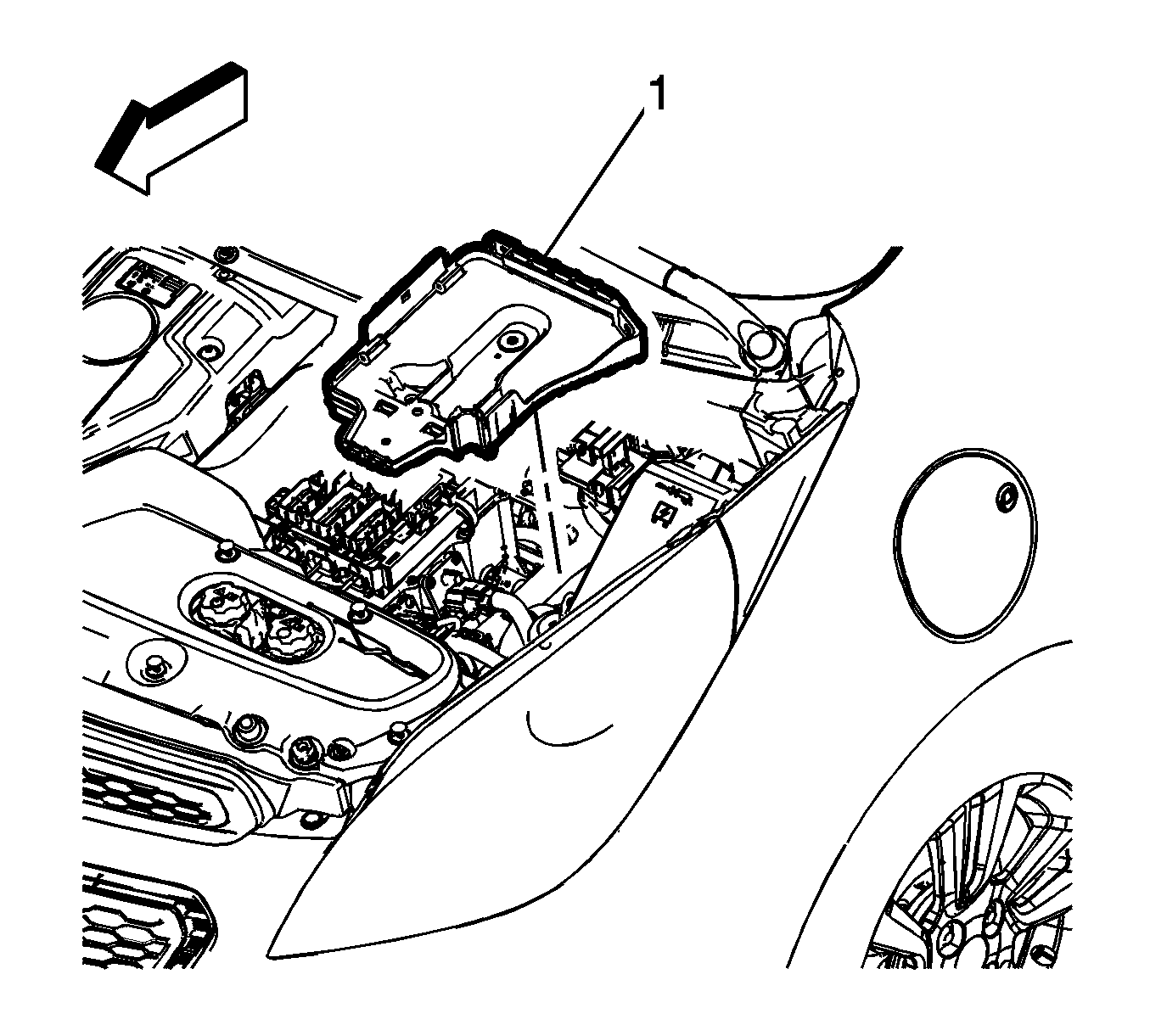

    Fig 1: Battery Tray
    GM3216630Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery tray (1) into position.

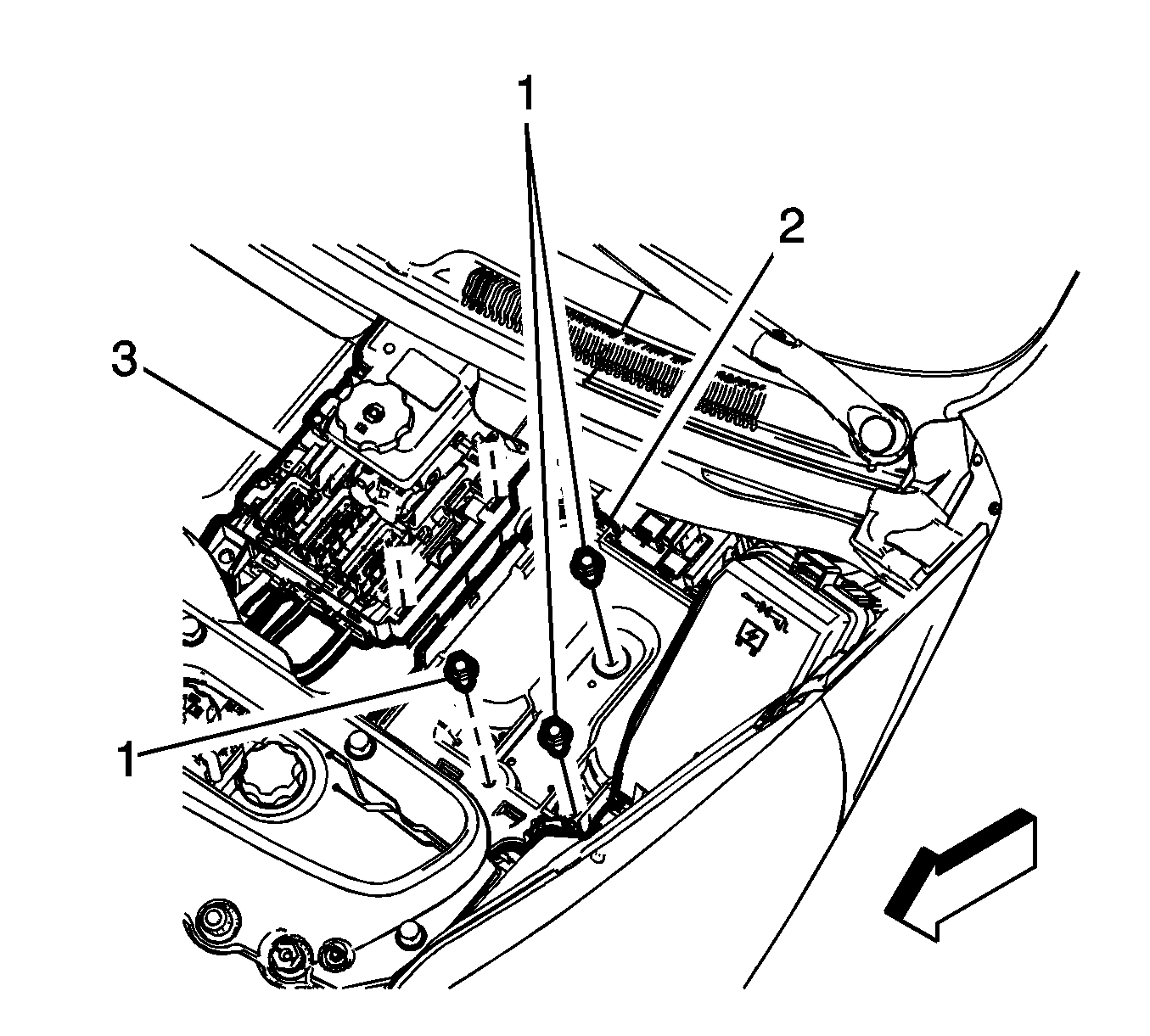

    2. Fig 2: Engine Control Module Bracket
    GM3216629Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery tray fasteners (1) and tighten to 22 (16 lb ft).
  3. Attach the engine control module bracket (3) to the battery tray (2).
  4. Attach the battery current sensor to the battery tray.
  5. Attach the radiator surge tank clamp bracket. Refer to Radiator Surge Tank Clamp Bracket Replacement (Right Side) , Radiator Surge Tank Clamp Bracket Replacement (Left Side) .
    6. Fig 3: Battery Positive Cable Retainer
    GM3213086Courtesy of GENERAL MOTORS COMPANY
  6. Attach the battery positive cable retainer (1) to the battery tray.
    7. Fig 4: Battery Positive Cable Retainers
    GM2917965Courtesy of GENERAL MOTORS COMPANY
  7. Attach the battery positive cable retainers (1) to the battery tray and bracket.
    8. Fig 5: Battery
    GM3213057Courtesy of GENERAL MOTORS COMPANY
  8. Install the battery (1) into position on the battery tray.
    9. Fig 6: Battery Hold Down Retainer Fastener
    GM3213054Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery hold down retainer (2) and tighten the fastener (1) to 8 (71 lb in).
    10. Fig 7: Protective Cover
    GM2917974Courtesy of GENERAL MOTORS COMPANY
  10. Install the battery positive cable to the battery post and tighten the clamp fastener (2) to 5 (44 lb in).
  11. Install the protective cover (1) to the battery positive cable.
  12. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
