Power, Ground, Data Communications, and Subsystem References (1 of 5) Wiring Schematics

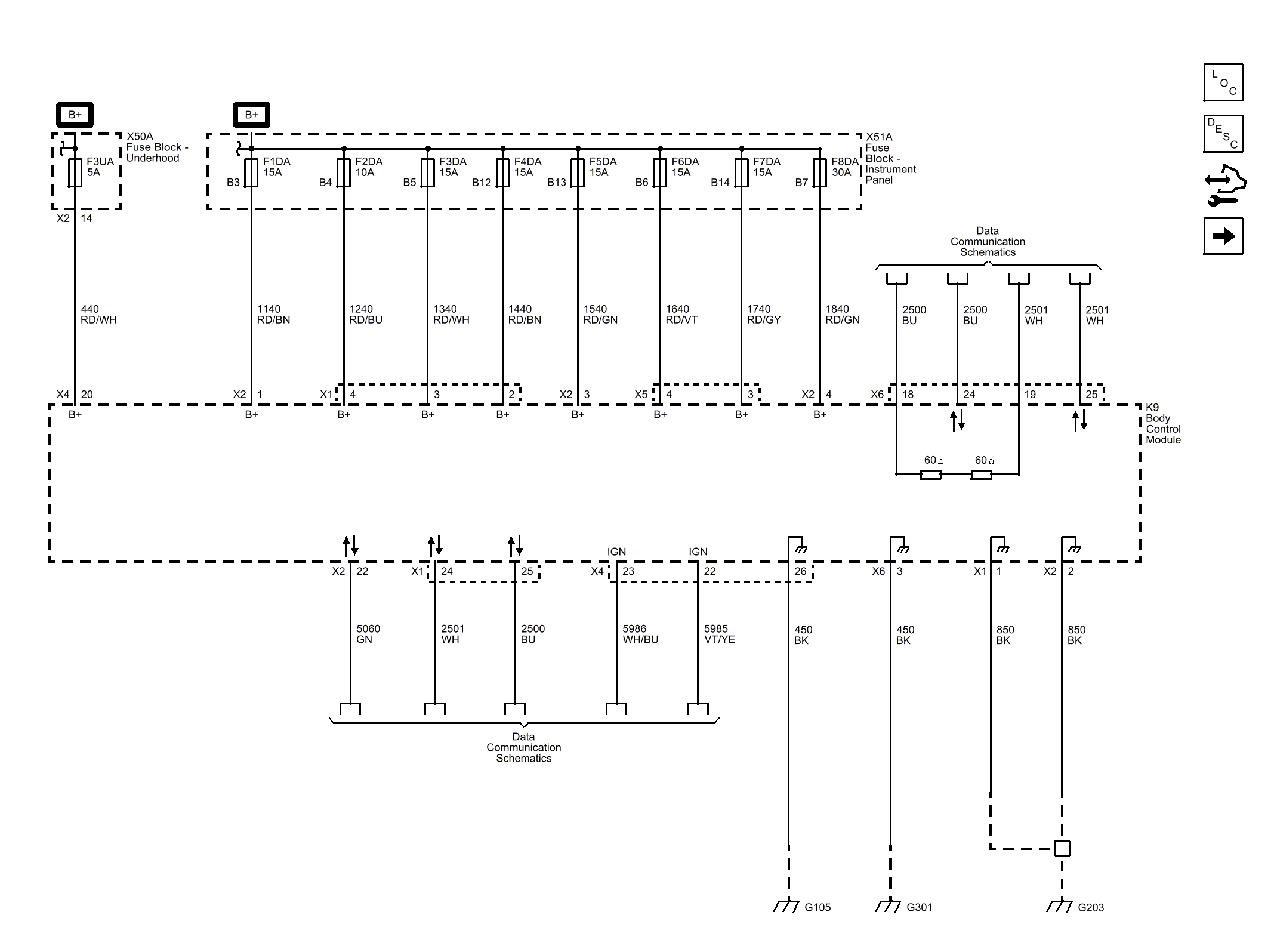

Fig 1: Power, Ground, Data Communications, and Subsystem References (1 of 5) Wiring Schematic
GM3273773Courtesy of GENERAL MOTORS COMPANY
