Radio Rear Quarter Trim Panel Speaker Replacement

WARNING: This page is about a different car, the 2013 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

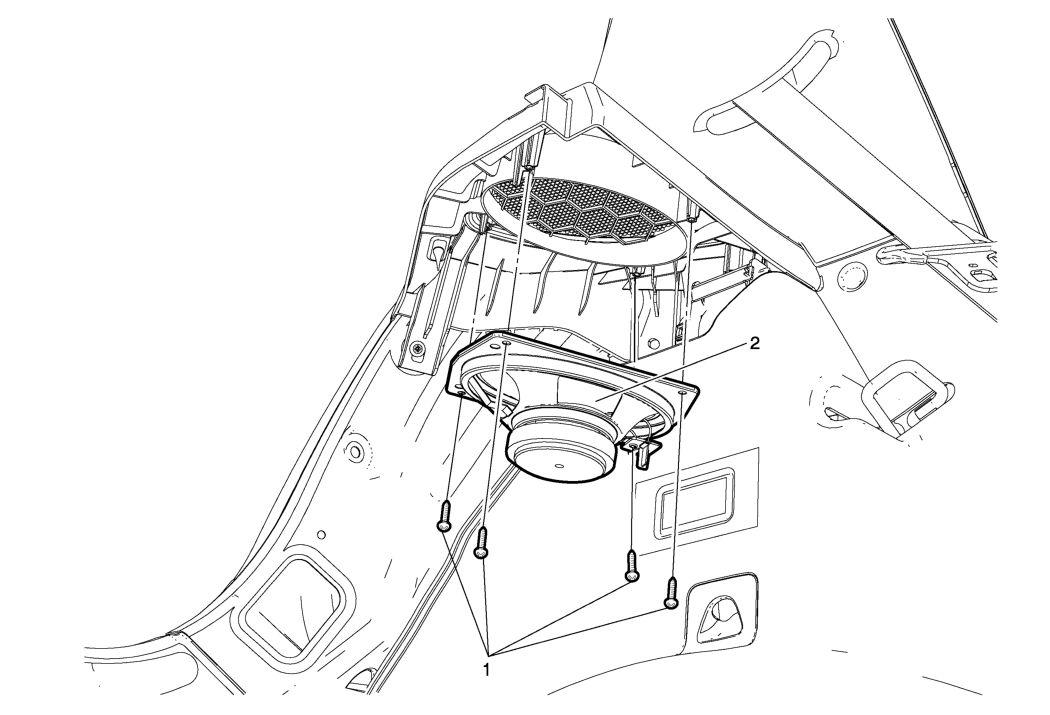

Fig 1: Radio Rear Quarter Trim Panel Speaker
GM2327696Courtesy of GENERAL MOTORS COMPANY
Radio Rear Quarter Trim Panel Speaker Replacement

Callout Component Name
1 Radio Rear Speaker Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Radio Rear Quarter Trim Panel Speaker
