Stability Control

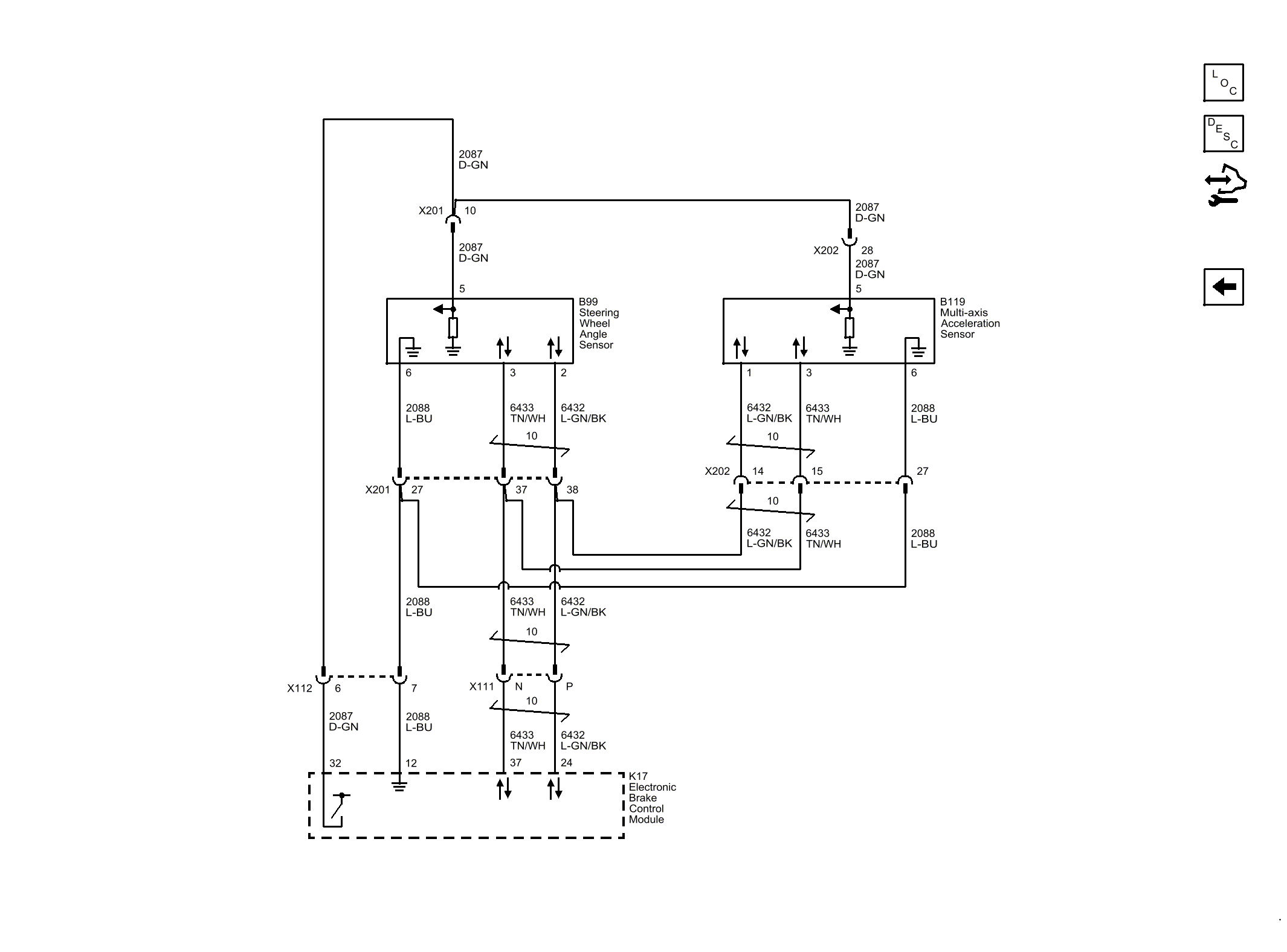

Fig 1: Stability Control Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
