Front Park Assist (UDF)

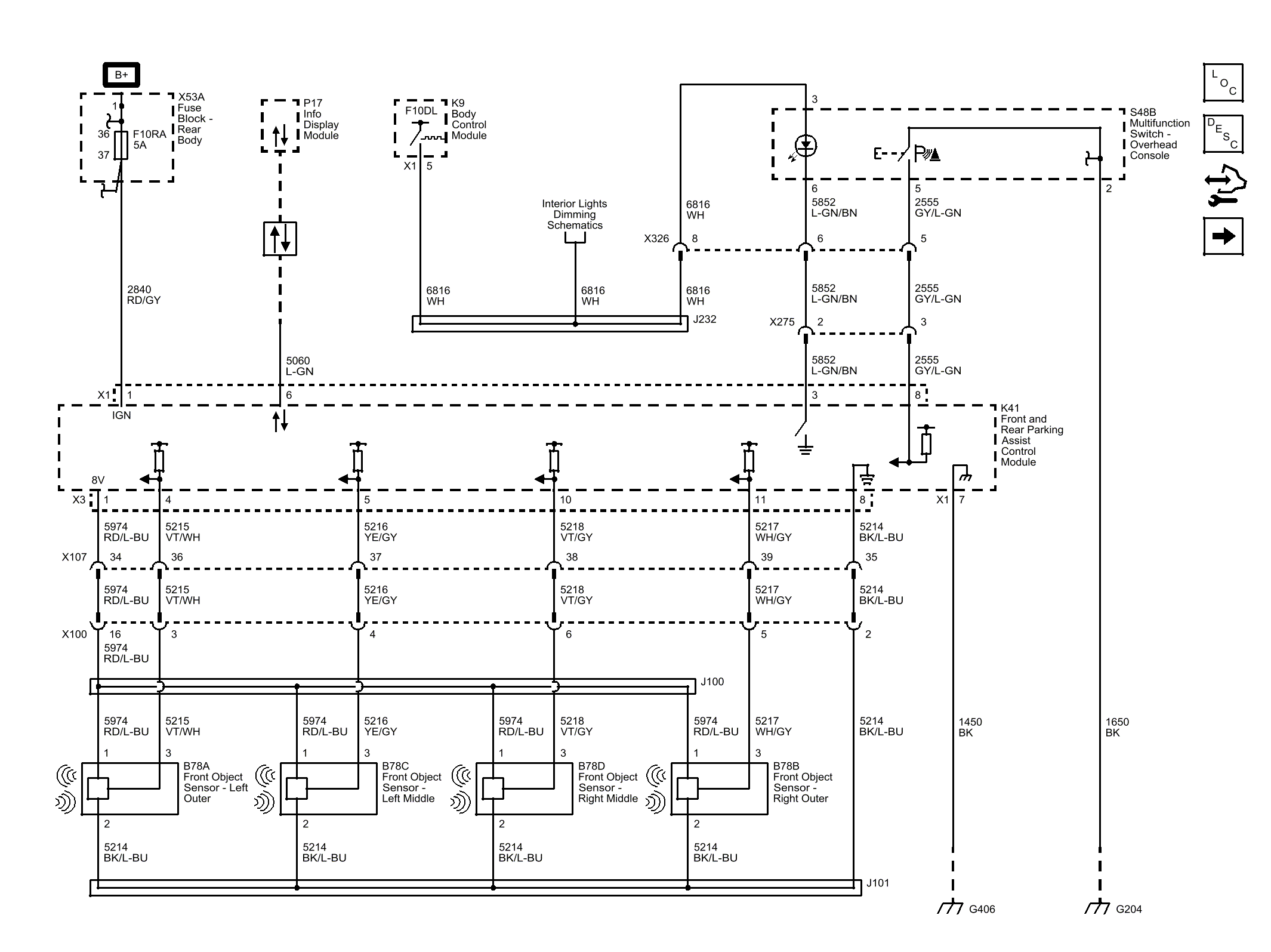

Fig 1: Front Park Assist (UDF) Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
