Moveable Window Wiring Schematics: Driver

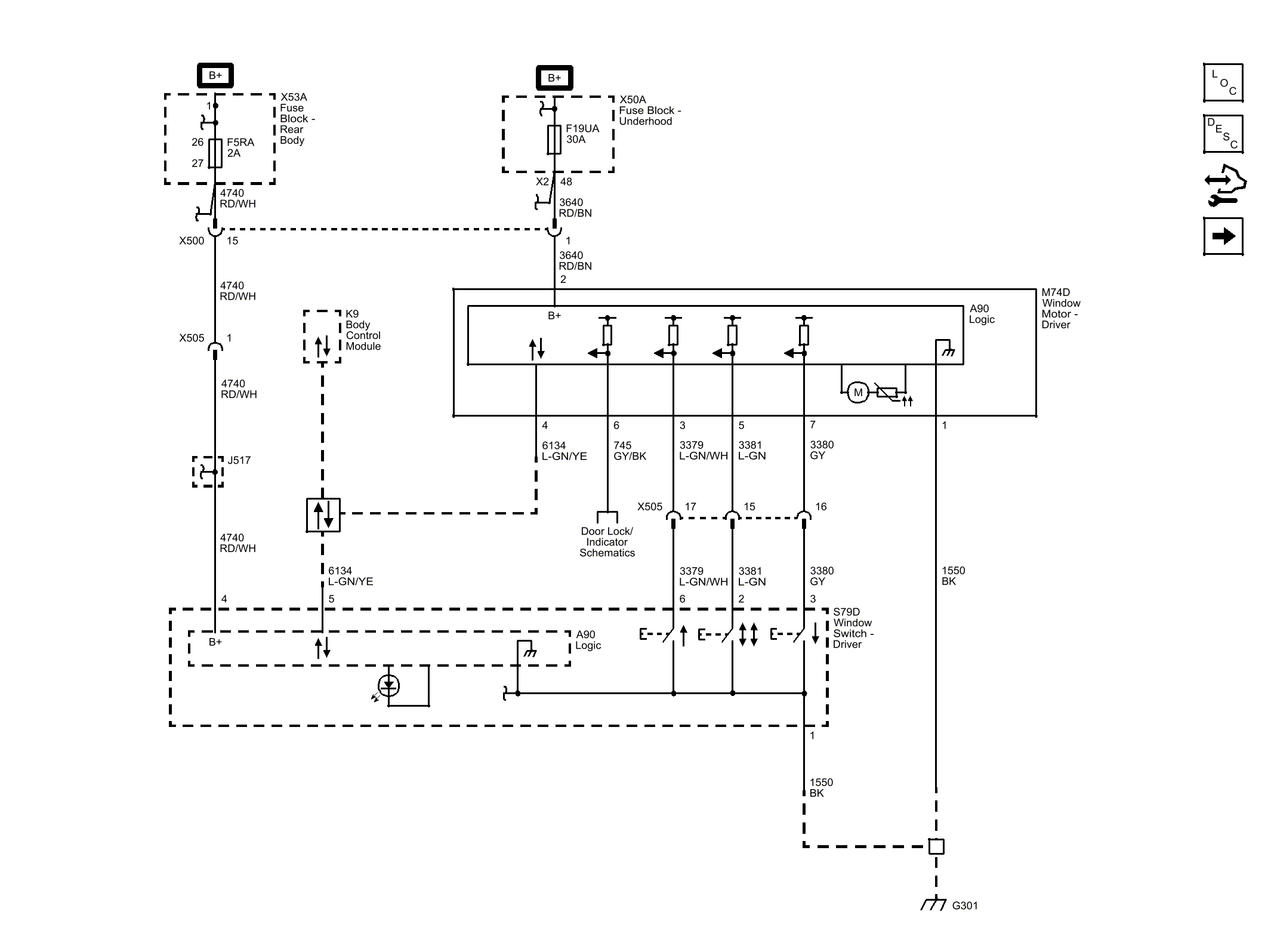

Fig 1: Moveable Window (Driver) Wiring Schematics
GM3339772Courtesy of GENERAL MOTORS COMPANY
