Accessory Switch Replacement

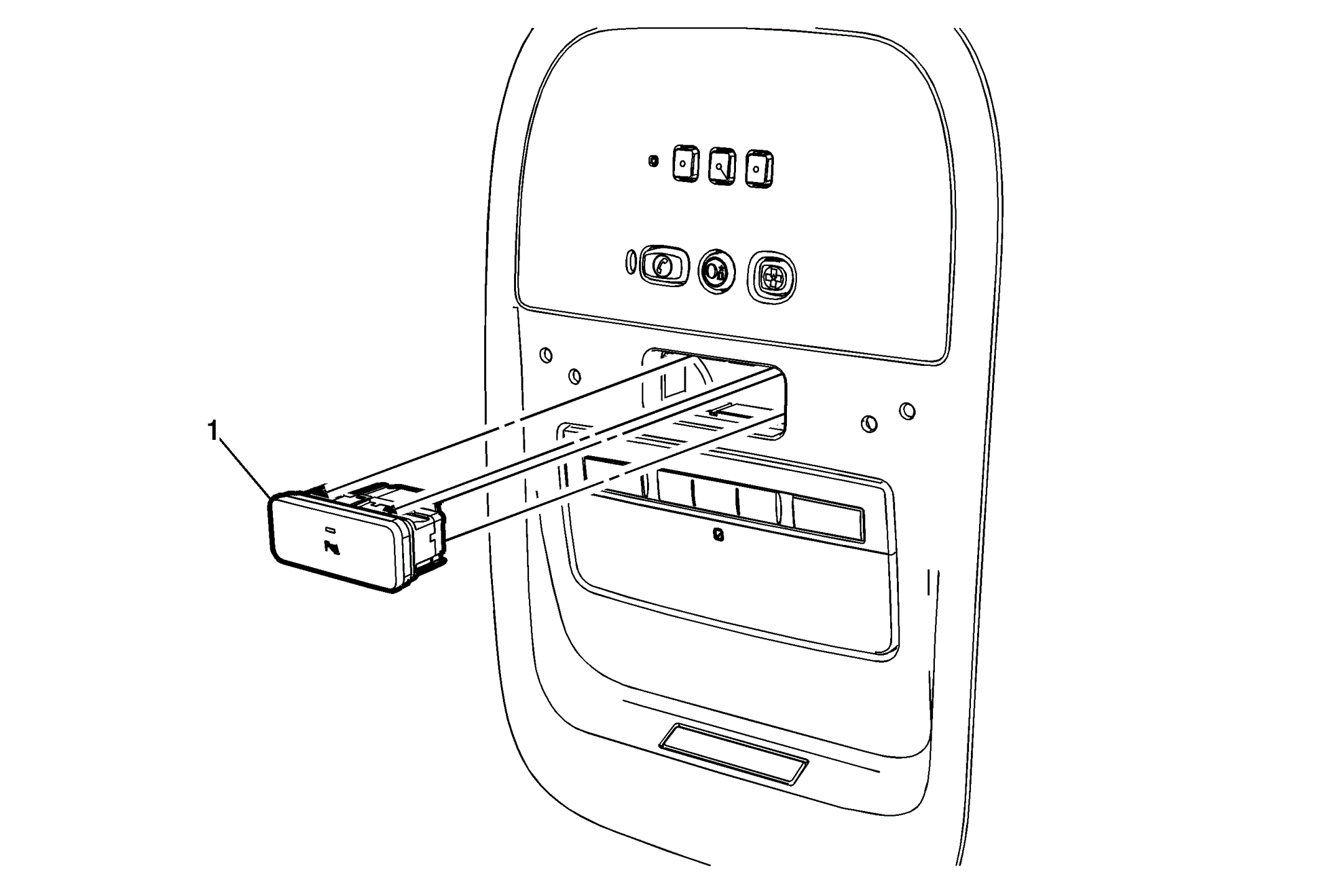

Fig 1: Accessory Switch
GM2406424Courtesy of GENERAL MOTORS COMPANY
Accessory Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .
1 Accessory Switch
Procedure
Disconnect the electrical connector.
