Exhaust System Insulator, Hanger, Bracket Replacement (LFX)

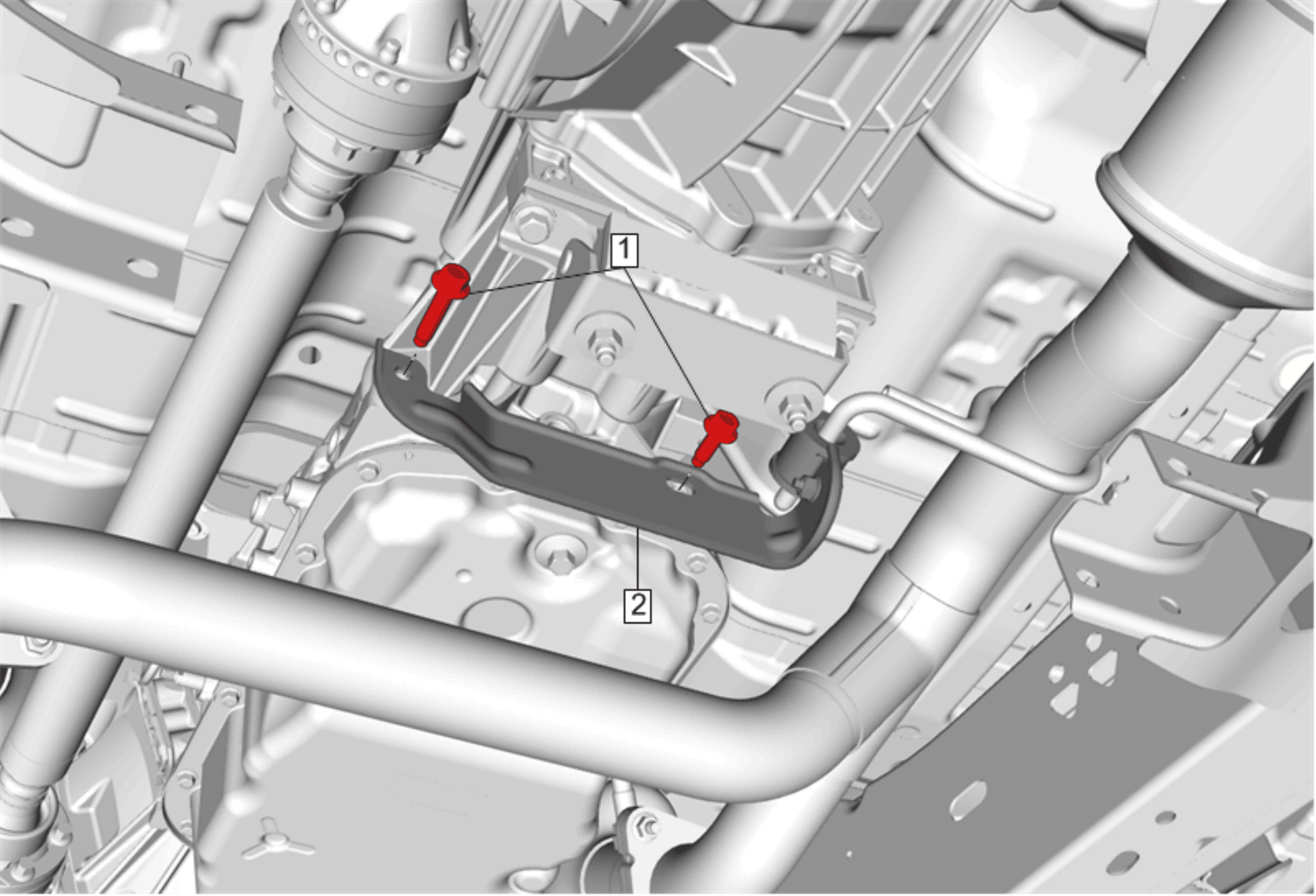

Fig 1: Exhaust System Insulator, Hanger, Bracket (LFX)
GM4170461Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedure Lifting and Jacking the Vehicle
1 Exhaust Front Pipe Hanger Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Exhaust Front Pipe Hanger Bracket
Procedure
Clean and lubricate the exhaust isolators for ease of installation.
