Power, Ground, and Low Speed GMLAN

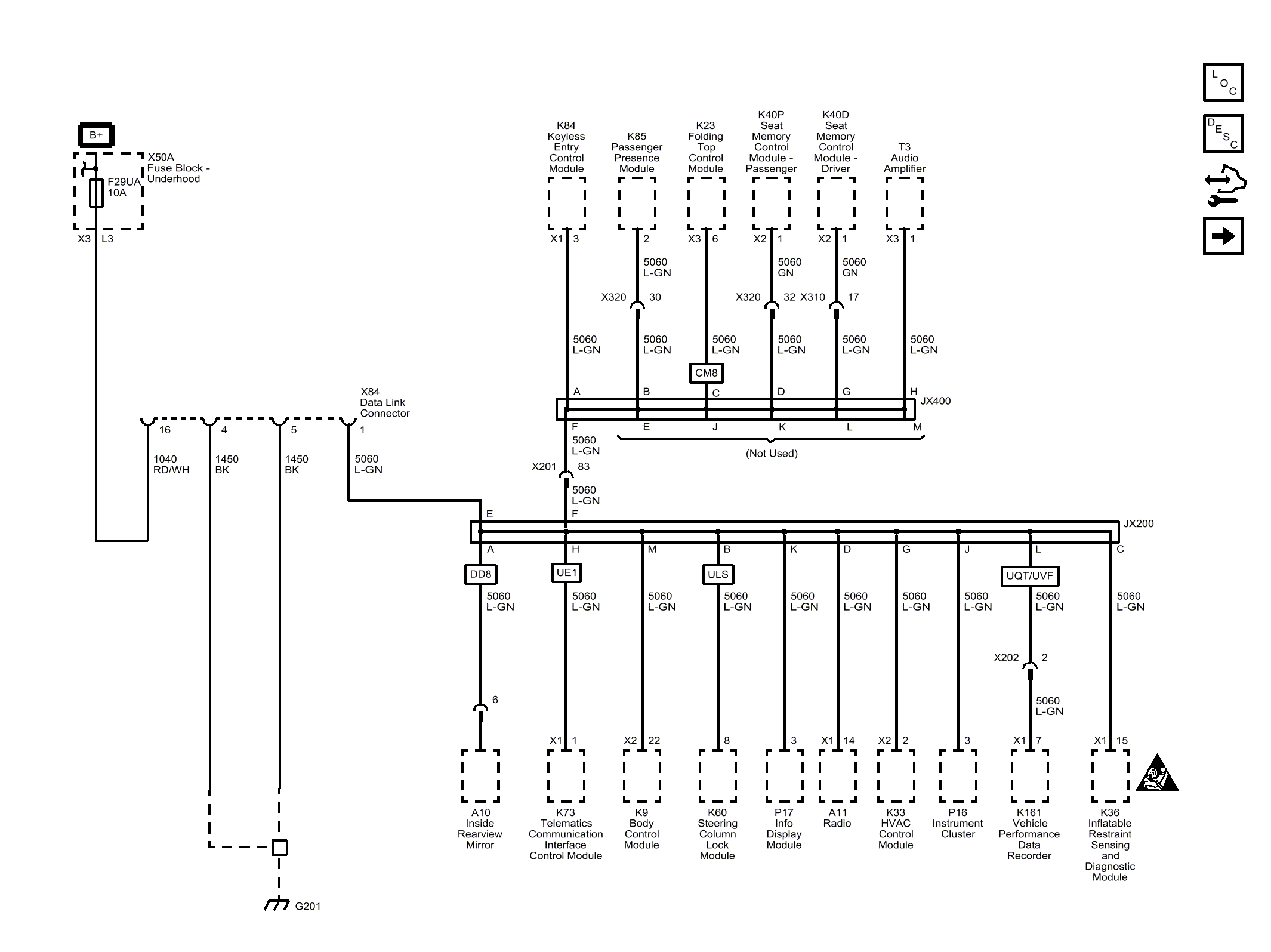

Fig 1: Power, Ground, and Low Speed GMLAN Wiring Diagram
GM3823320Courtesy of GENERAL MOTORS COMPANY
