Chassis High Speed GMLAN

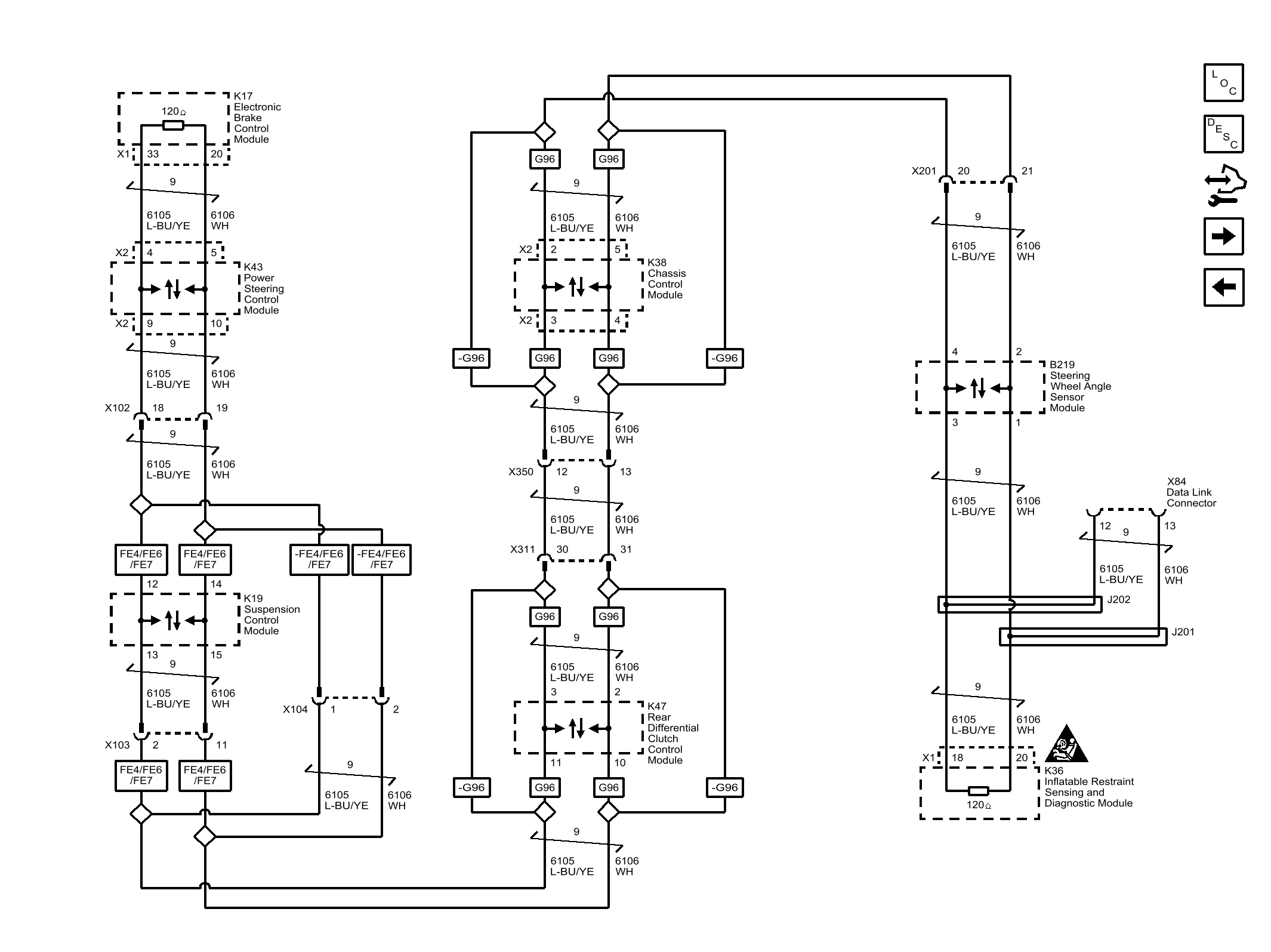

Fig 1: Chassis High Speed GMLAN Wiring Diagram
Courtesy of GENERAL MOTORS COMPANY
