MOST Communication Bus

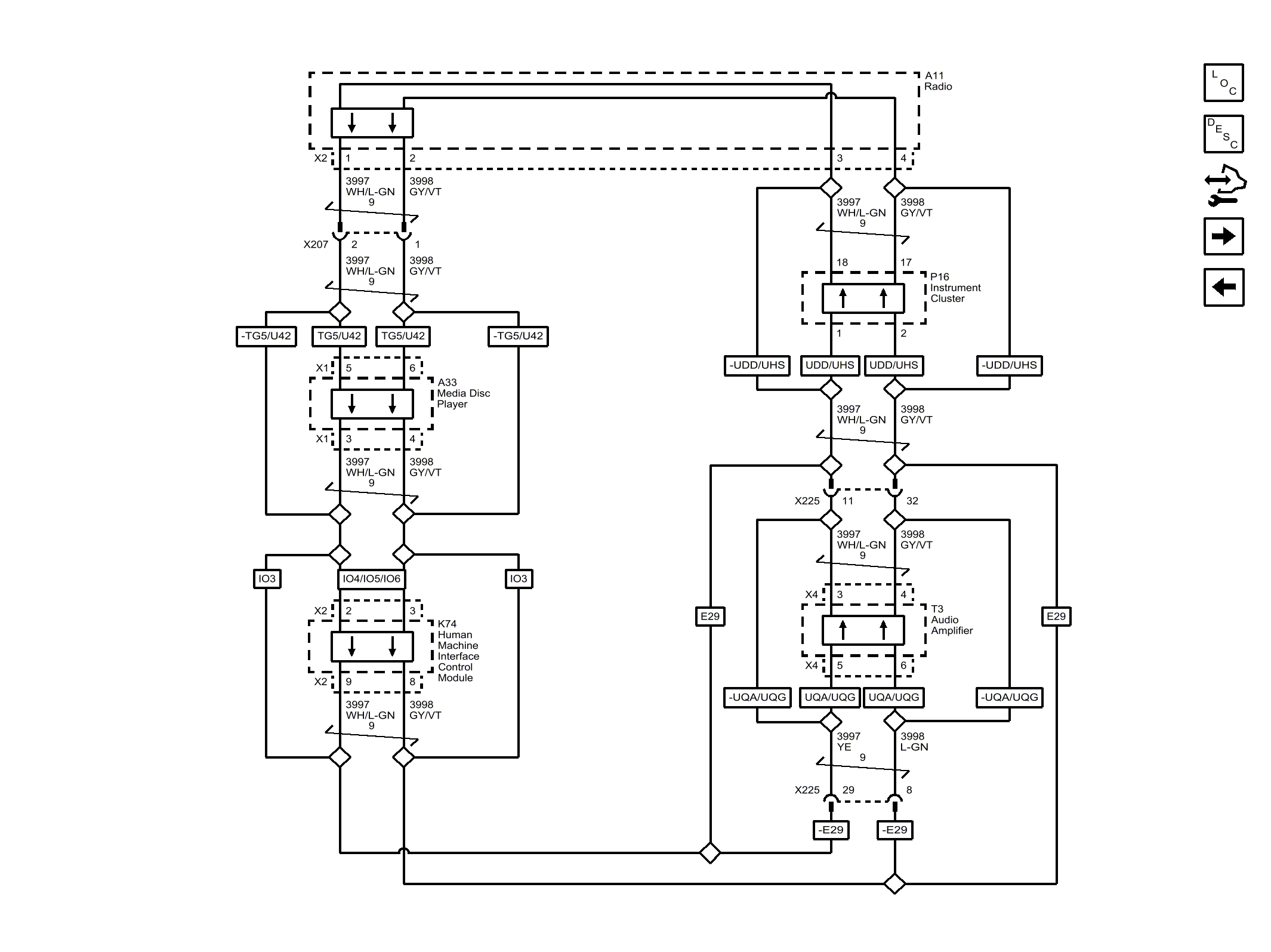

Fig 1: MOST Communication Bus
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
