MOST Communication Enable
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
MOST Communication Enable

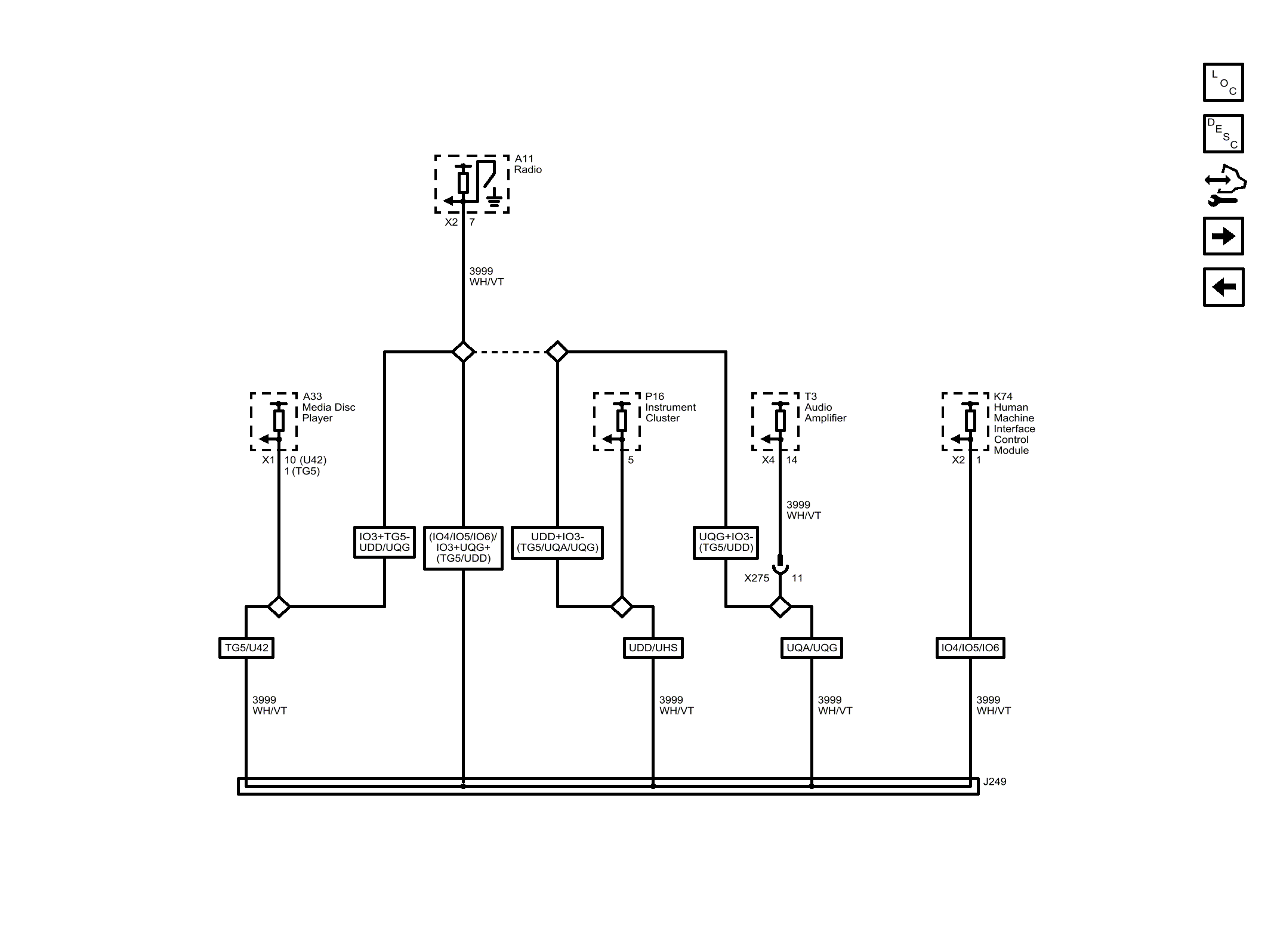

Fig 1: MOST Communication Enable
Courtesy of GENERAL MOTORS COMPANY
