Module Power, Ground and Subsystem References

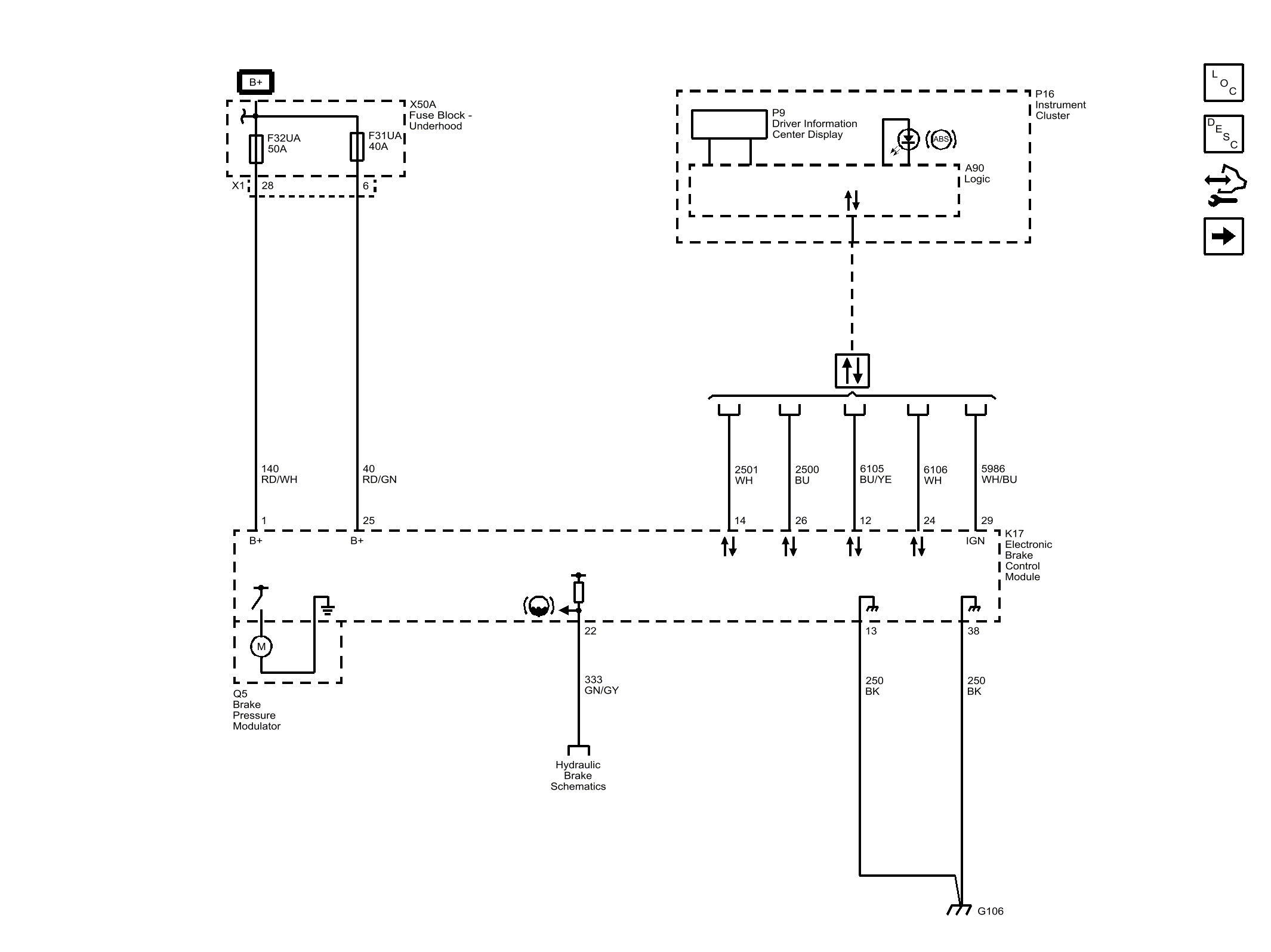

Fig 1: Module Power, Ground and Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
