Installation Procedure

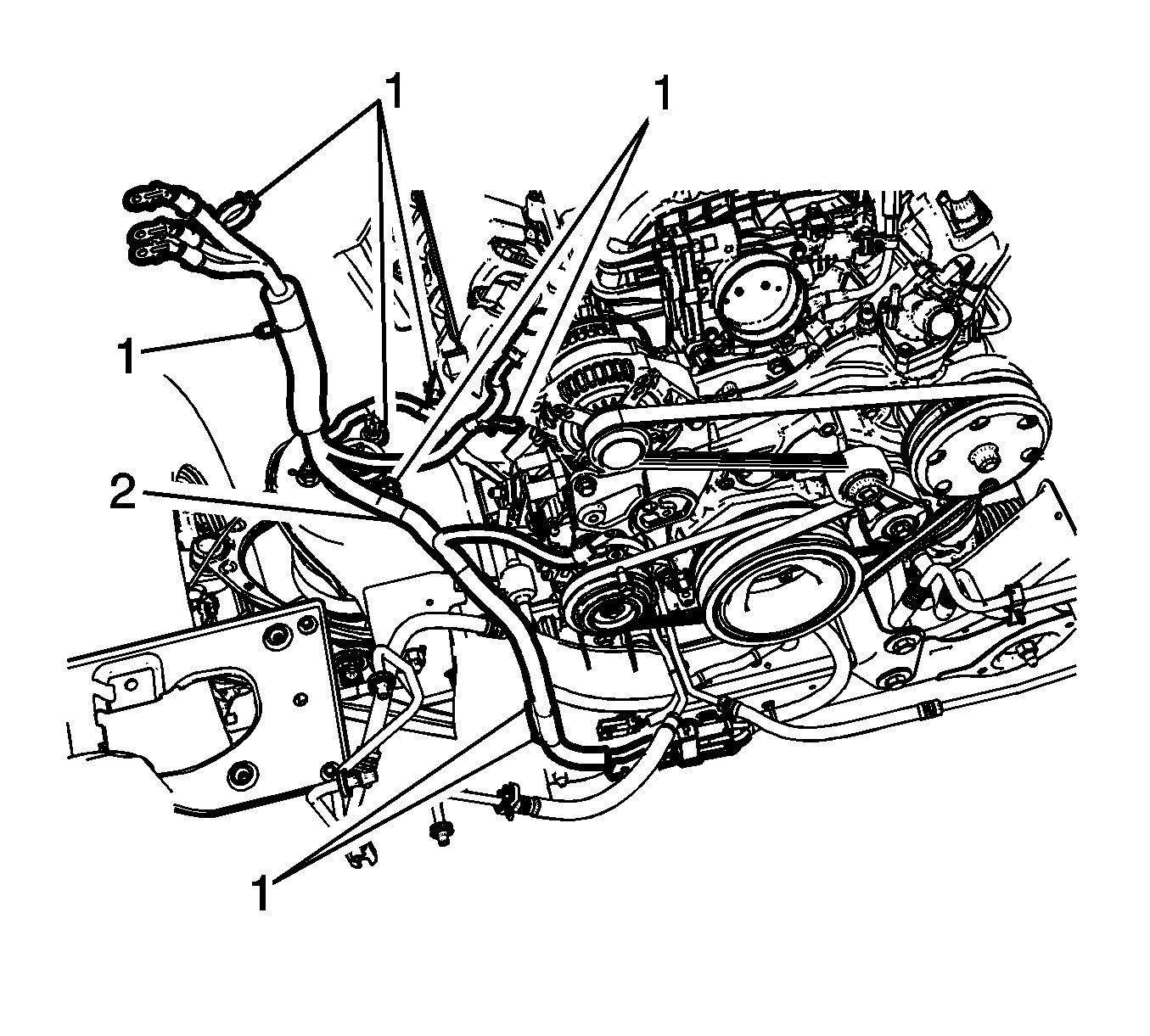

Fig 1: Generator Battery Control Wiring Harness Retainers And Generator Battery Control Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Attach the generator battery control wiring harness (2), to the engine compartment, with the retainers (1).

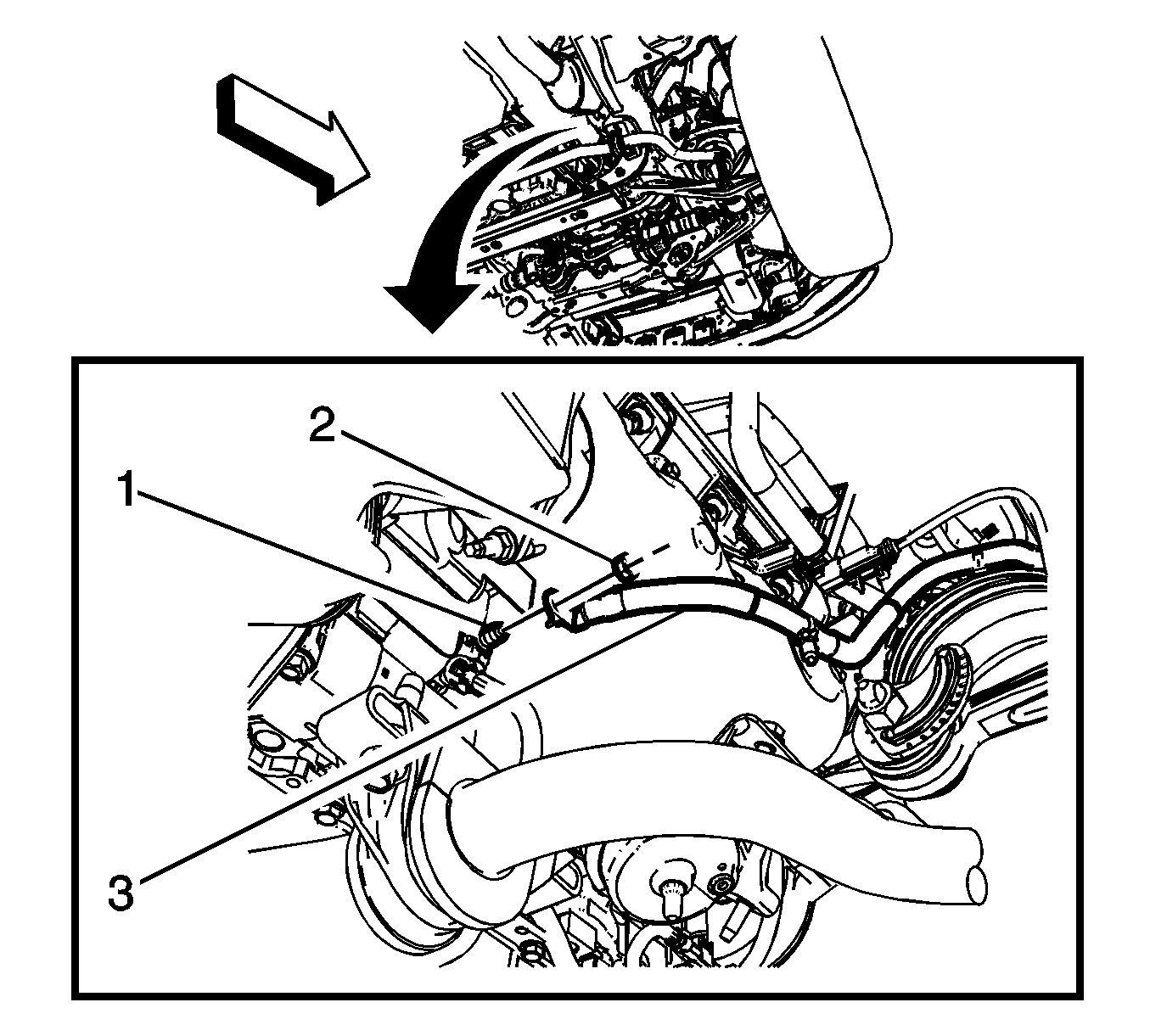

Fig 2: Generator Battery Control Wiring Harness Cable Fastener And Starter Stud

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the generator battery control wiring harness cable (3) to the starter stud (1) and tighten the fastener (2) to 9 N.m (80 lb in).

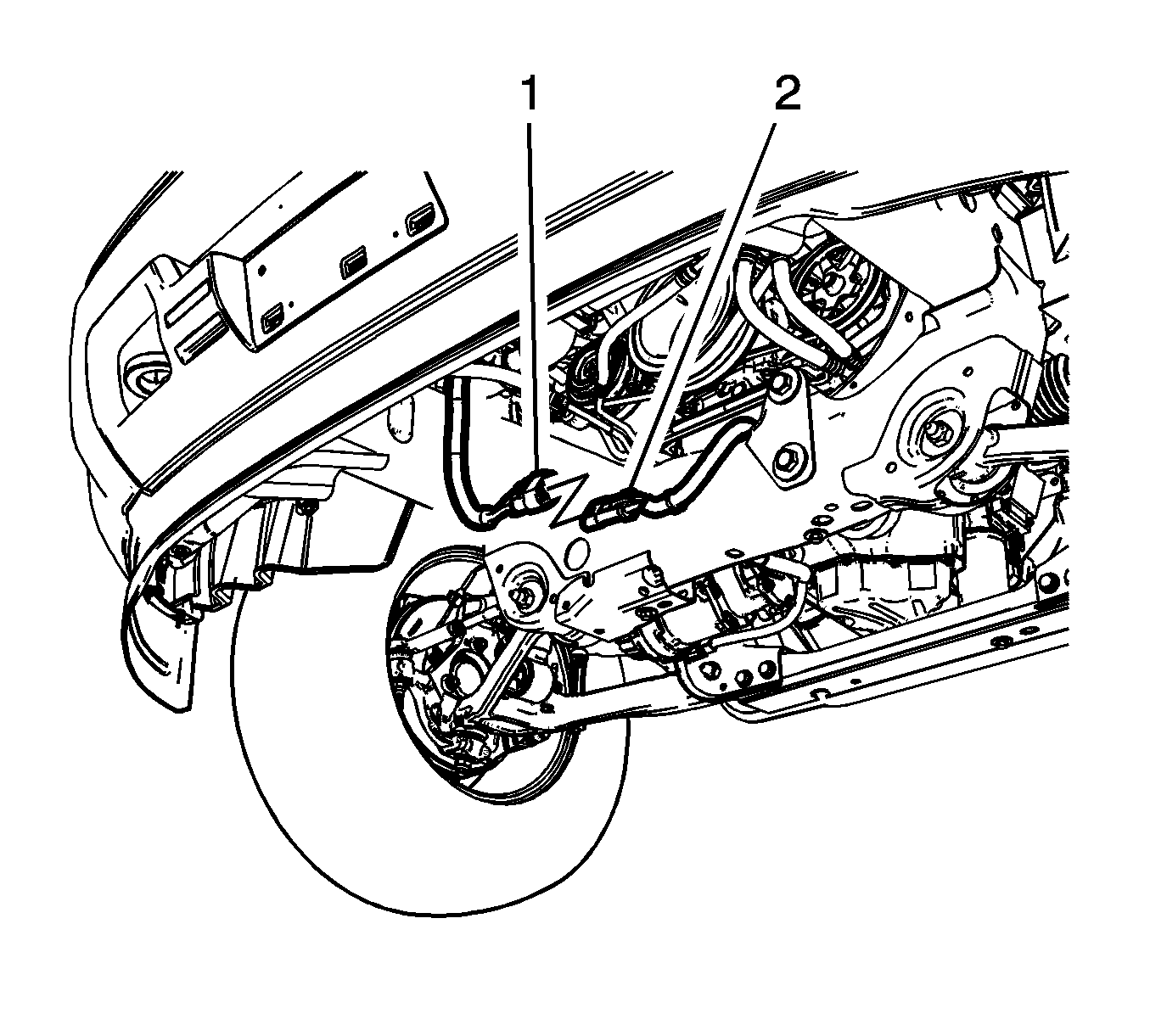

Fig 3: Electronic Power Steering (EPS) Connector And Generator Battery Control Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Connect the generator battery control wiring harness connector (1) to the EPS connector (2).
Install the steering gear skid shield. Refer to Steering Gear Skid Shield Replacement .

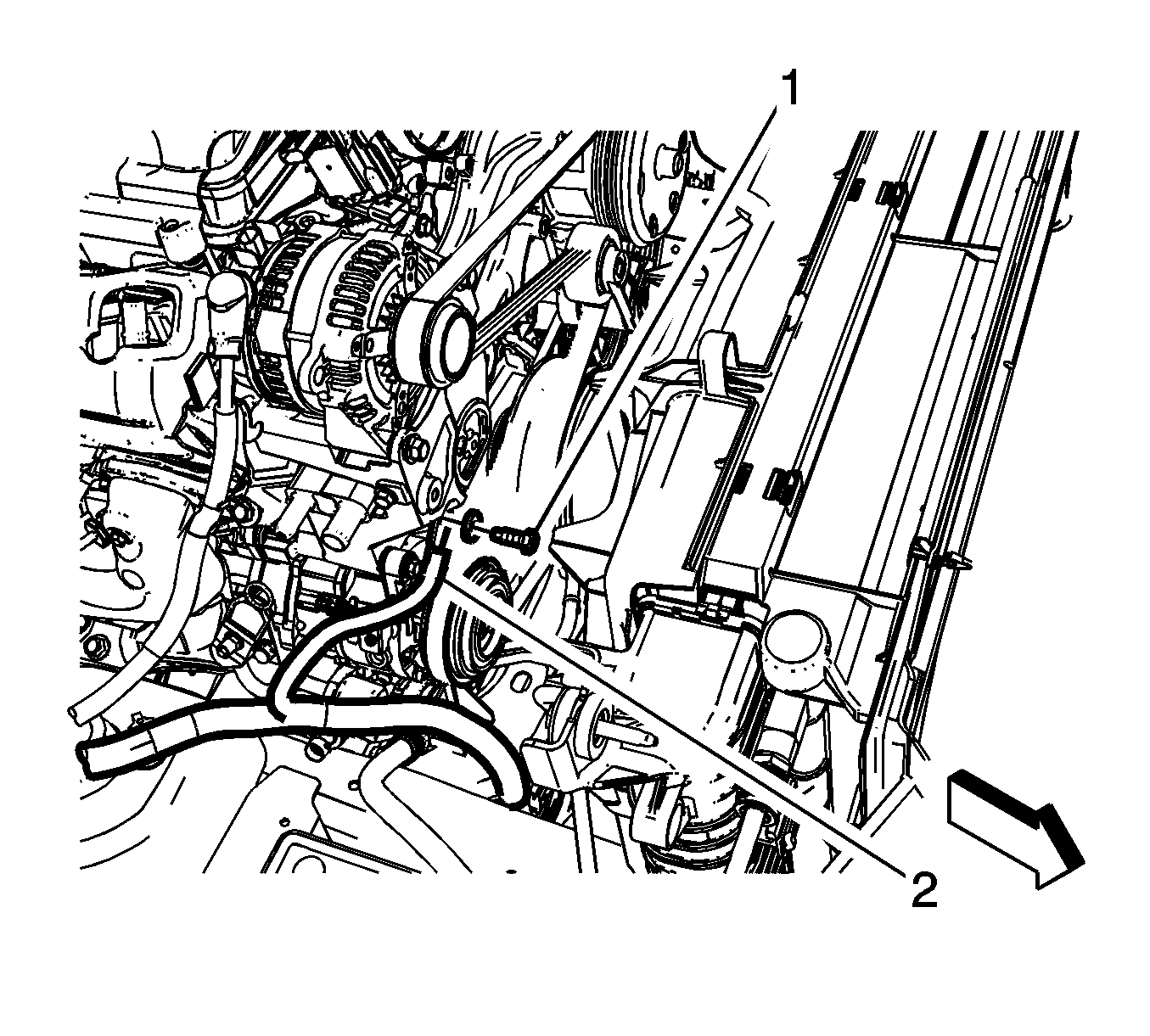

Fig 4: Generator Battery Control Wiring Harness Ground Fastener

Courtesy of GENERAL MOTORS COMPANY

Install the generator battery control wiring harness ground terminal (2), to the front of the engine block, and tighten the fastener (1) to 45 N.m (33 lb ft).

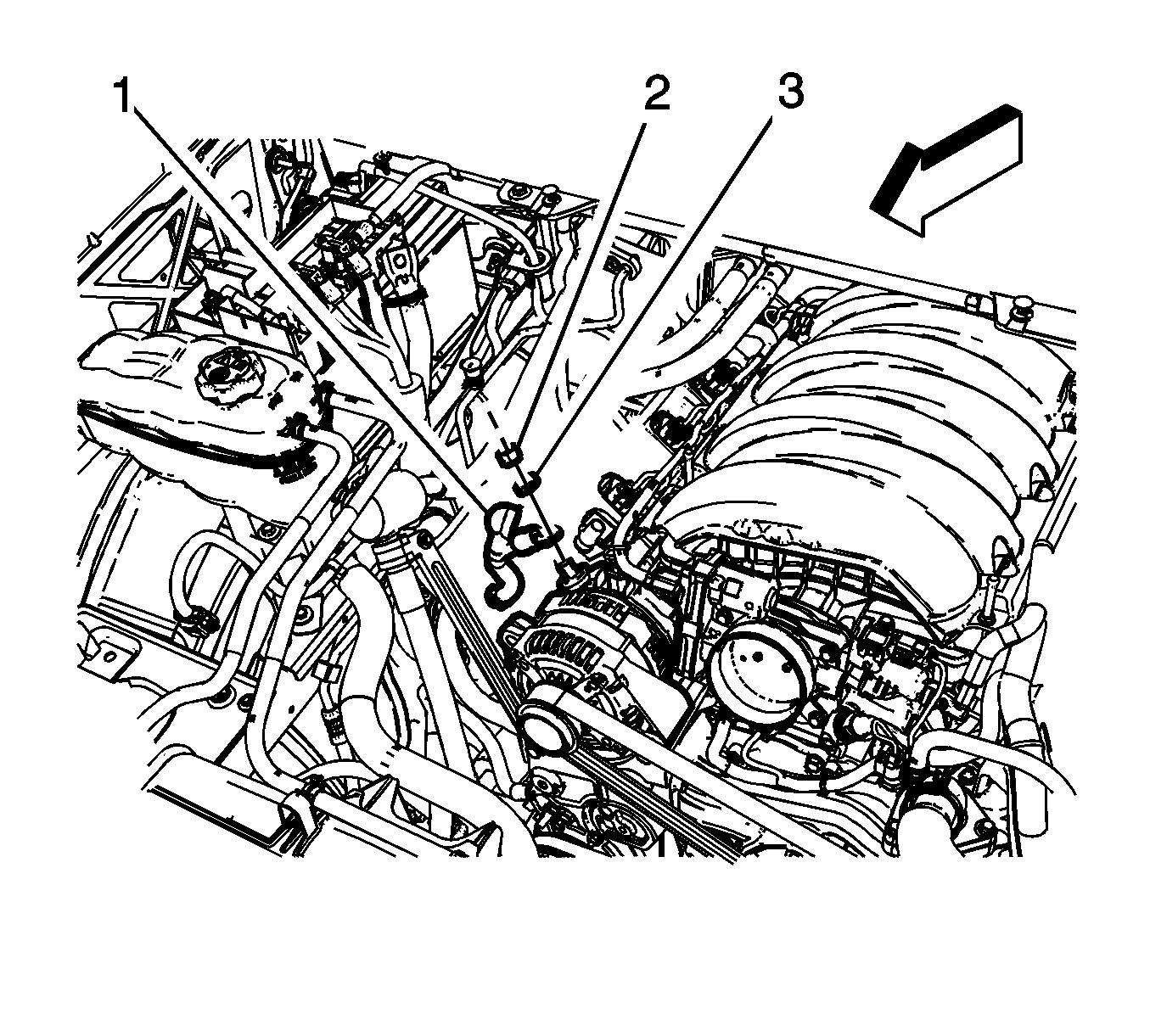

Fig 5: Generator Battery Positive Cable Protective Boot

Courtesy of GENERAL MOTORS COMPANY

Install the generator battery control wiring harness terminal (3) to the generator B + stud and tighten the fastener (2) to 12 N.m (106 lb in).
Install the generator stud protective boot (1).

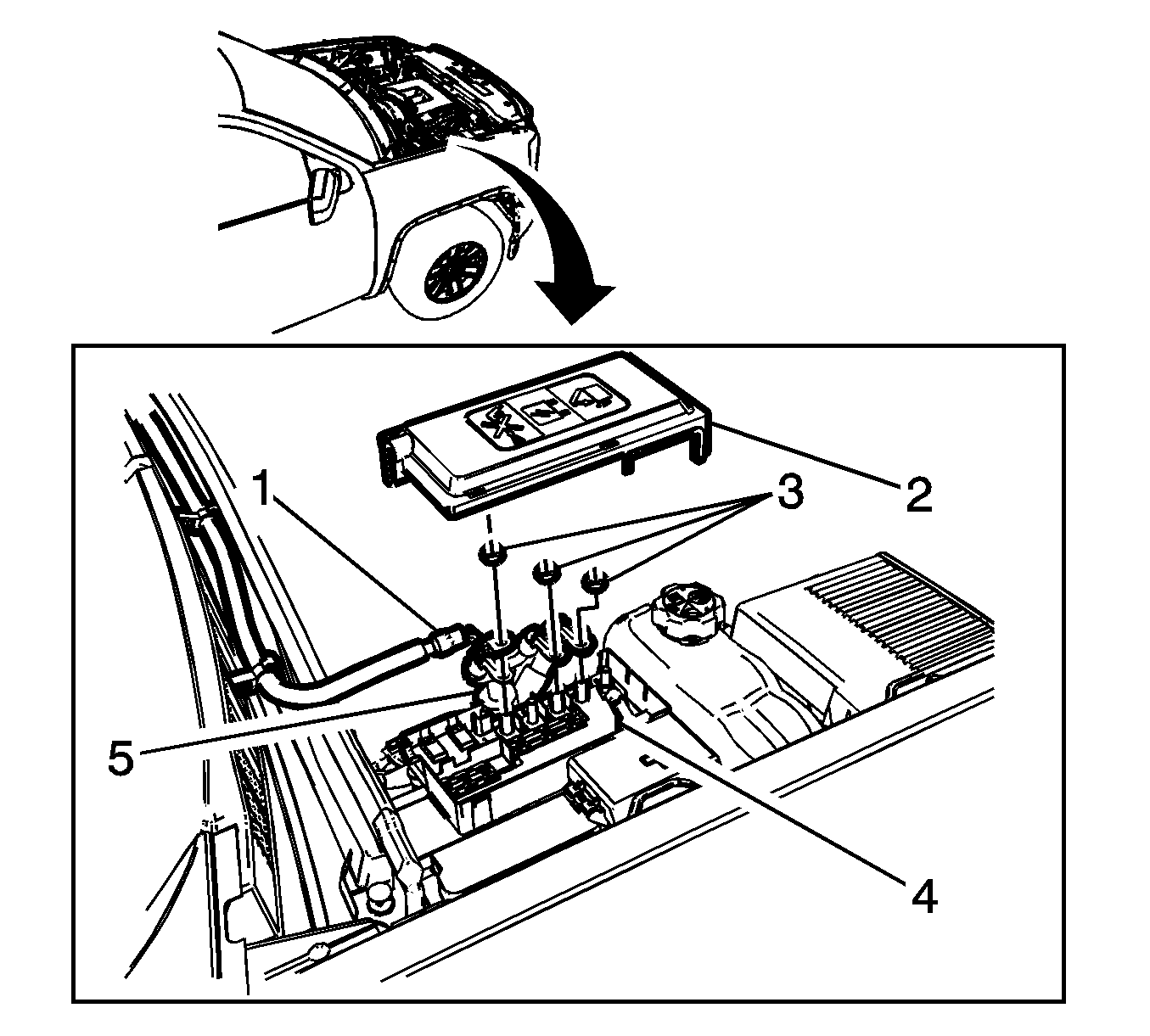

Fig 6: Fuse Battery Distribution Unit Engine Compartment Block Cover

Courtesy of GENERAL MOTORS COMPANY

Install the generator battery control wiring harness terminals (5) to the battery fuse block (4).
Install the battery positive cable (1) to the battery fuse block and tighten the fasteners (3) to 12 N.m (106 lb in).
Install the battery fuse block cover (2).
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery) .
