Subsystem References (Trax, page 2 of 5)

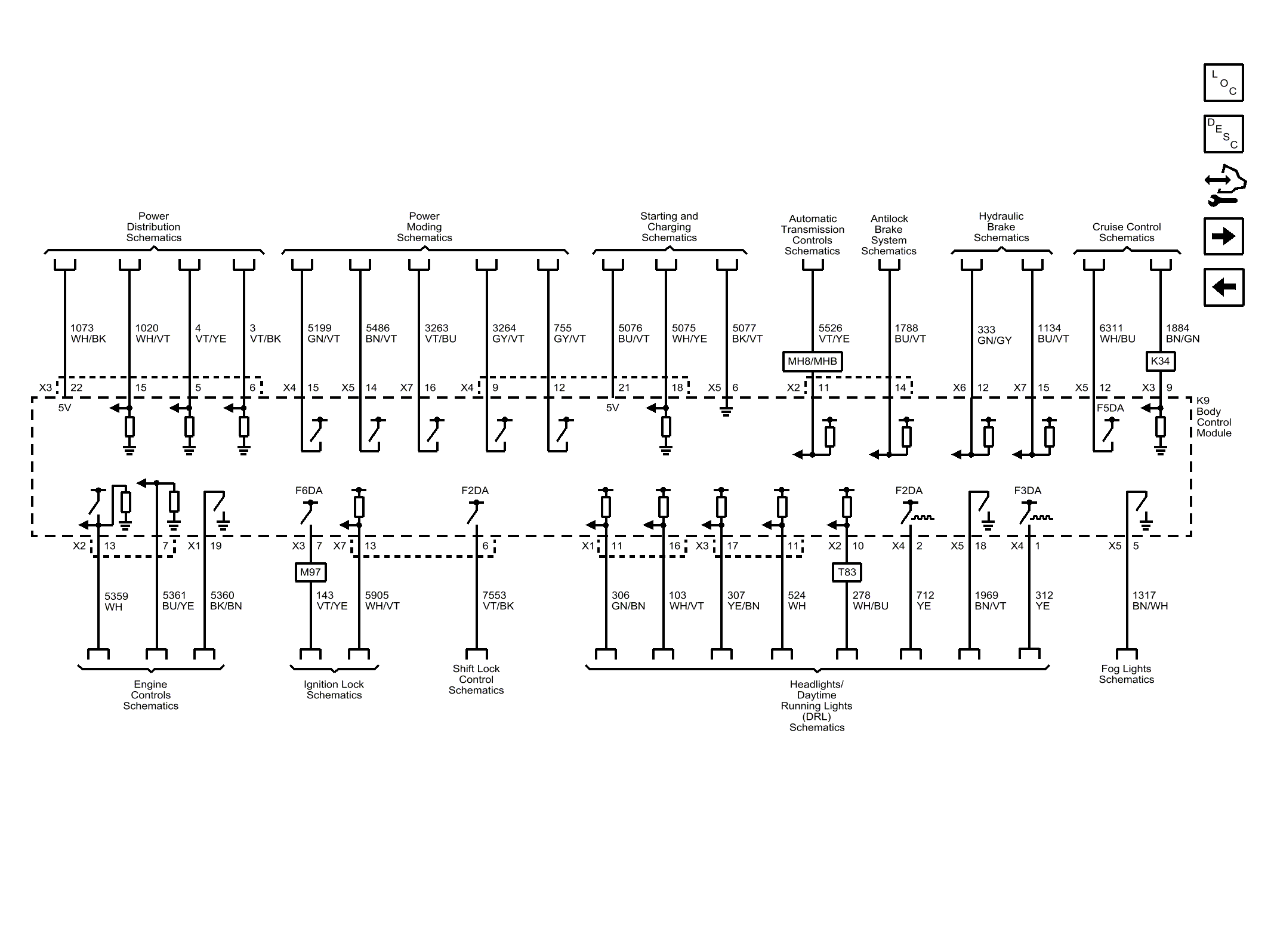

Fig 1: Subsystem References (Trax, page 2 of 5)
GM3695480Courtesy of GENERAL MOTORS COMPANY
