Info Display
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Info Display

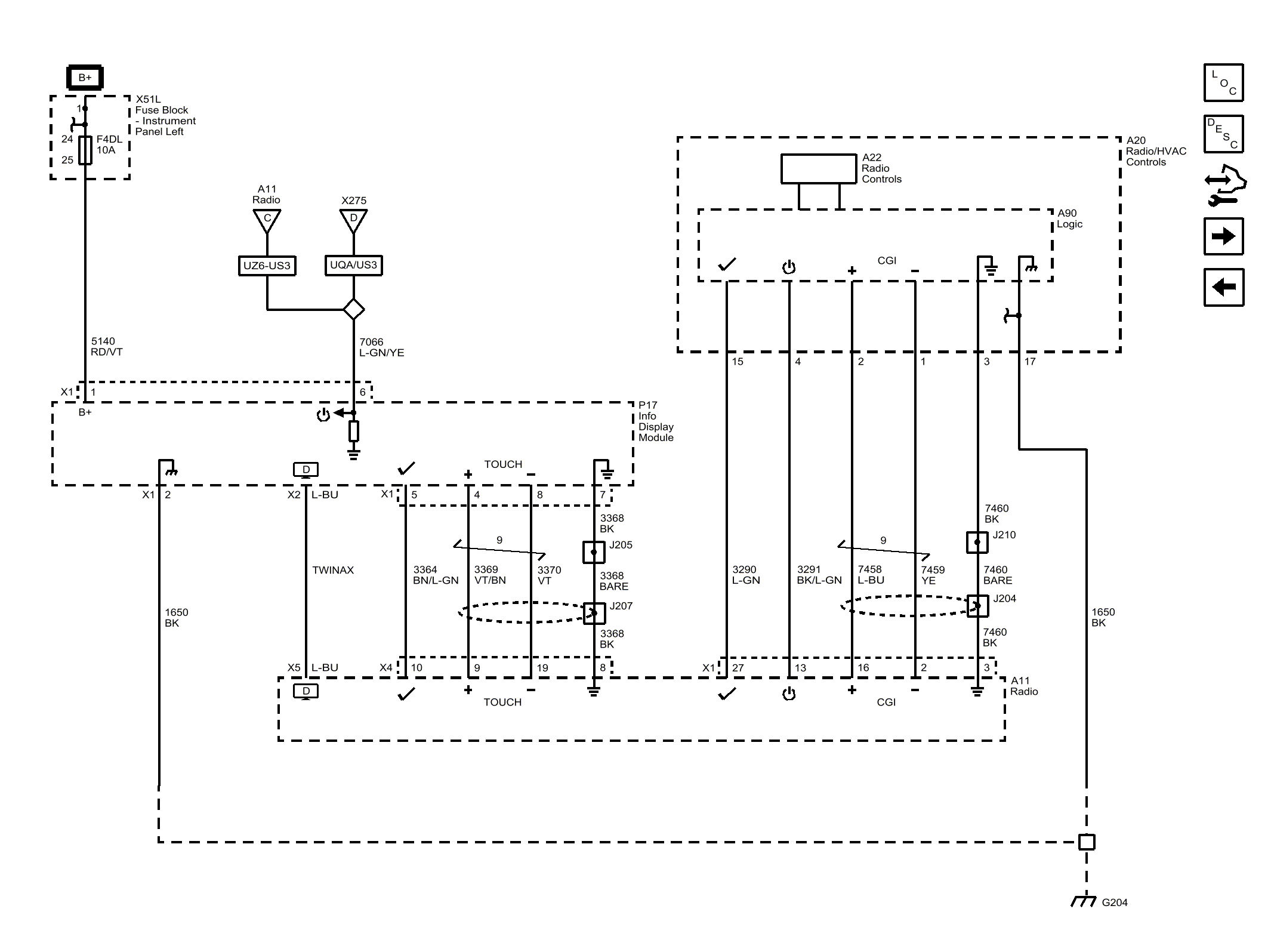

Fig 1: Info Display
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
