Installation Procedure

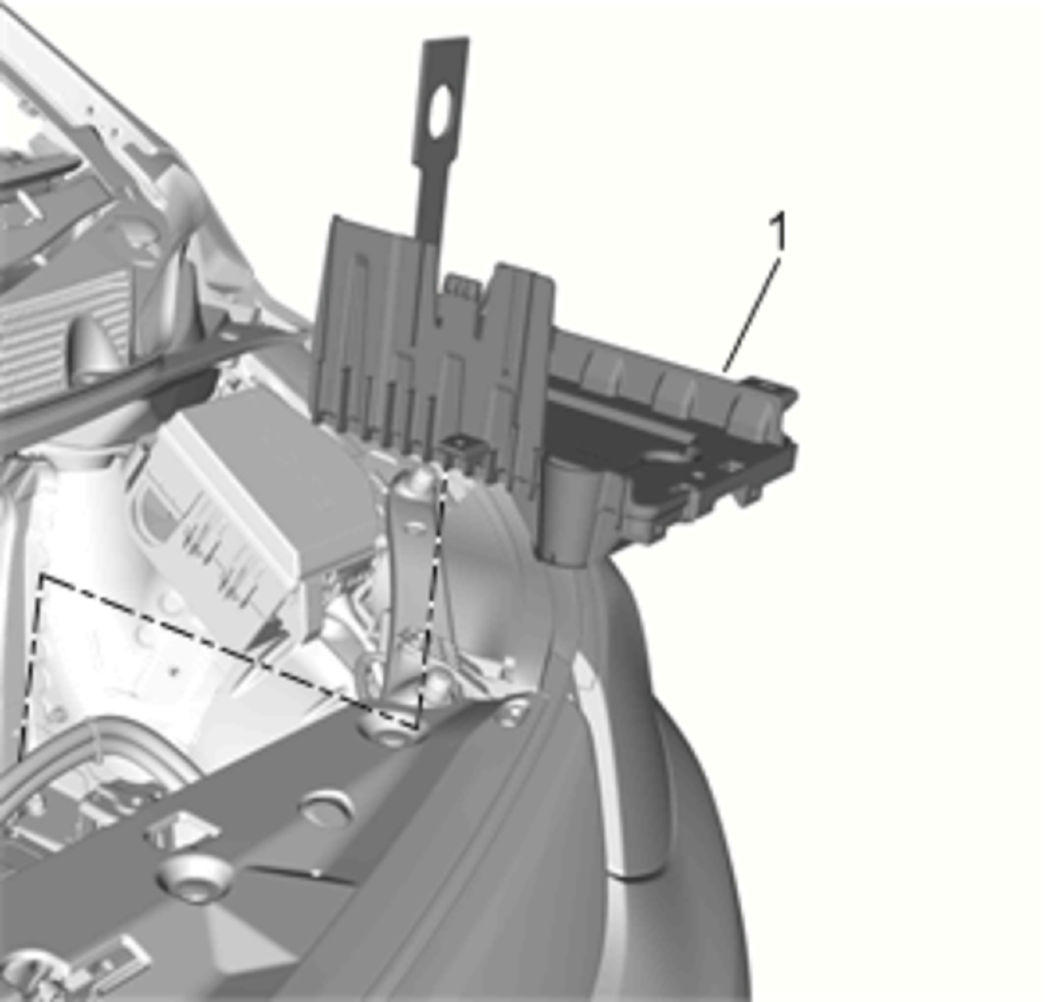

    Fig 1: Battery Tray
    GM4546934Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Tray (1)

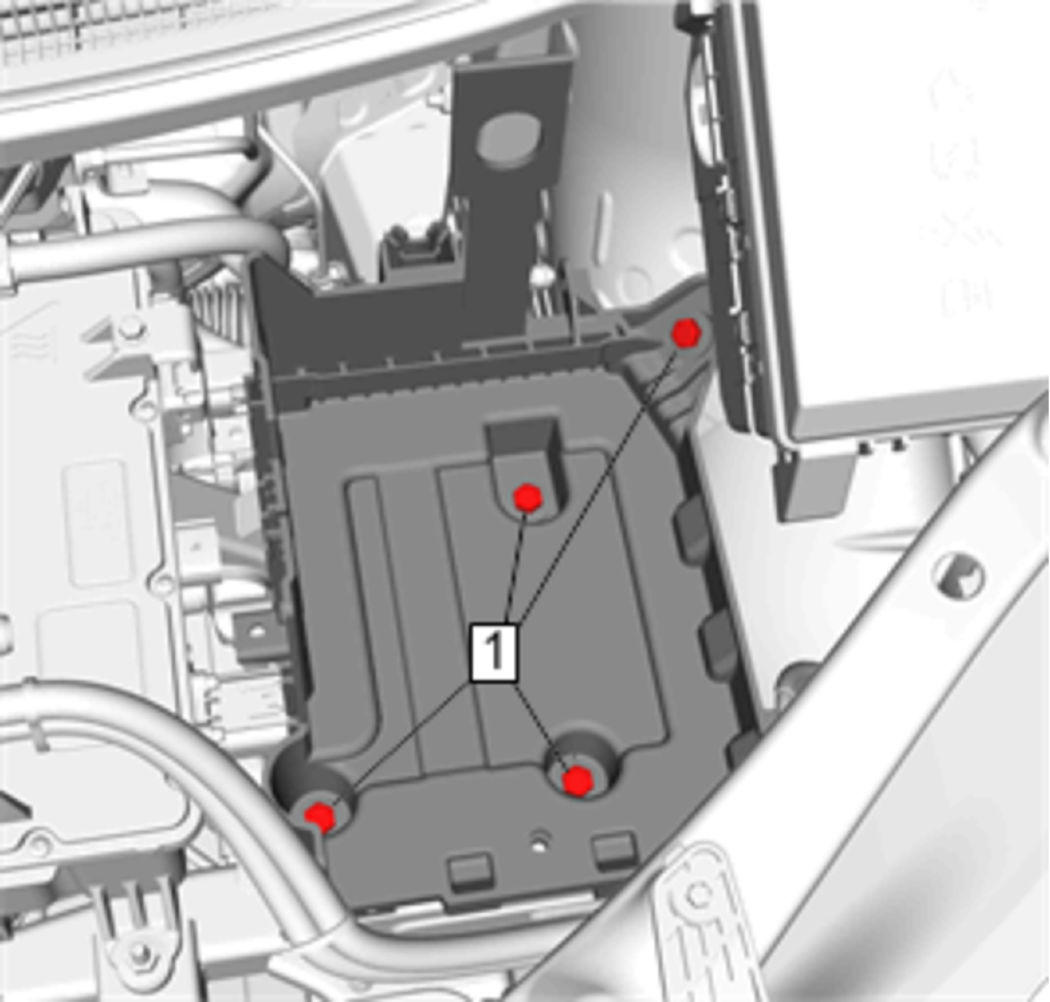

    2. Fig 2: Battery Tray Bolt
    GM4546933Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Battery Tray Bolt (1) and tighten 11.5 N.m (102 lb in)

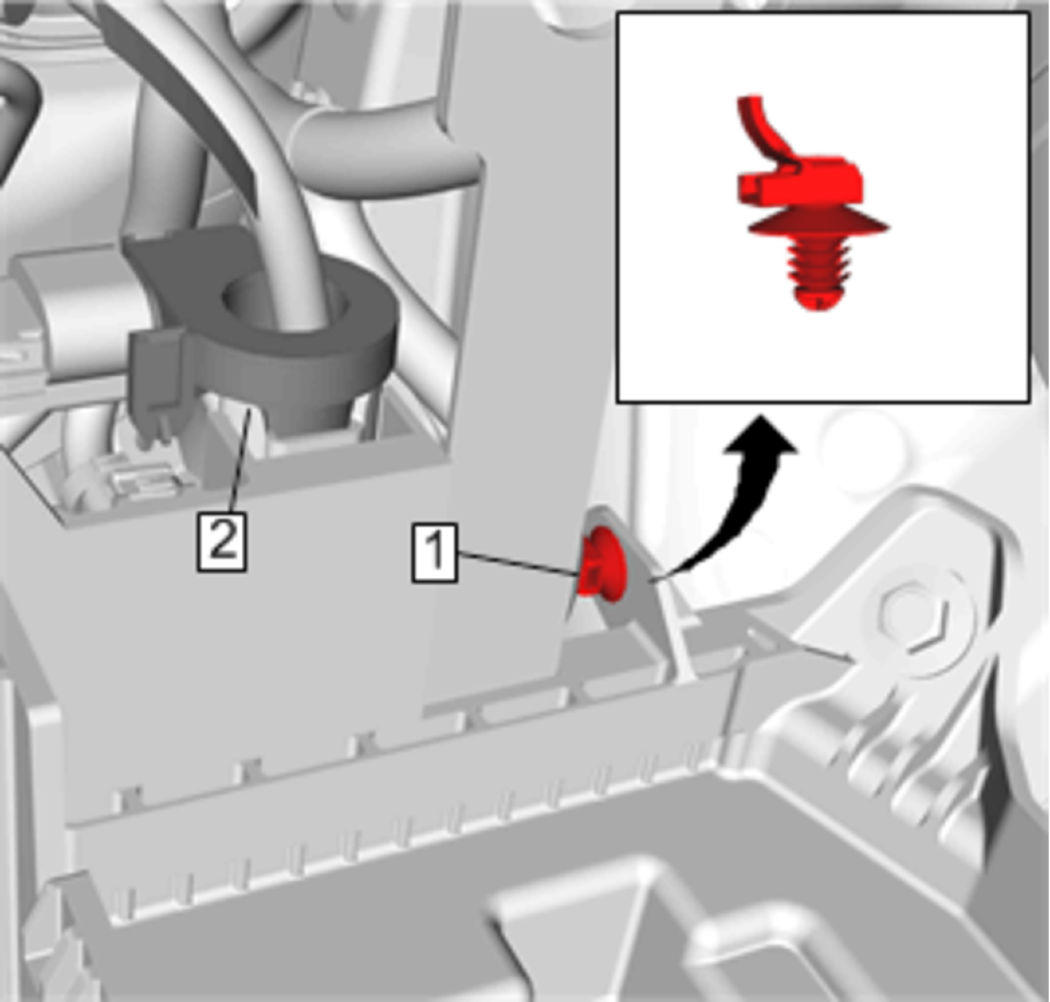

    3. Fig 3: Body Harness Retainer
    GM4546932Courtesy of GENERAL MOTORS COMPANY
  3. Attach {If equipped} Body Harness Retainer (1) @ Battery Tray
  4. Install Battery Current Sensor (2) @ Battery Tray

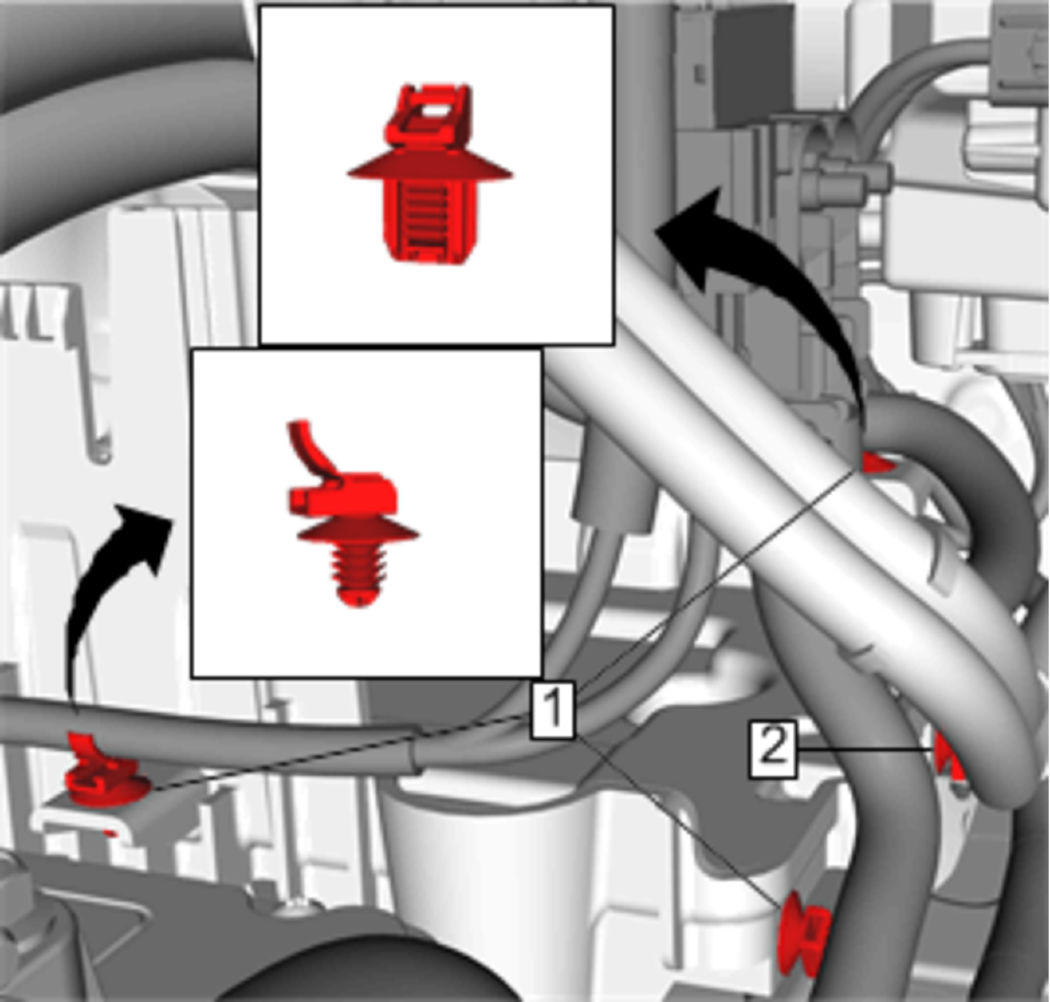

    5. Fig 4: Battery Positive Cable Retainer
    GM4546931Courtesy of GENERAL MOTORS COMPANY
  5. Attach Battery Positive Cable Retainer (1) @ Battery Tray
  6. Attach {If equipped} Drive Motor Battery Charger Receptacle Retainer (2) @ Battery Tray

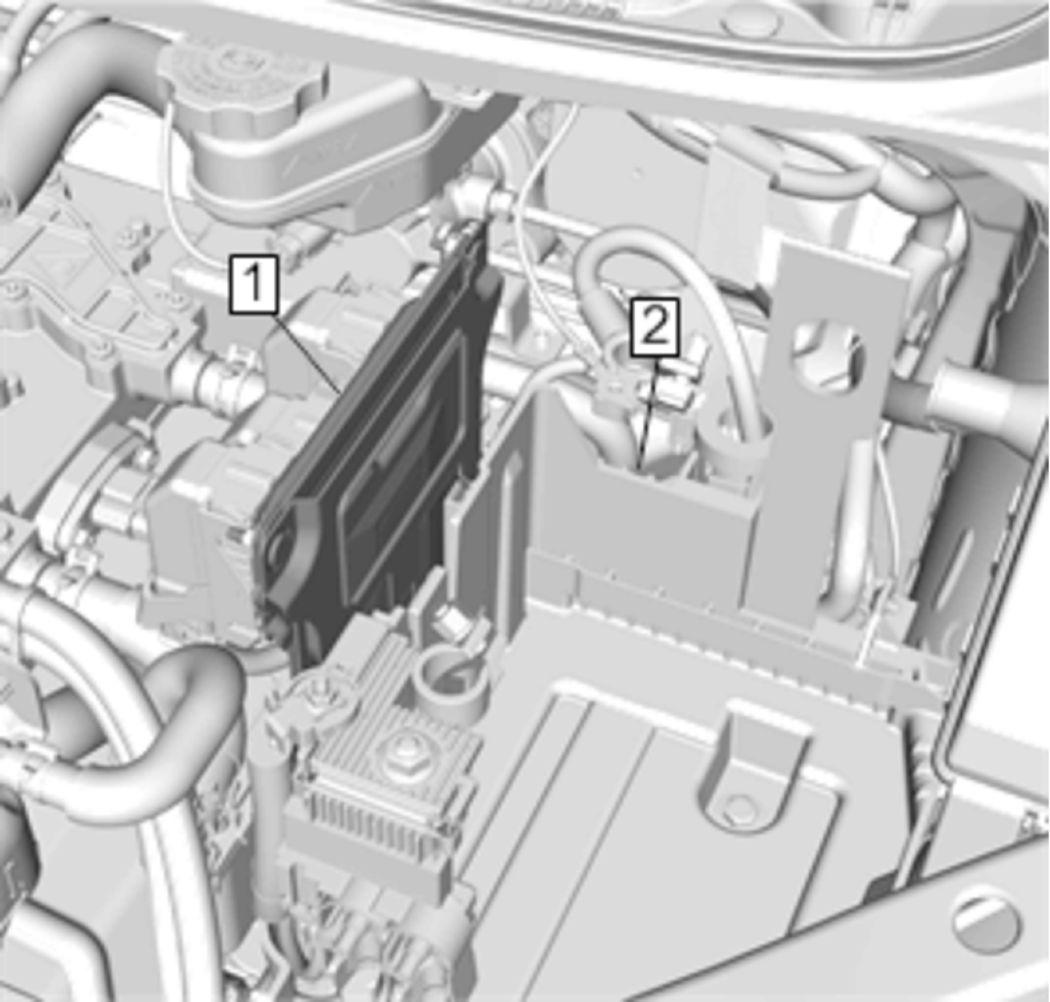

    7. Fig 5: Engine Control Module
    GM4546930Courtesy of GENERAL MOTORS COMPANY
  7. Attach Engine Control Module (1) @ Battery Tray (2)
  8. Install the battery. Battery Replacement
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
