Accelerator Pedal Assembly Replacement

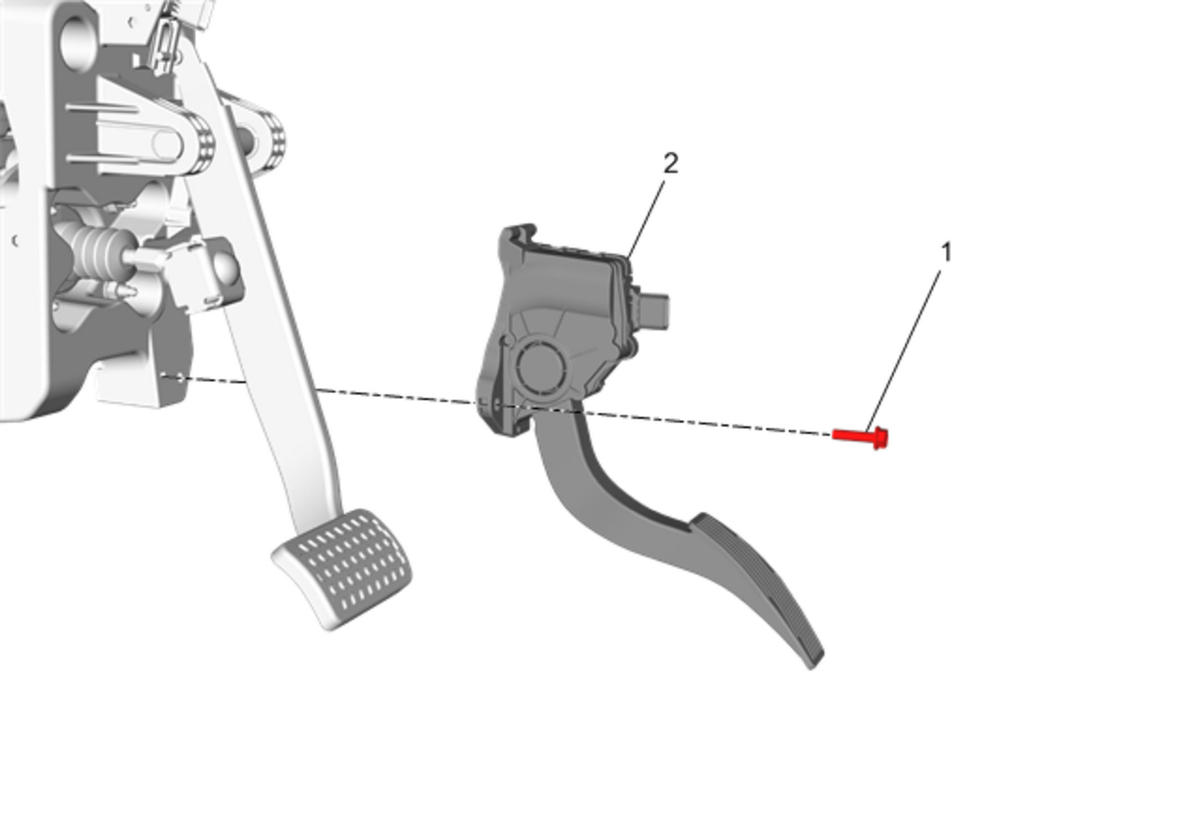

Fig 1: Accelerator Pedal Assembly
GM4544187Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Accelerator Pedal Pad Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Accelerator Pedal Assembly
Procedure
Disconnect the electrical connector.
